LED indicator panel
The M1 indicator panel provides system status via orange, green
and red illumination in various stages of solid or flashing.
eg. The GPS icon flashes green momentarily when a fix is
acquired and returns to solid green after a few seconds.
The VHF icon indicates VHF, AIS and DSC as these functions are
all connected to the same AIS/VHF antenna.
Power ON is indicated with white light.
See M1 LED icon troubleshooting (pg36).
1 WiFi Antenna port
2 GPS Antenna port
3 Cellular Antenna port
7 NMEA 2000 port
8 Input / Output port
(NMEA 0183 and GPIO
sensors)
2
4 DC Power Supply
(12V or 24V DC)
5 Auxiliary VHF port
6 VHF Antenna
1 3
4 5 6
9 Audio port
(External Speaker)
987

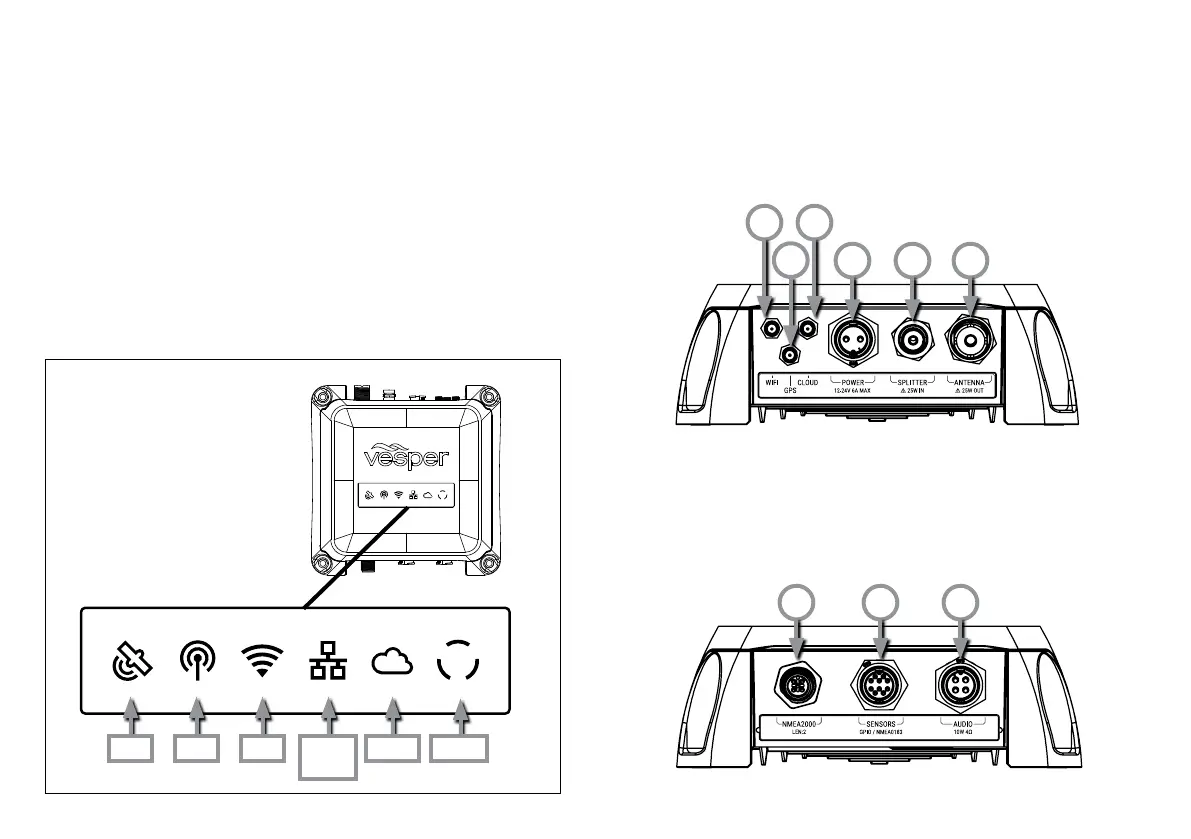

M1 port locations
GPS VHF WiFi NMEA
2000
PowerCloud
