Service Manual Indicator JIK-6 Page 23

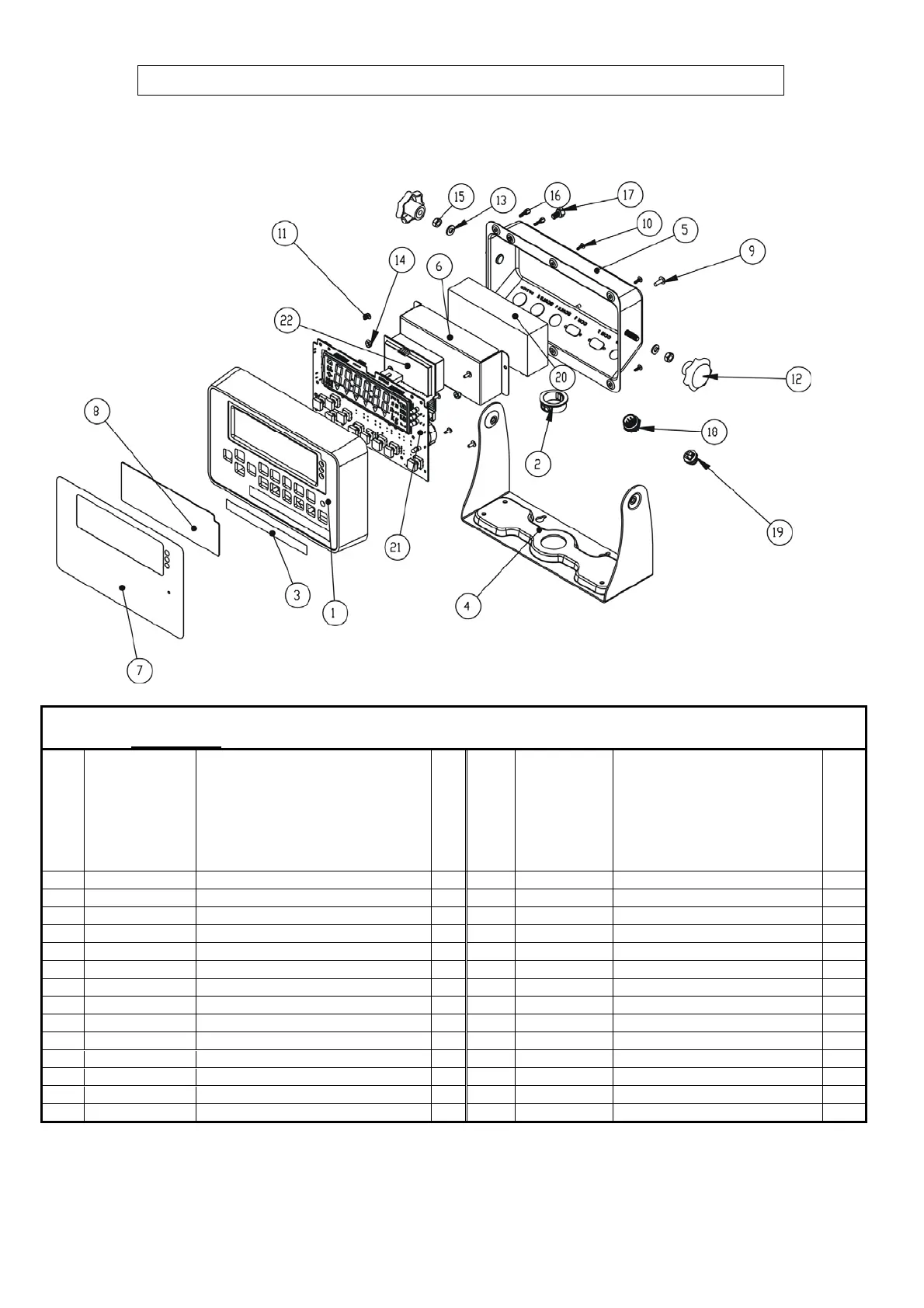

Chapter VI Exploded Drawing and Cross-reference List of Parts
6-1 JIK- 6CAB
Exploded Drawing and Cross-reference List of Parts
JIK- 6CAB
Material No.
Description
Qty.
tem
Material No.
escription
Qty.
1 02-0000-2400 Plastic Upper Cover (A.B.S) 1 15 31-0100-0002
ut (M6) 2
2 02-0107-0010 Snap Bushing 1 16 31-0404-0000 Seal Screw M3 2
3 03-0902-2420 JBJP Label 1 17 31-0404-0010 Seal Screw M6 1
4 11-0001-2400 Supporter (JIK) 1 18 60-0402-0100 Metal Connector (5pin,male) 1
5 11-0101-2400 Indicator Bottom (6H) 1 19 61-0402-0710 DC power Assembled Cable 1
6 11-0604-2400 Iron Sheet 1 20 61-0202-0100 Rechargeable Battery,6V/3Ah 1
7 20-0924-0100 JIK-6CA Panel Sheet (EN) 1 21 80-0024-0100 Assembled PCB (JIK-DPC(A)01) 1
8 20-0924-5000 PC Sheet (JIK_LCD) 1 22 80-0024-2100 Assembled PCB (JIK-AD(A)01) 1
9 30-0300-0005 Button Head Screw (M4*12mm) 1
10 30-0300-0300 Button Head Screw (M3*10L) 5
11 30-0602-0001 Self-tapping Screw (M3*8mm) 5
12 30-1000-0000 Hand Knobs M6 2
13 31-0001-0000 Spring Washer (M6) 2
14 31-0100-0001 Nut (M4) 3
To Next Page
