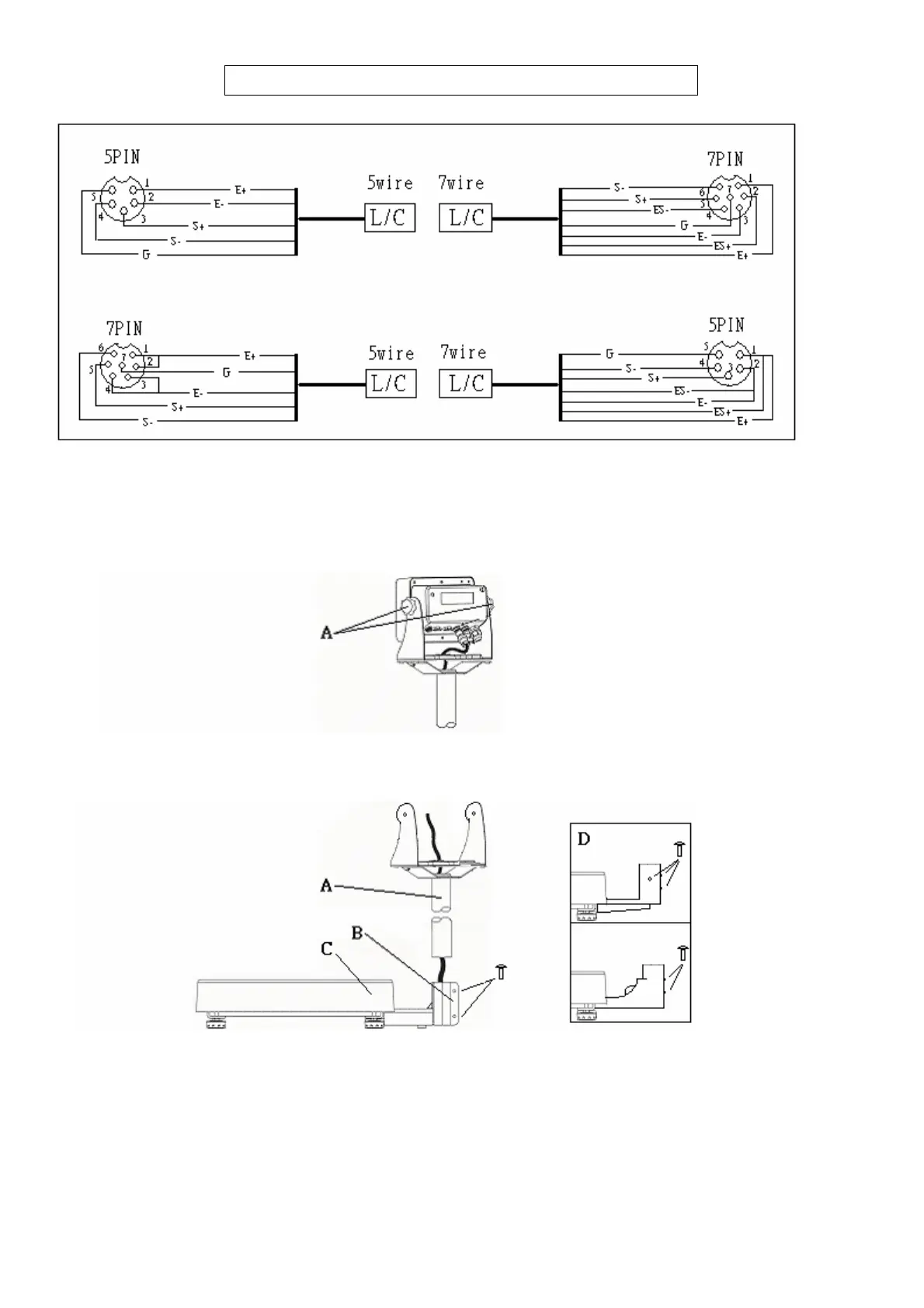

Service Manual Indicator JIK-6 Page 20
Chapter V Structural Part of Platform Scale
5-1 Connection of Metal Connectors
5-2 L/C Replacement Process
1. Please remove L/C or additional function connection lines by use of a smaller-sized flat head screwdriver
with reference to “Various Assemblies and Relevant Illustrations-Back Cover Assembly and Disassembly
and Wiring Cross-reference Chart” (for non-waterproof type, directly remove the metal connector and
other external connectors), then take out the fixing knob (Fig. I “A”) in order to remove the display head.
(Fig. I)
2. Unscrew the retaining screws of erecting pole (Fig. II “B or D”), then remove the erecting pole (Fig. II
“A”) and weighing pan (Fig. II “C”).
(Fig. II)
3. Exploded Drawing of Structure (Reference Drawing)
To Next Page
