1 Oil filler cap
2 Raw water inlet ø 20 mm
3 Raw water pump
4 Oil dipstick
5 Manual operation of fuel supply
pump
6 Oil filter
7 Water separator/fuel filter drain
plug
8 Water separator/Fuel filter
9 Connection for gearbox push-pull
cable
10 Fuse
11 Electrical system connector box
12 Fuel return pipe connection
ø 8mm
13 Air inlet silencer
14 Water separator/fuel filter air bleed
nipple
15 Manual operation of electric stop
16 Fuel supply pipe connection
ø 8mm
17 Fuel lift pump
18 Connection for throttle push-pull
cable

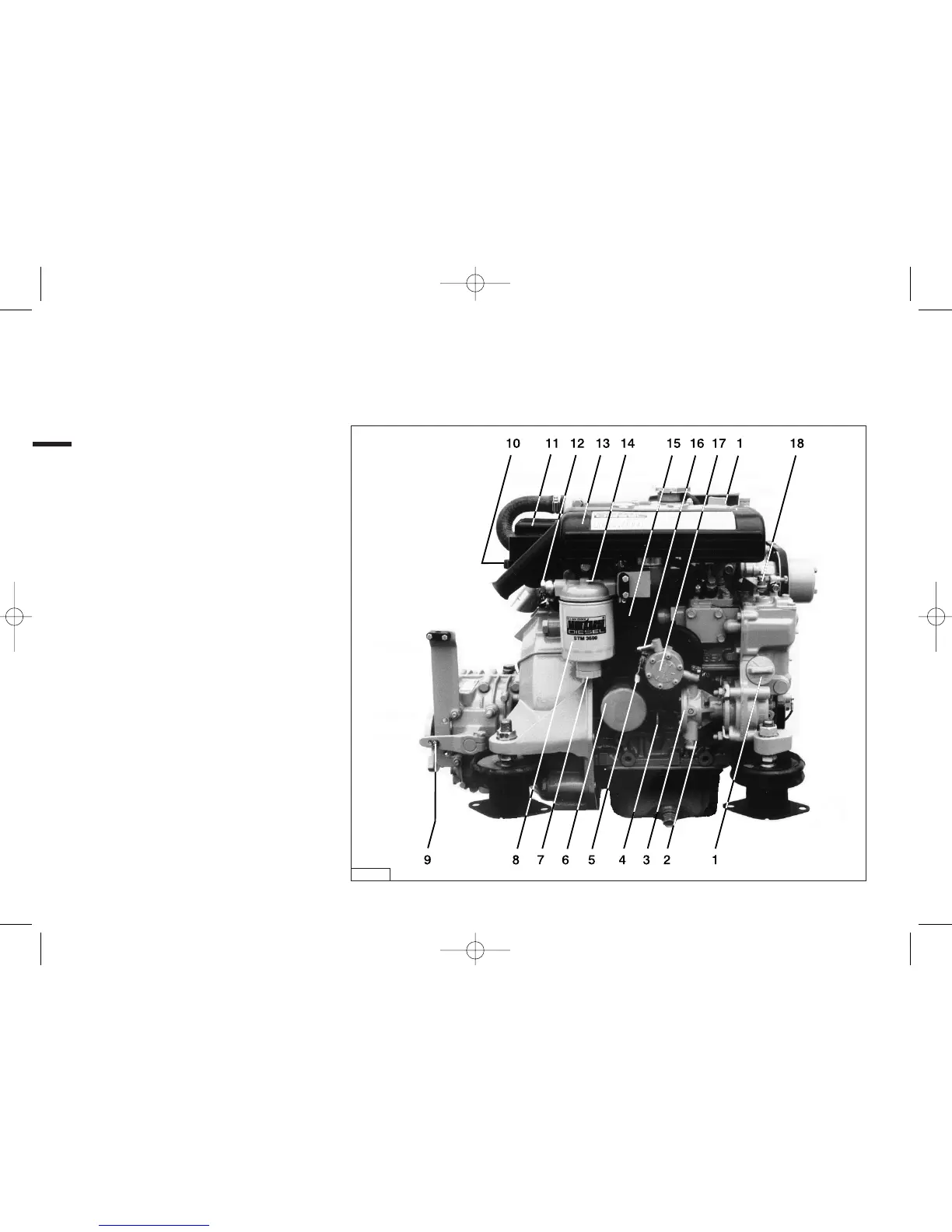

Engine description
Identification of engine parts
Service side
VD01028
M2.06
