9
2
19 Gearbox
20 Gearbox drain plug
21 Gearbox oil dipstick/filler cap
22 Starter motor
23 Alternator
24 V-belt
25 Connection for extra expansion
tank (Keel cooling model only)
26 Calorifier connection
27 Cooling system air bleed nipple
28 Filler cap for cooling system
29 Expansion tank
30 Heat exchanger
31 Cooling system drain plug
32 Airvent connection
33 Exhaust injection bend ø 40 mm

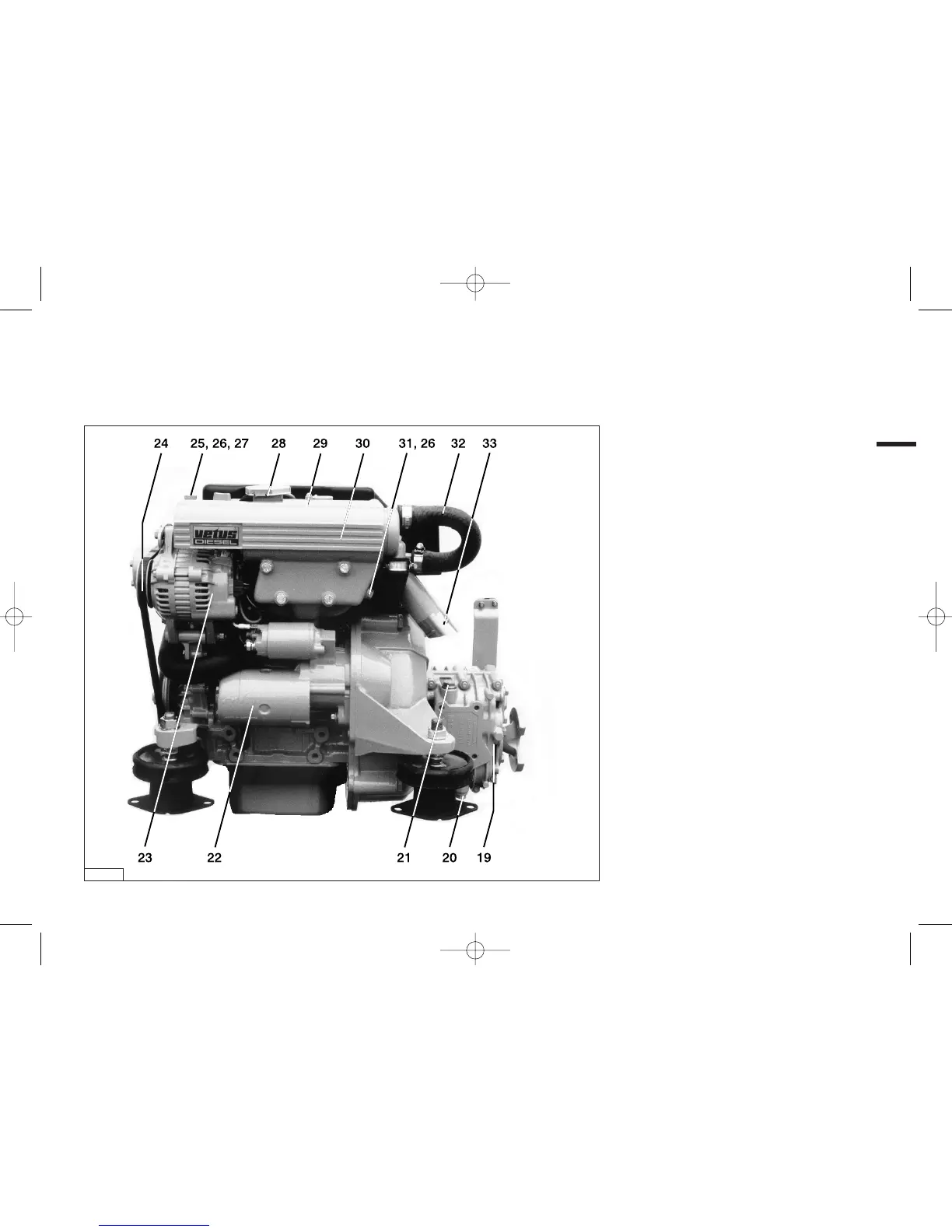

Identification of engine parts
Starter side
Engine description
VD01029
