2.6.2 Splicing loss estimation and quality
evaluation
After the splicing of the fibers has been completed, the
evaluation of the splicing loss is shown on the right side of
the display. The limit value for the splicing loss is set in the
menu [Fusion Splice Settings]. Note that the splice point
sometimes looks slightly thicker than the rest of the splice,
this is a normal splice and does not affect the splice loss.

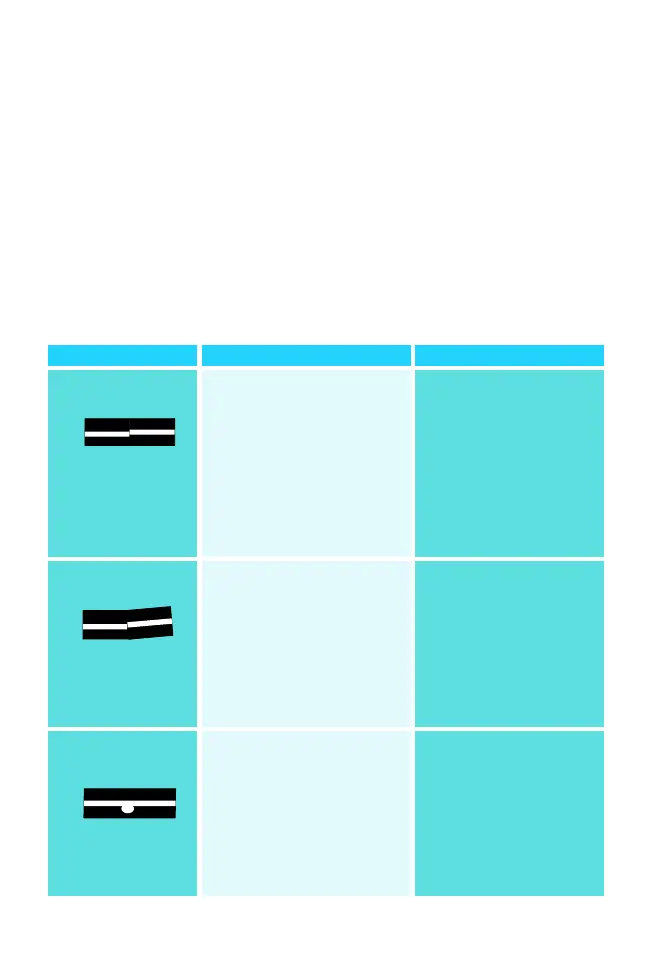

Explanation of fusion splice exceptions
Phenomenon
Reason
Solution
Axial
misalignment
of fiber cores
 Dust in V-groove
or fiber presser
foot
 Problems with
image detection
 Clean the
V-groove and
fiber presser
foot
 Repeated
occurrences
require a [detect
system
parameter]
Wrong core
angle
 Dust in the
V-groove or fiber
presser foot
 Bad end angle of
the fiber
 Incorrect
placement of the
fiber
 Cleaning the
V-groove and
fiber presser
foot
 Recutting fibers
 Repositioning
the fibers
Bubbles
 Bad angle on the
end face of the
fiber
 Dust on the end
face of the fiber
 Low pre-melt
current or short
pre-melt time
 Cutting again or
clean the fiber
 Up【Pre-Arc
current】or Up
【Pre-Splice time】
 Up【Arc current】
or Up 【Splice
