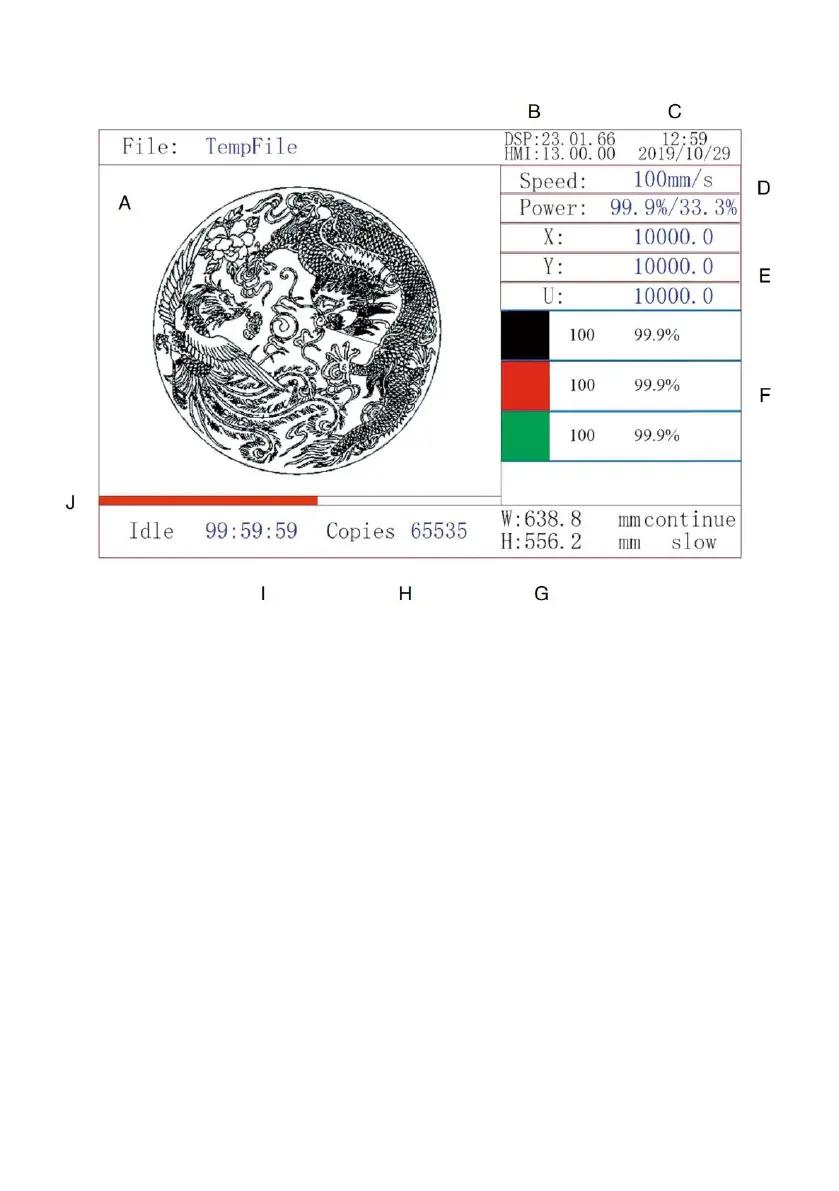

Display description
A. Graphical display area: Displays the track and running track of the
entire file.
B. Version Number: Displays the version number of the panel and
motherboard.
C. System Time: Displays the current system time.
D. Parameter display area: display the file number, speed, maximum
power, etc. of the running file.
E. Coordinate Display Area: Displays the current coordinates of the laser
head.
F. Layer Display Area: Displays the layer parameters of the current or
preview file. The parameters from left to right are the number of layers,
color, speed, and maximum power.
G. Frame Size Processed: Displays the dimensions of the current file.
H. Number of Pieces: Displays the count of completed runs for the current
file.
