Incorrect mounting of the lamp holder, the arrow on the lamp base must point with the
direction of flow and not as shown here against the direction of flow.
6.3.2 Horizontal pipes

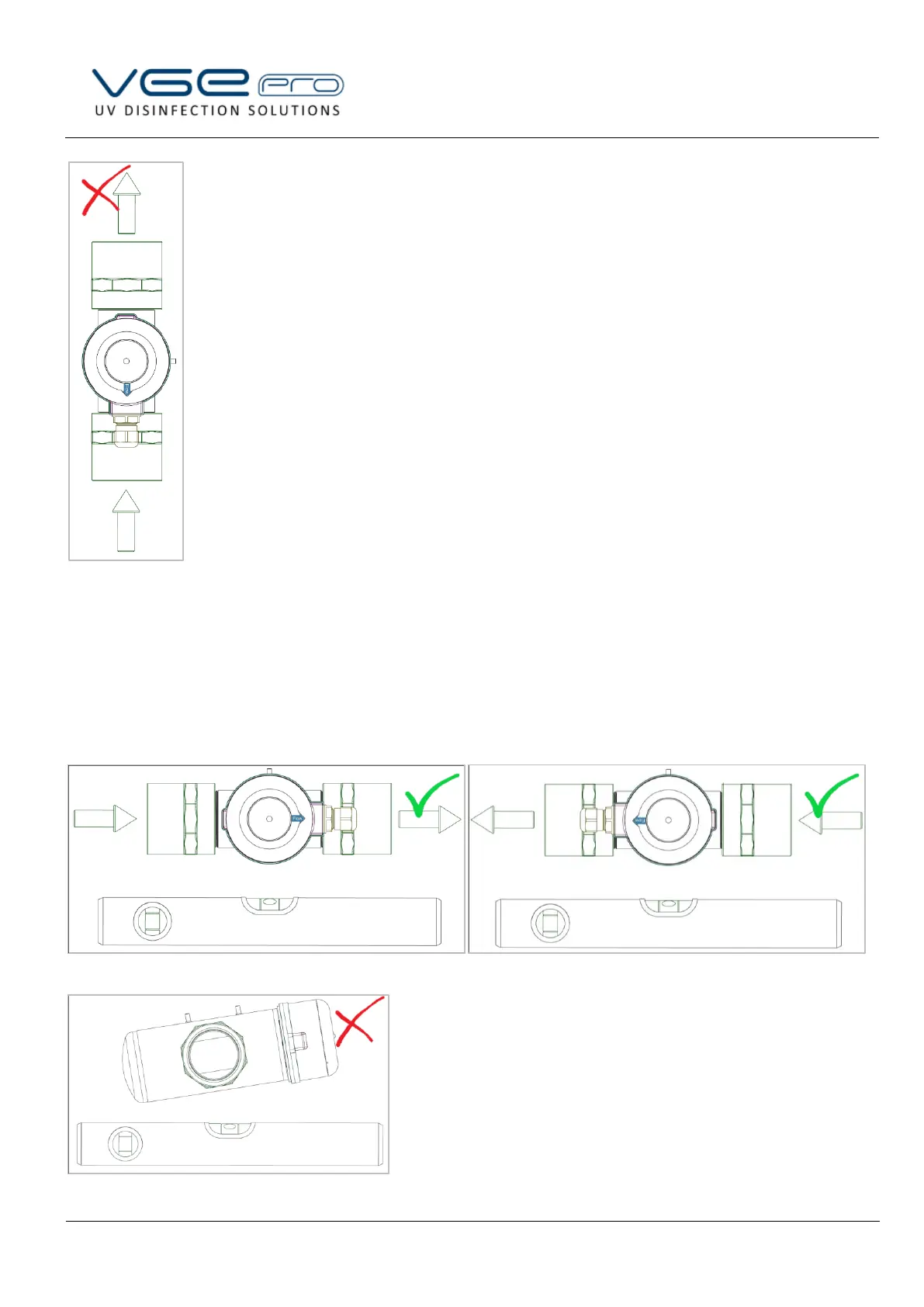

The VGE Pro MP systems can be flowed through in horizontal direction in both directions. Note the
direction of flow of the water and the position of the lamp holder (cable gland). With correct lamp holder
mounting, the arrow points to the lamp base in the direction of flow.
Correct horizontal mounting.
Incorrect horizontal mounting, the lamp is not placed horizontally.
