Installation & User Manual

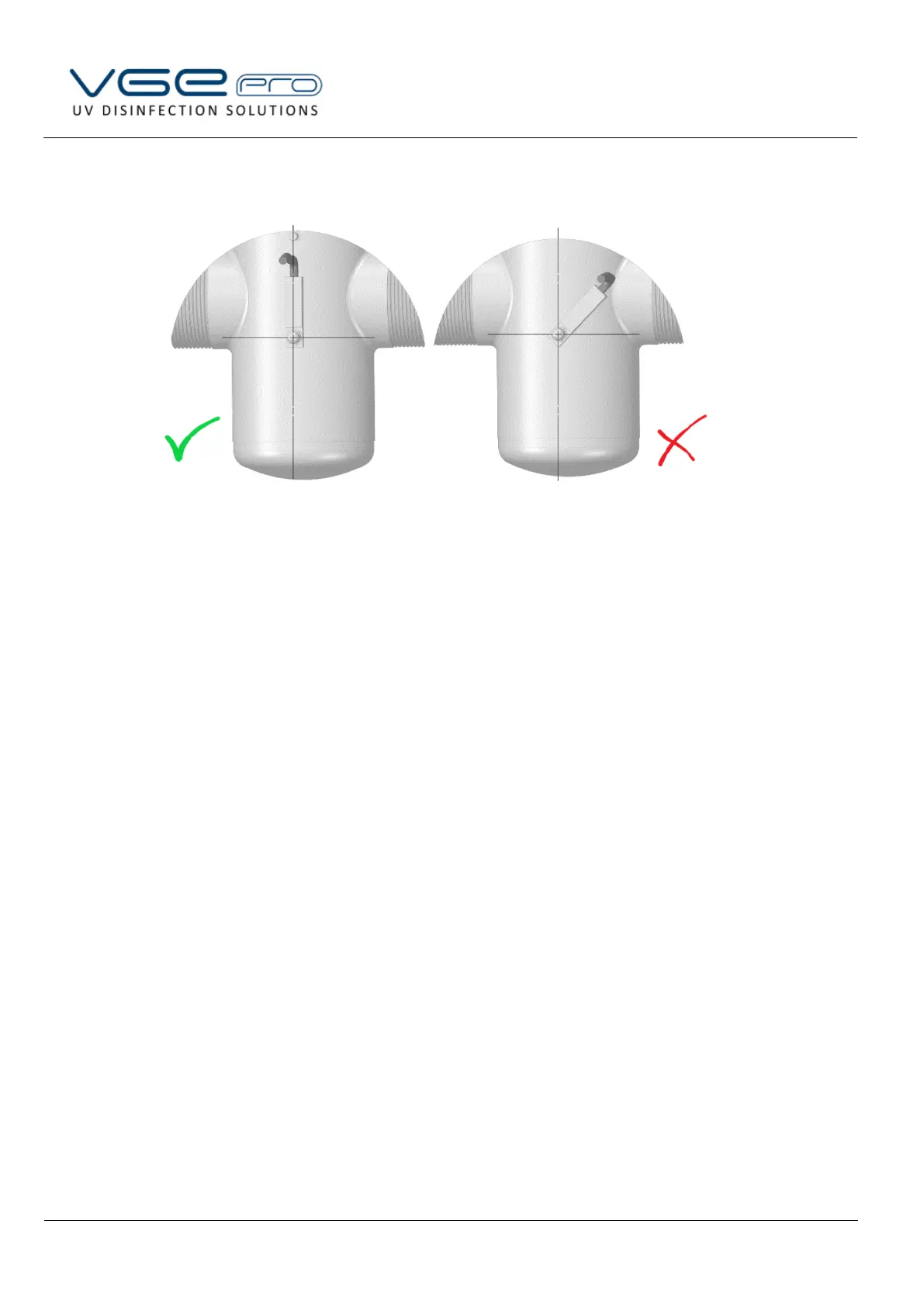

Before commissioning, for safe operation of the UV system, the Bimetal switch must also be correctly
mounted on the irradiation chamber with the supplied cap nut as shown in drawing 48.
Drawing 48 Correct assembly Wrong assembly
