Pin assignment of the suction unit data port

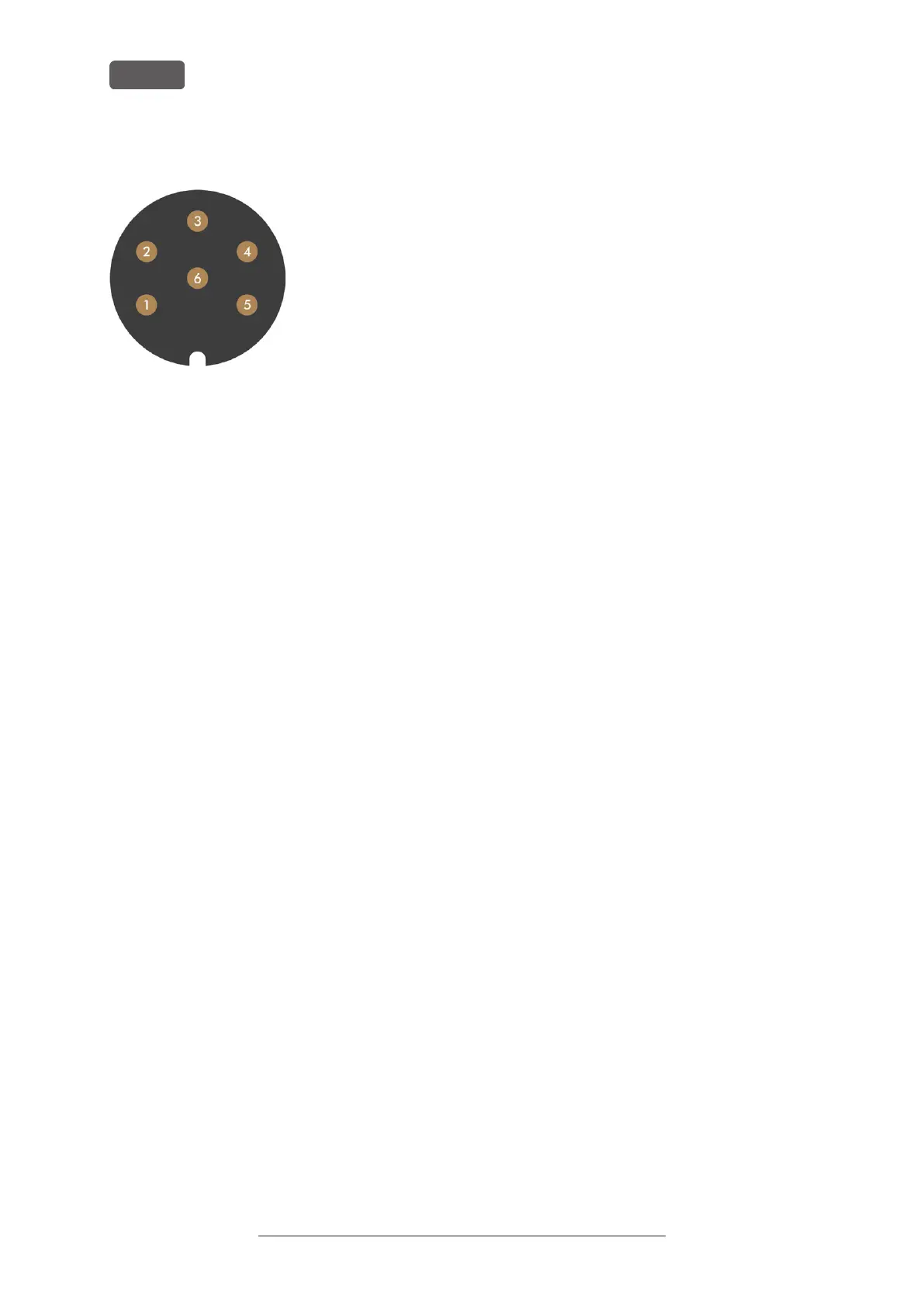

FIG. 8 PIN ASSIGNMENT OF THE SUCTION UNIT DATA PORT
1. + 24 V, switched, output 1
2. + 24 V, switched, output 2 (not used)
3. +24 V, continuous
4. Return signal output 2 (not used)
5. Return signal output 1 (not used)
6. Ground (PE)
