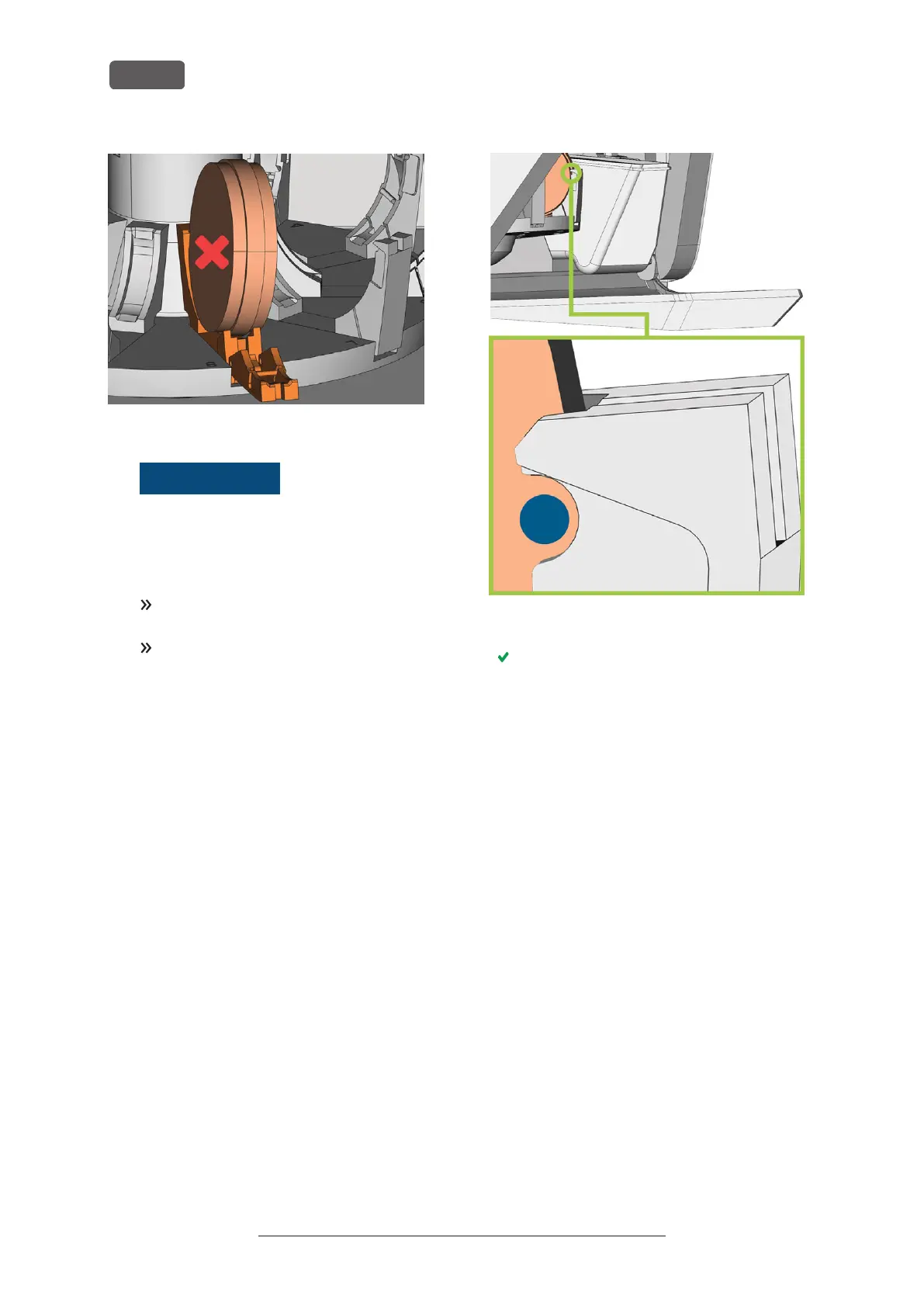

FIG. 54 (A) A CORRECTLY INSERTED DISC; (B) A DISC IN A SLANTED
POSITION
NOTICE
Damaging of the blank,
block holder or clamping
lever in case of improper handling
If you let the clamping lever snap against the
blank or block holder, the clamping lever may
damage the blank or block holder and/ or the
clamping lever may get damaged.
Do not let the clamping lever snap against the
blank or block holder.
Slowly guide the clamping lever upwards
against the blank or block holder.
8. Immobilize the blank or block holder by guiding
the clamping lever against it.
9. To ensure a proper seating, push the blank or block
holder slightly downwards.
10. Discs: If the disc has been marked for remounting,
slightly rotate the disc until the marking lies in the
corresponding opening in the clamping lever
( Fig. 55 see below).
FIG. 55 THE MARKING FOR REMOUNTING (BLUE CIRCLE) LIES IN THE
OPENING IN THE CLAMPING LEVER
The blank or block holder can be loaded into the
working chamber.
