Chapter 2
2-6

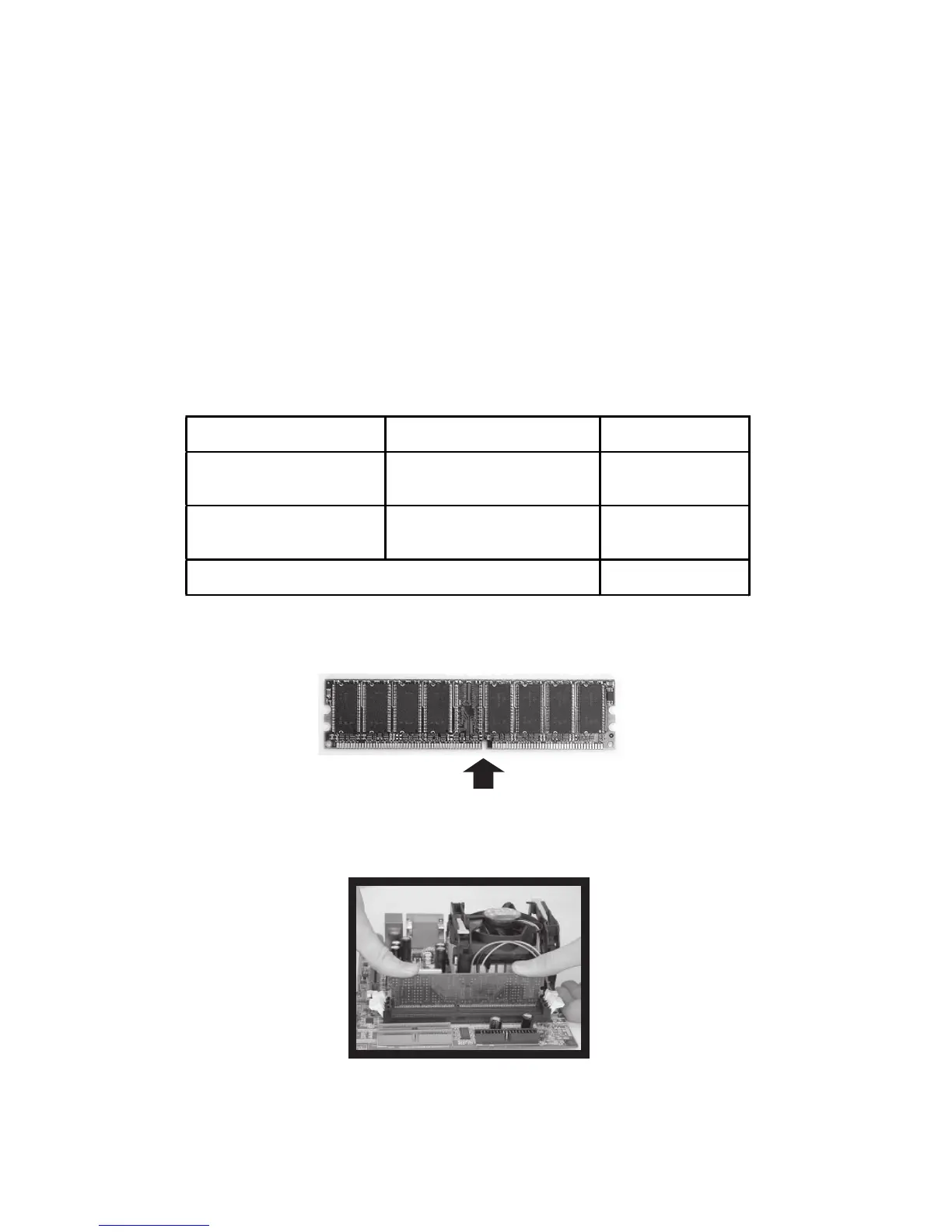

DDR Module Installation
You can install either single sided or double sided 184-pin DDR DIMM mod-
ules into the DDR DIMM slot, depending on your requirements. Differing from
SDR DIMM, DDR DIMM modules have only one notch on the center of the
module. The number of pins on either side of the breaks are also different. The
memory modules will only fit if placed in the correct orientation.
You can install DDR SDRAM modules in any of the following combinations:
Slot Memory Module Total Memory
Slot 1
(Bank 0 & Bank 1)
64MB, 128MB,
256MB, 512MB, 1GB
64MB~1GB
Slot 2
(Bank 2 & Bank 3)
64MB, 128MB,
256MB, 512MB, 1GB
64MB~1GB
Maximum System Memory Supported
64MB~2GB
1. The DDR DIMM module has only one notch on the center.
2. Insert the DDR module vertically into the DDR DIMM slot. Make sure the
notch is correctly aligned.
3. The plastic clips at sides of the DIMM slot will automatically close shut.
Notch
To Next Page
