Installation
2-17

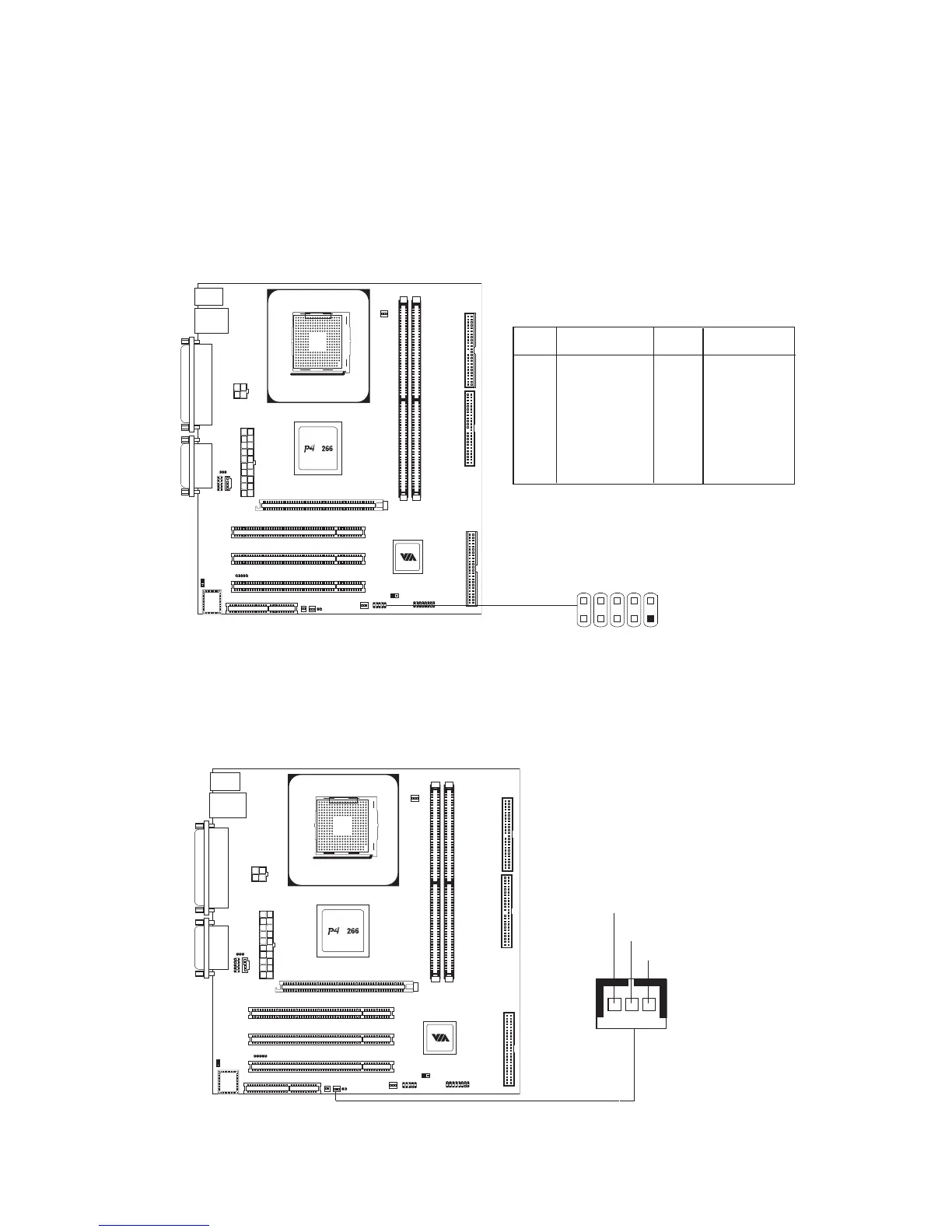

USB pin-header: USB3/4
The mainboard provides 1 front USB pin-header connector, allowing up to 2
additional USB ports. Please plug the USB 2-port module onto this pin-header.
Wake-On LAN Connector: WOL
This connector allows you to connect a network card with the Wake-On LAN
function. The connector will power up the system when a signal is received
through the network card.
1 9
USB 3/4
2
10
PIN SIGNAL PIN SIGNAL
1 VCC 2 VCC
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 NC 10 GND
USB 3/4 Pin Definition
Socket 478
M
+5VSB
GND
WOL
Socket 478
M
To Next Page
