Chapter 2
2-12

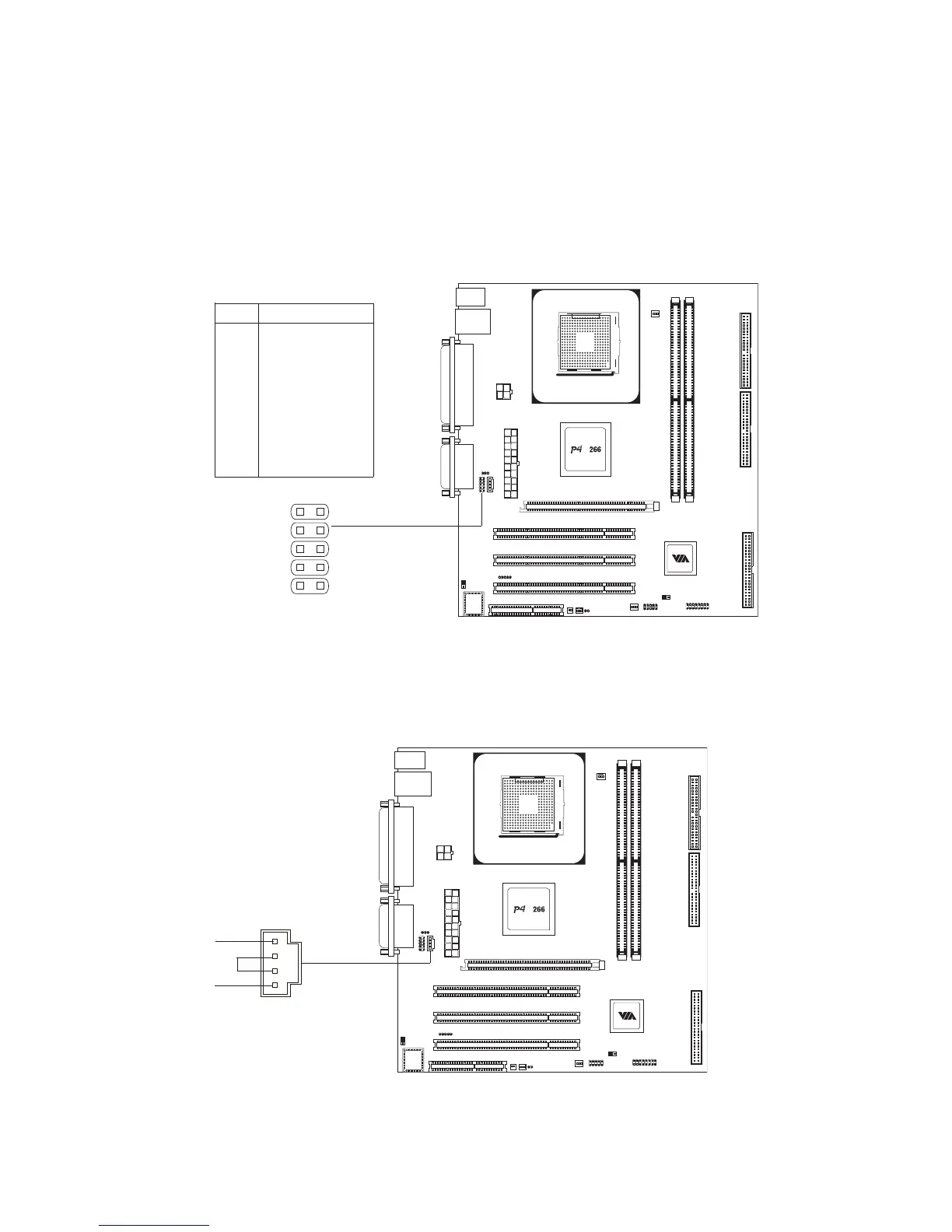

Front Panel Audio Connector: F_AUDIO
This connector allows you to connect audio jacks on front panel for conve-
nient connection and control of audio devices.
CD-In Connector: CD_IN
This connector is for the CD-ROM audio connector.
CD_IN
CD_GND
CD_R
CD_L
Socket 478
M
Socket 478
M
Pin Definition
PIN SIGNAL
1 MIC_IN2
2 GND_AUD
3 MIC_VCC
4 +5VCODEC
5. LINEOUTR_AP
6. LINEOUTR
7. NC
8 NC
9 LINEOUTL_AP
10 LINEOUTL
1
2
9
10
F_AUDIO
