8.2.3 ARCHITECTURAL CONDITIONS:
Internal Glass Partition Wall
Those partition walls have to be scanned like other partition walls, except that it remains mandatory
to scan the room on the other side of this partition, to avoid to create ghost rooms. See Figure 18.

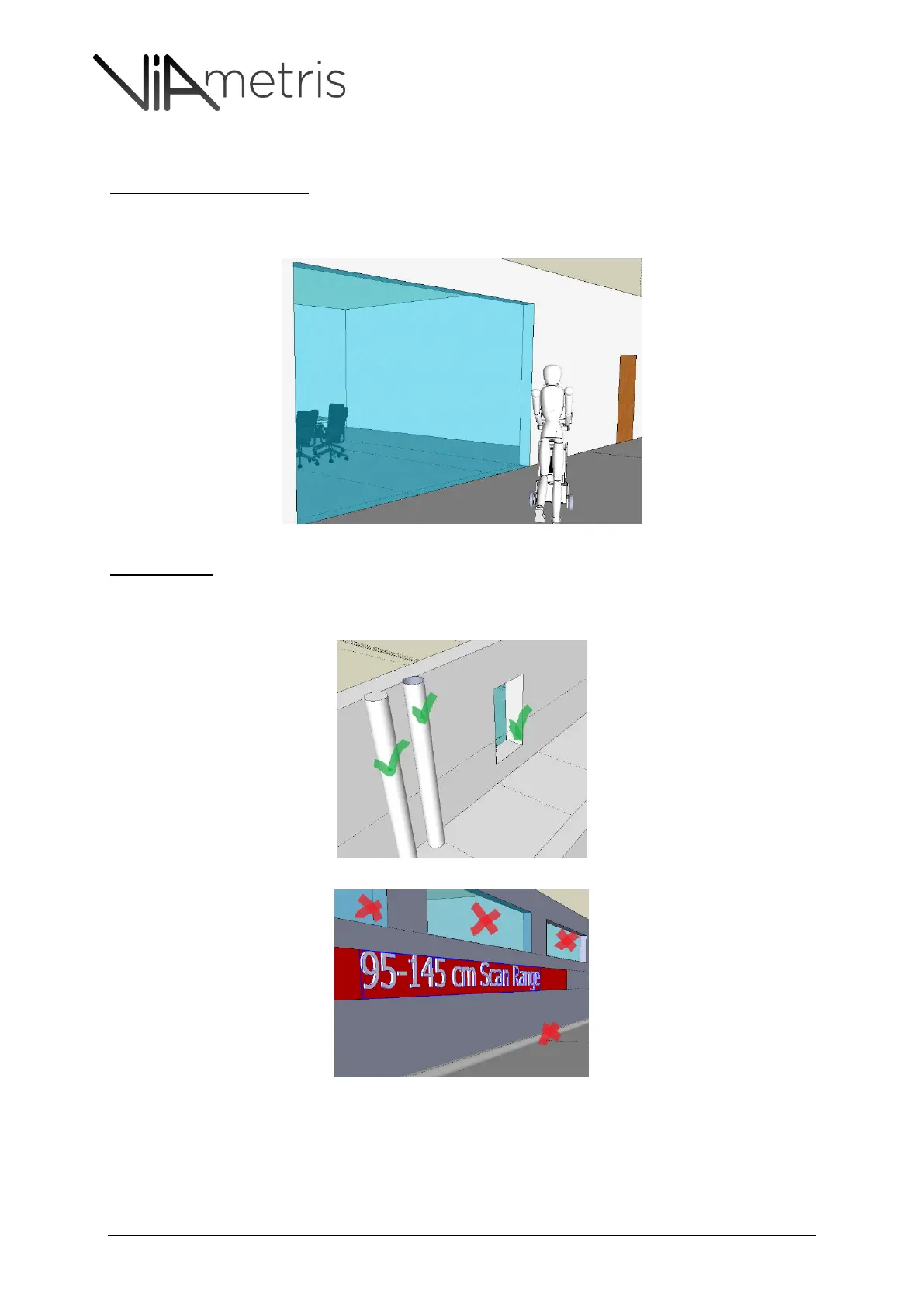

Figure 18: Glass windows to be scanned like standard partition walls.
Long Corridors
Long corridors without any noticeable elements (no columns, no doors, no vertical heating
pipes, no high piece of furniture in the 95-145cm above the ground).see Figure 20 and Figure
21.
Figure 19: heating pipes and window are within range.
Figure 20: horizontal heating pipe and windows are out of the range.
o Such environment, without noticeable features within scan range, can lead to poor
measures if following precautions are not taken:
o Avoid scout to stand in front of the cart (behind the cart or out of radar range is
recommended)
