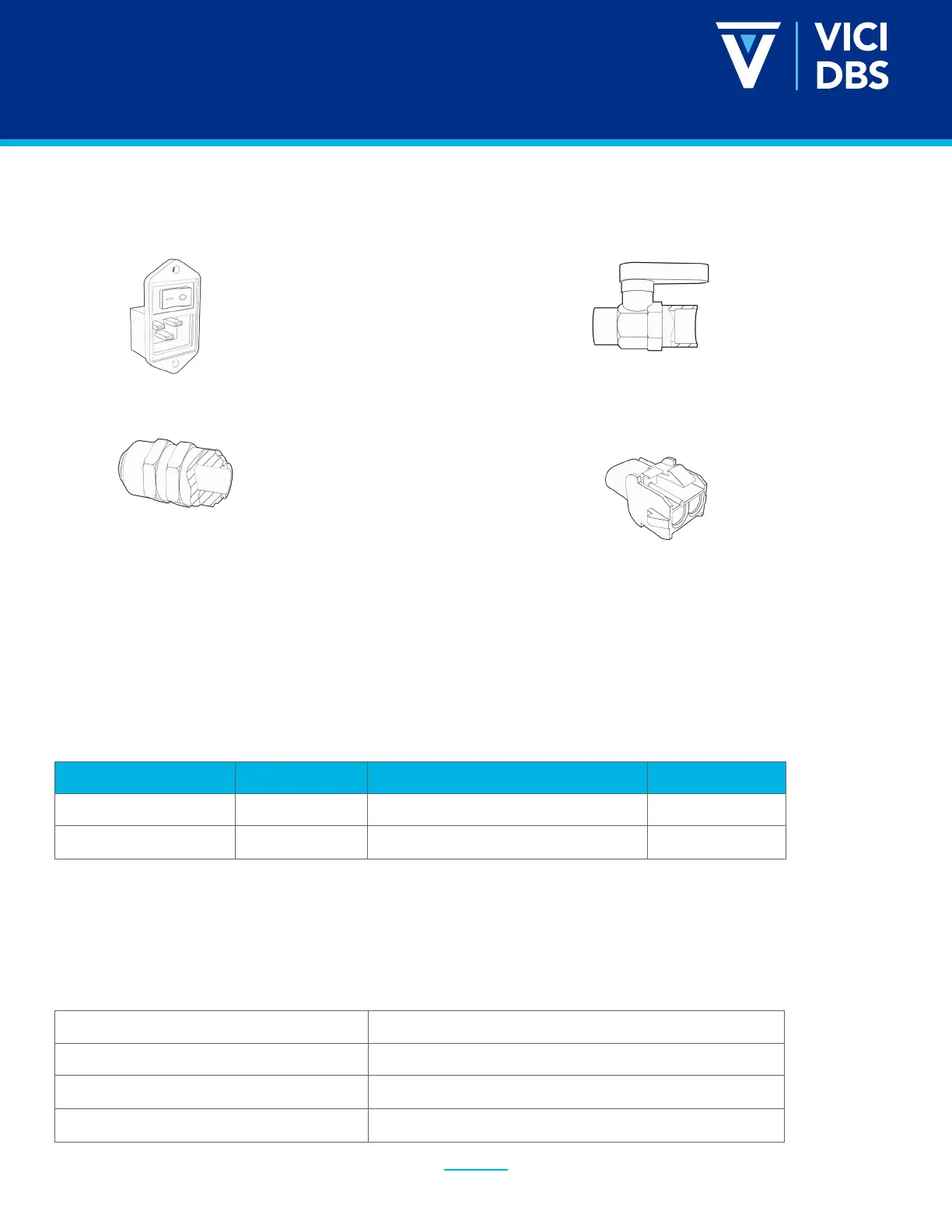

5.3 Connections
Power Supply: C-20 Outlet N2 with Valve: G1/4” female
Outlet Water Purge: Ø10mm tube Relay Alarm: 2 pos universal Mate-N-Lock
connector female
5.4 Power Supply Settings
The current power supply setting of the device is indicated on the ID Sticker on the back of the device. The
Mistral Evolution standard setting is 220-240V/50-60Hz.
If other voltages are requested, this should be done when ordering. In this case a transformer will be
installed to transform internally the requested voltage to 110-115 V/50-60Hz. The list of voltage and
frequencies settings possible are bellow. In any case the voltage of the power supplied must stay at
+/- 10% of the nominal value.
VOLTAGE SETTING FREQUENCY FUSE F3 (5X20 OR 6.3 x 32 mm) COUNTRY
110-115 VAC AC50-60 Hz 20 A Japan/USA
220-240 VAC AC50-60 Hz 10 A Korea/Europe
Please see service manual for the connection of the transformer. General earth connection is done via power
supply main cable.
5.5 Transport and Storage Conditions
Temperature Minimum -10ºC (14ºF), Maximum 45ºC (113ºF)
Humidity Inferior to 90% Rh, non-condensing
Shocks and vibrations during transport Shocks <1g; Vibrations <0.2g/5Hz
Instruments position Horizontal
