Victory BACKHOE Series - Adjust the Thump (Optional Part)

Operator’s Manual Backhoe Series BH - Page 49 of 91 - Version 2.0

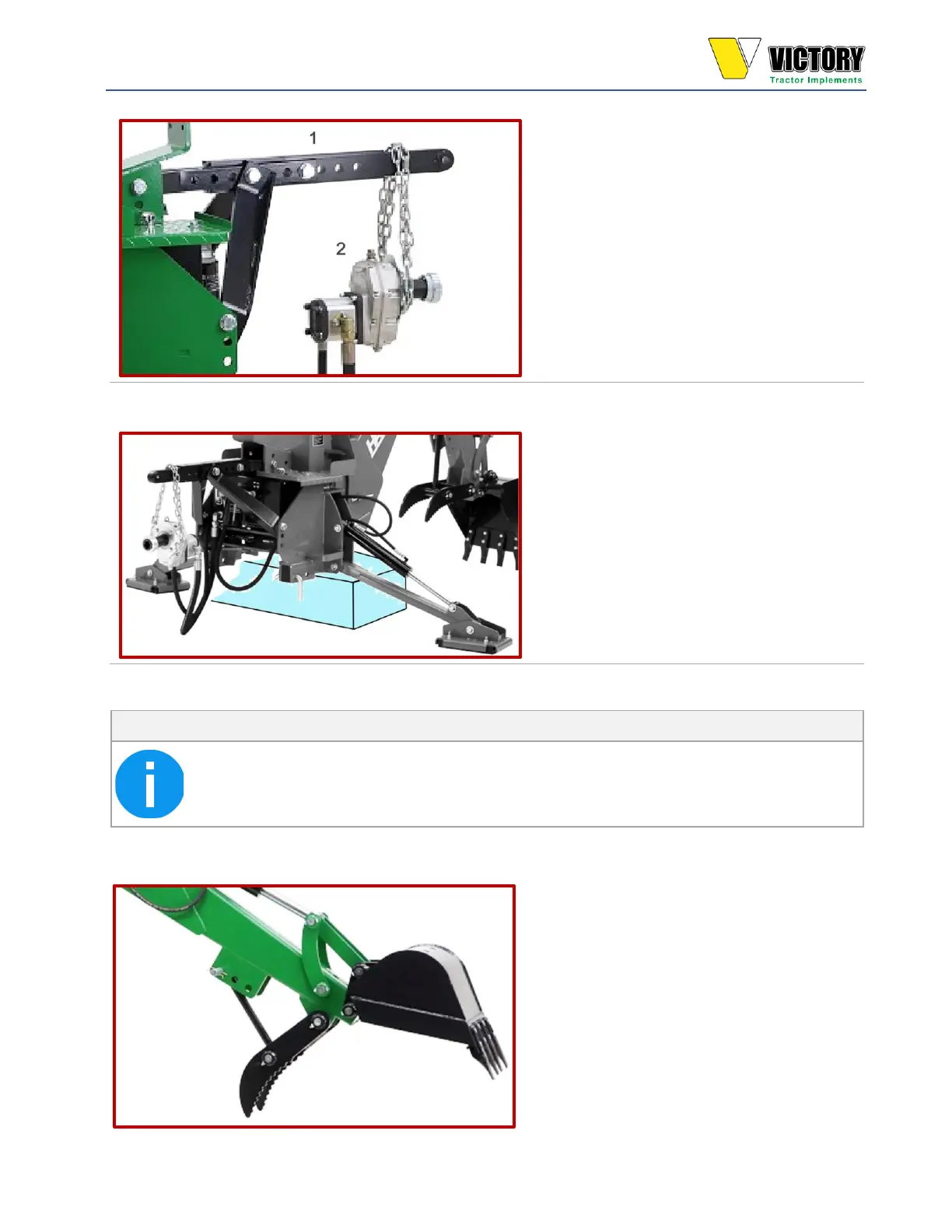

PTO Hydraulic gear pump assembly (2)
stored on the adjustable upper brace
(1).
Support block for Storage
IMPORTANT NOTICE:
For long-term storage, coat exposed cylinder rods with grease.
6.2 Adjust the Thump (Optional part)
◼ Use the locking pin with an R-shaped
cotter pin to mount the thumb
support bar in the desired position.
◼ Remove the support bar and the
thumb if you do not use it.
