Operator’s Manual Backhoe Series BH - Page 56 of 91 - Version 2.0
7.7 Hydraulic oil reservoir, gauge, and filter
You can fill the reservoir with ‘All-Purpose Tractor Hydraulic Oil’: AW32 / AW42.

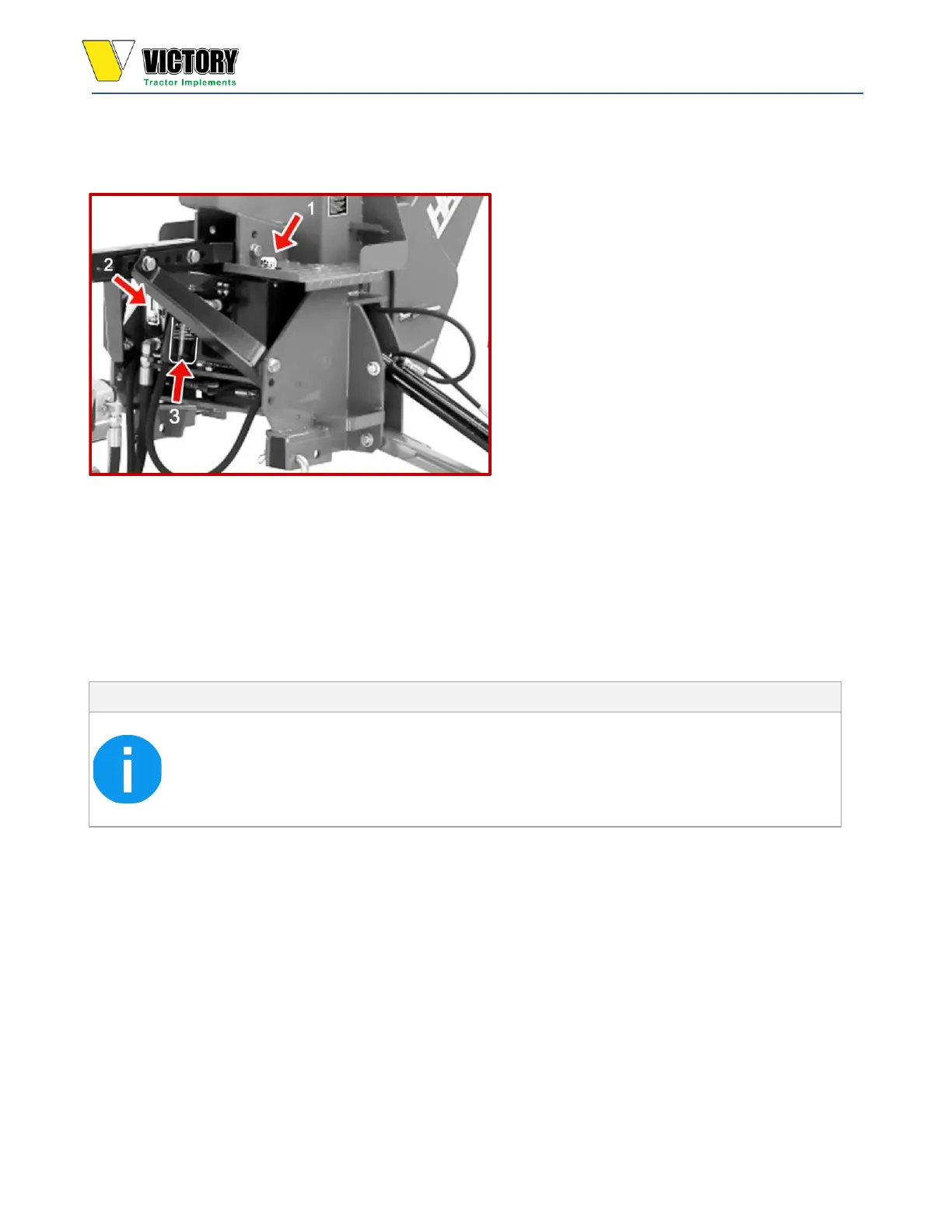

You can find the hydraulic oil filler cap,
oil filter, and oil level gauge as shown.
◼ Oil filler cap (1).
◼ Oil level gauge (2).
◼ Oil filter (3).
7.7.1 Hydraulics Trouble Shooting
The troubleshooting material presented in this section is offered as a guide to diagnosing probable
causes and remedies for general operational problems. Match your problem with the typical
problem examples given, and note the numbers given for the possible reason. These numbers
correspond with the probable cause and correction paragraphs that follow.
• When using the troubleshooting chart, if it is decided that an overhaul of
components or pressure adjustments are necessary to correct
malfunctioning, it is recommended that your dealer make these repairs.
He is authorized to do this work.
