Operator’s Manual Backhoe Series BH - Page 55 of 91 - Version 2.0

7.6.1 Oil the following locations with SAE 30 oil:

A. Stabilizer Pivot Pins.

B. Control Handle Linkage.

C. Seat Bracket Pivot.

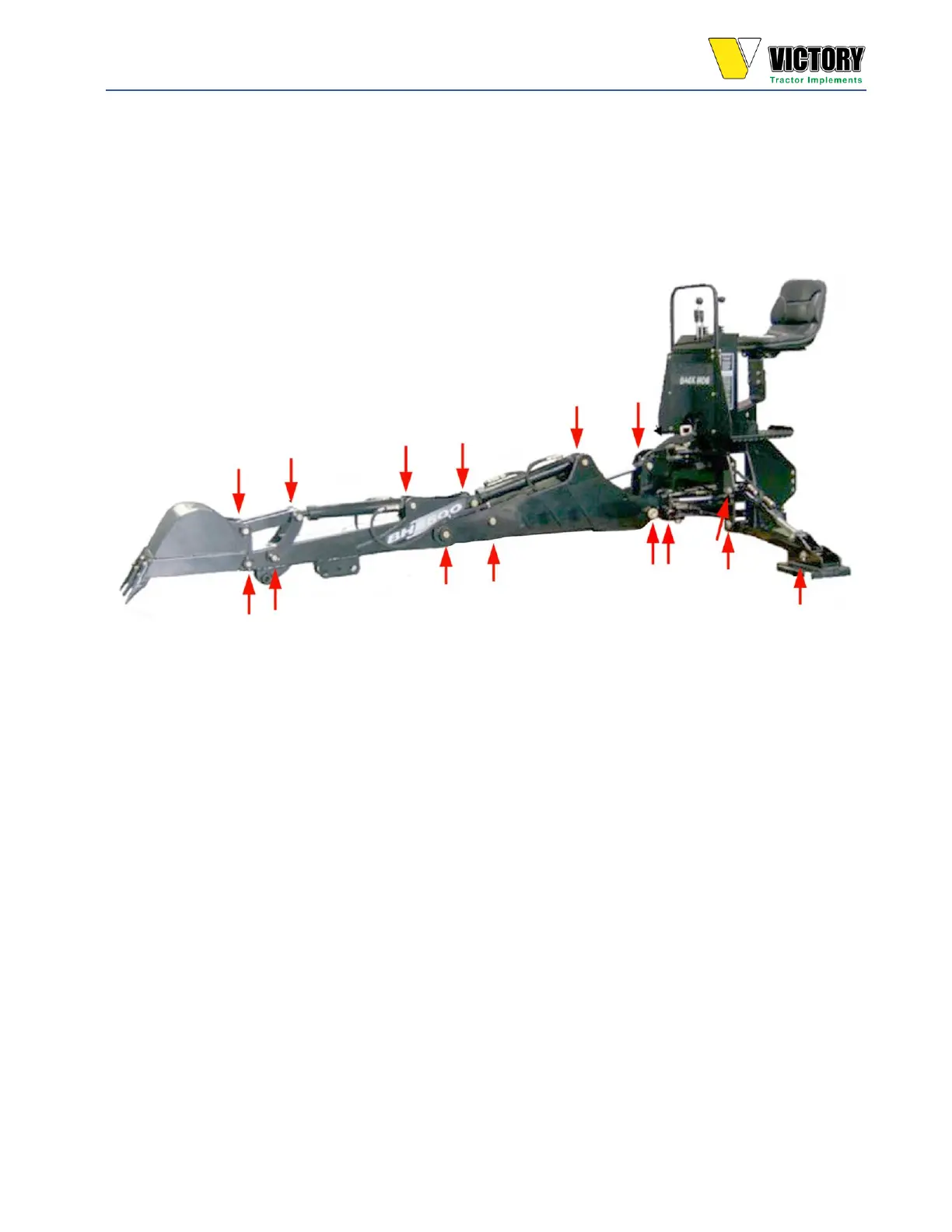

7.6.2 Grease the following locations with Lithium based grease:
