11. Appendix

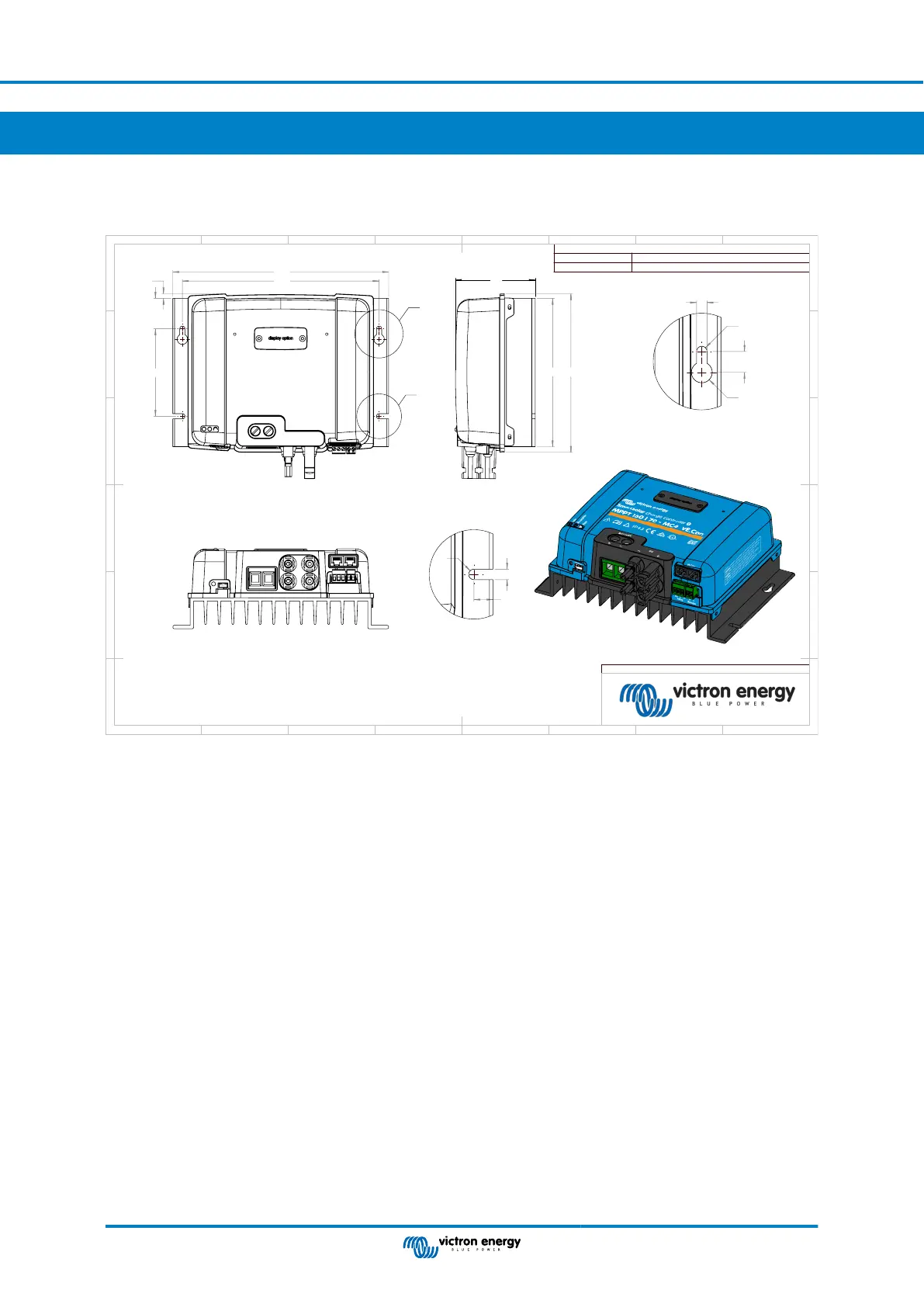

11.1. Dimensions 70A-MC4-VE.Can
249
227
101
35
5
B
A
171 182
92
6
R3
12
R6
DETAIL
B
SCALE
1 : 1
6
11
R3
DETAIL
A
SCALE
1 : 1
Rev01
SCC115070511 SmartSolar MPPT 150/70-MC4 VE.Can
SCC125070521 SmartSolar MPPT 250/70-MC4 VE.Can
Dimensions in mm
Dimension Drawing - SmartSolar charge controller (L)
D
E
F
C
1 2 3 4
B
A
3 2 1 5
C
D
4 6 7 8
A
B
8 7 6 5
F
E
MPPT solar charger manual
Page 66 Appendix
