c. Switch once more rapidly from ‘on’ to ‘charger only’ and leave the switch in this position.
4. On the MultiPlus-II (and, if connected, on the MultiControl panel) the three LEDs ‘Bulk’, ‘Absorption’ and ‘Float’ will now flash
5 times.
5. Subsequently, the LEDs ‘Bulk’, ‘Absorption’ and ‘Float’ will each light during 2 seconds.
a. If the switch is set to ‘on’ while the ‘Bulk’ LED lights, the charger will switch to equalisation.
b. If the switch is set to ‘on’ while the ‘Absorption’ LED lights, the charger will switch to forced absorption.
c. If the switch is set to ‘on’ after the three LED sequence has finished, the charger will switch to ‘Float’.
d. If the switch is has not been moved, the MultiPlus-II will remain in ‘charger only’ mode and switch to ‘Float’.

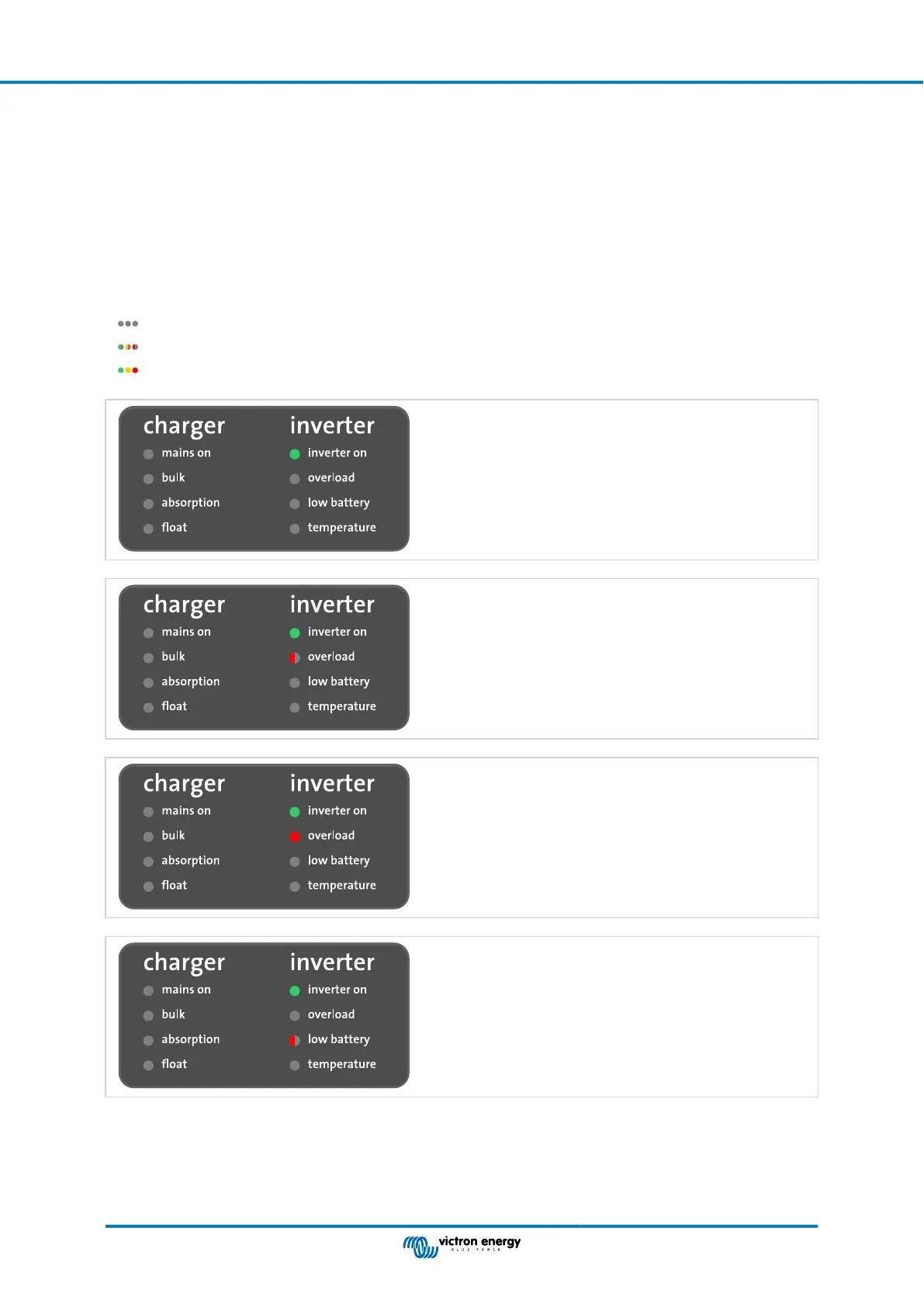

3.4. LED Indications
LEDs off
LEDs blinking
LEDs illuminated
Inverterting
The inverter is on. Inverter power is supplied to the load. The
"inverter" LED is on.
Overload pre-alarm
The nominal output of the inverter is exceeded. The "overload"
LED is blinking
Overload alarm
The inverter is switched off due to overload or short circuit. The
"overload" LED is on.
Low battery pre-alarm
The battery voltage is getting low. The battery is almost fully
exhausted. The "low battery"LED is blinking.
MultiPlus-II 48V 3kVA 120V
Page 6 Operation
