25H/SP/DDA/2W (1 way “2 wire” DDA audio intercom kit)
ART. 521
POWER SUPPLY
Made in EEC
PRI.
OUT.
230V
12VDC 1A
50/60Hz
230V 0
157.5mm 65mm
105mm
ART.521 POWER SUPPLY
The Art.521 power supply will supply an output voltage of 13.5Vdc (800mA continuous or a 1A surge) and is
protected by a fall back circuit (there are no internal fuses on the primary or secondary side of the transformer).
A fused spur should always be used with this type of power supply. It is contained in a standard 9 module A
type DIN box for mounting on a standard DIN rail.
IMPORTANT NOTE: The 230Vac mains input terminals on this PSU should be connected to the mains supply
via a fused spur or preferably an all pole circuit breaker (refer to pages 29 - 30).

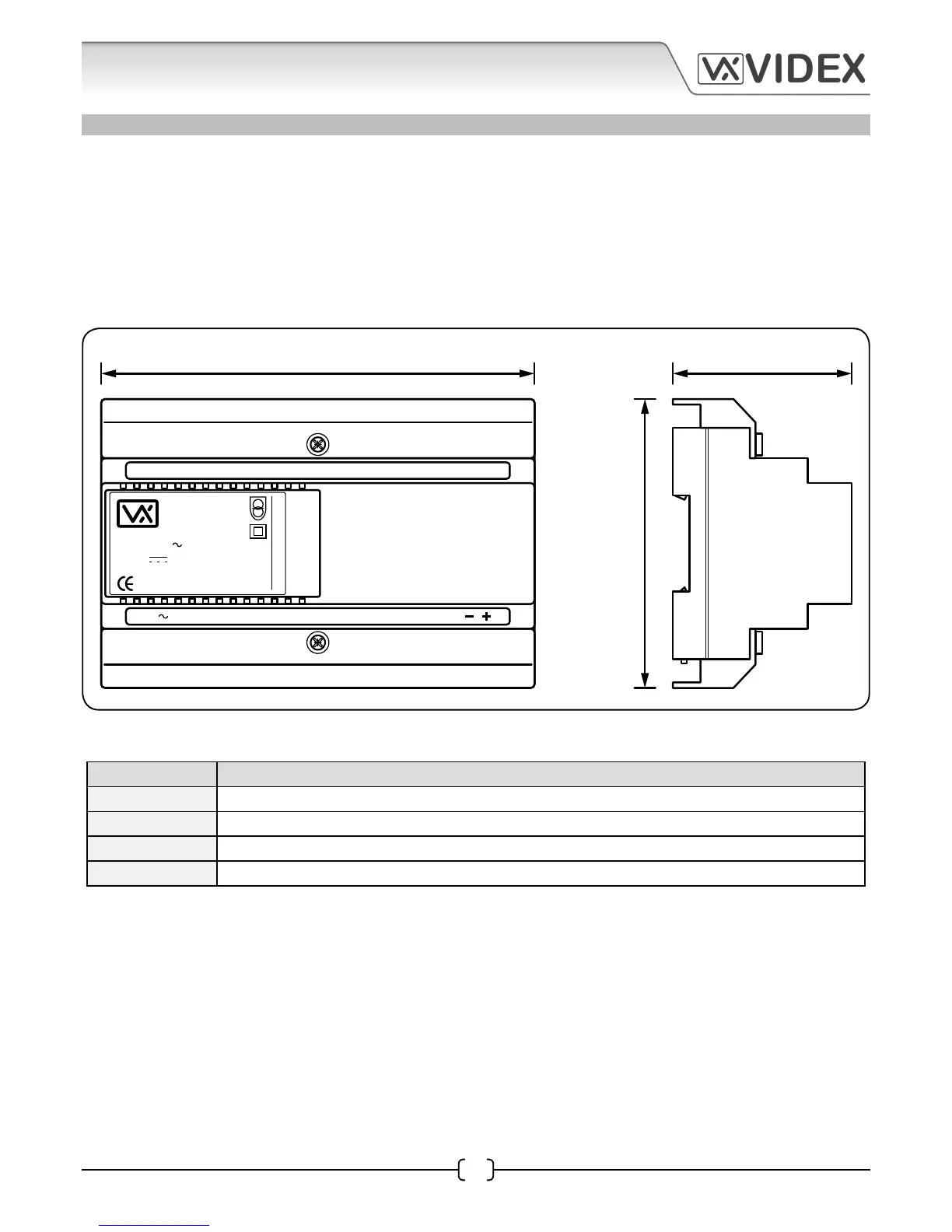

Art.521 Dimensions
Terminal Connections
Terminal Function
+ 13.5Vdc output (800mA continuous, 1A max.)
- 0V (ground)
230V~ Mains input (live)
0V Mains input (neutral)
Technical Specications
Input Voltage : 230Vac @ 50/60Hz +/- 10%
Output Voltage : 13.5Vdc +/- 10%
Current (continuous) : 800mA, (surge 1A max.)
Module Dimensions : 157.5mm (L) x 105mm (W) x 65mm (D)
Working Temp. : -10 +50
o
C
