Videx 6200 Series User Manual

66251115 - V4.1 - 31/07/19
- 13 -
6200 Series
Art.6296 - Installation instructions
OPERATION  VIDEOPHONE’S TOUCH SCREEN
The functions available via the physical buttons are also available with more advanced functionality via the touch screen menu.
If the display is switched o, tap on it to open the main menu (Fig. 53).
From the “MAIN MENU” the following functions are available:
• Camera recall to any* door panel installed on the system.
• Intercommunicating call to any* extension of the system.
• Activation of any* door panel’s relay.
• View the event log.
* Note that the list of available door panels like the list of available extensions and the list of door panel relays are depending on the programming made using the “Videx IP Wizard” software. For
every videophone, independent of each other, can list all or any combination of available devices on the system.
CAMERA RECALL TO A DOOR PANEL
The camera recall through the touch screen is possible to any door panel stored in the videophone’s “panels address book”.
The “panel address book” is populated using the conguration software “Videx IP Wizard”.
• Tap on the door panel icon (Fig. 53)*, if the “panel address book” a warning is shown (Fig. 54).
• Select the door panel to connect to then tap the call button to open the communication (Fig. 55).
• The camera recall proceeds as described in paragraph “Camera recall” on page 10.
* If the panel address book includes one door panel only, tapping on the icon launches the call to the door immediately (Fig. 38 on page 10).
INTERCOMMUNICATING CALL TO AN EXTENSION
The intercommunicating call is possible to any intercom stored in the videophone’s “intercoms address book”.
The “intercoms address book” is populated using the conguration software “Videx IP Wizard”.
• Tap on the intercommunicating call icon (Fig. 53)*, if the “intercoms address book” is empty a warning is shown (Fig. 56).
• Select the indoor station to connect to then tap the call button to open the communication (Fig. 57).
• The intercommunicating call proceeds as described in paragraph “Switching between door panel camera and
external video source” on page 11.
* If the intercoms address book includes one indoor station only, tapping on the icon launches the call to the videophone immediately (Fig. 47 on page 12).
ACTIVATION OF A DOOR PANEL’S RELAY
The videophone can activate any relay stored in the videophone’s “outputs” list.
The “outputs” list is populated using the conguration software “Videx IP Wizard”.
• Tap on the service icon (Fig. 53)*, if the “Remote Output List” is empty a warning is shown (Fig. 58).
• Select the relay to activate (Fig. 59) then tap the tick button to activate it (Fig. 60).
• Activate another service otherwise tap on the go back button to go back to the main menu (Fig. 53).
* If the outputs list includes one relay only, tapping on the icon activates the relay immediately.

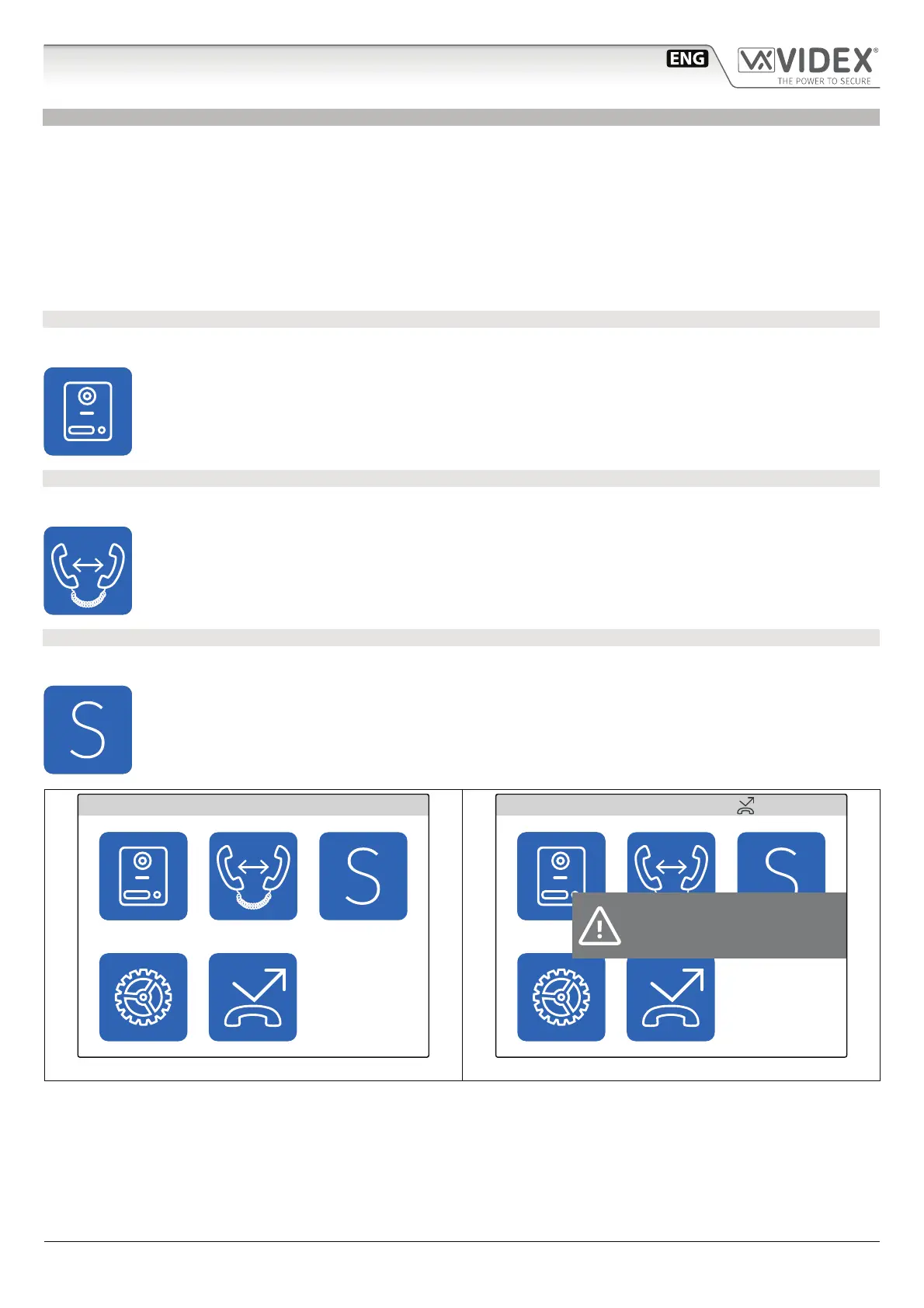

15:30
MAIN MENU
Fig. 53 Main menu
15:30
MAIN MENU
Panel Address Book
Is Empty
Fig. 54 Panel Address Book is Empty
