VX2200 Digital System “6 Wire” BUS Video - “2 Wire” BUS Audio
Art.CST2220 - Operating Instructions
Art.CST2220 VX2200 IP Concierge Station GUI instruction sheet
START A VPN CONNECTION
To start a VPN connection, rst follow the steps as shown in gures Fig. 65 on page 17 to Fig. 67 on page 18. Then proceed as
shown below:

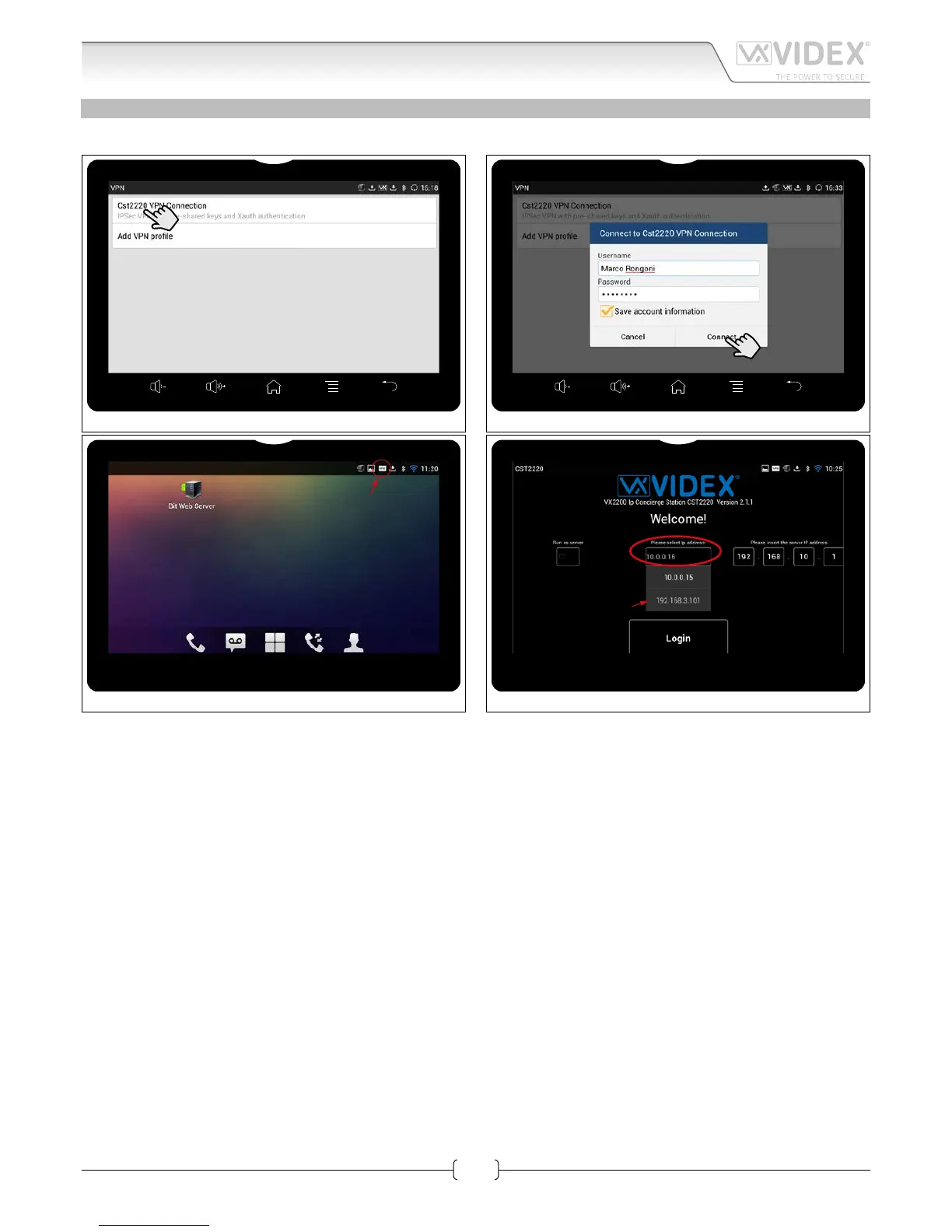

Fig. 70 tap on the VPN connection to start Fig. 71 tap on “Connect” to start the connection
Fig. 72 the VPN connection is established Fig. 73 select the IP address of the “VPN” connection
A “VPN” icon on the top right side of the screen shows that the connection is established (Fig. 72).
After the “VPN” connection is established you can RUN the CST2220 application.
When the application starts, select the correct IP address that must be the address assigned by the VPN connection (Fig. 73).
Then set the “server IP address” or check the ag “Run as server” before tapping on the “Login” button.
Note: while the connection to another server requires only to set up the proper IP server address, the “Run as server” option requires that the local server is properly congured and that all the other
devices of the system (interfaces 2220 and any other concierge CST2220 or CSW2220) are congured to point to the server on the VPN connection.
