Vitodens 100-W, B1HE/B1KE Combi Installation/Service
Fitting the Programming Unit and Front Panel (continued)
Installation
Programming unit located at the top

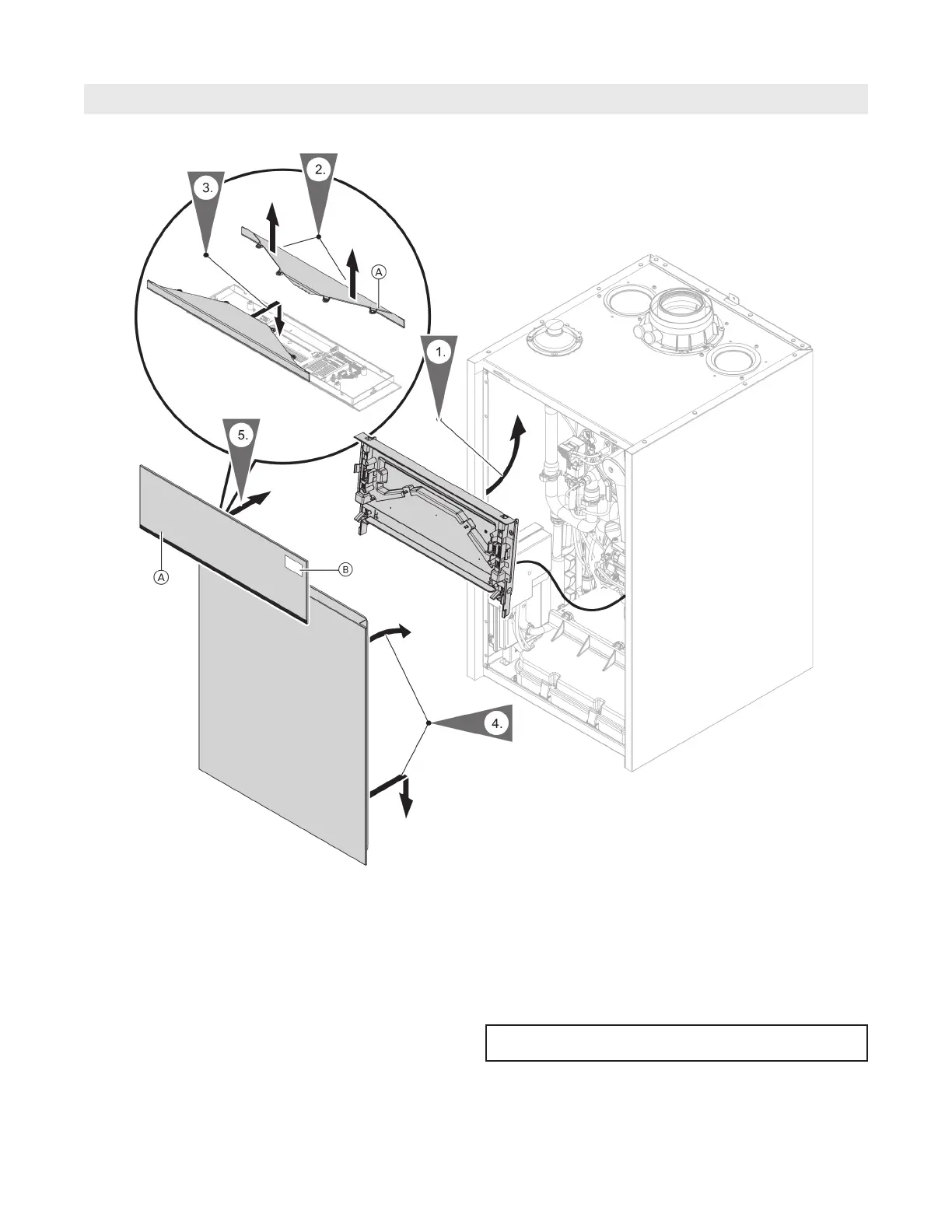

1. Install the mounting panel for the programming unit
at the top. See page 16.
Reconnect the plugs to the mounting panel on the
right. Do not alter where and how the cable is
secured (fixing point of the cable tie).
2. Pull Lightguide A out of all 4 detents at once and
remove. As you do so, pull it upwards between 2
detents, in the middle and at the same time.
Ensure that the locking tabs do not break off.
3. Turn Lightguide A around and clip it into place at
the bottom of the programming unit.
4. Fit the front panel.
The front panel also serves to seal off the air box.
Ensure the front panel is seated correctly.
5. Fit the programming unit with Lightguide A at the
bottom.
IMPORTANT
Legend
A Lightguide (at the top)
B WiFi label
