51
6167 818 - 10
Vitodens 100-W, B1HE/B1KE Combi Installation/Service
Service

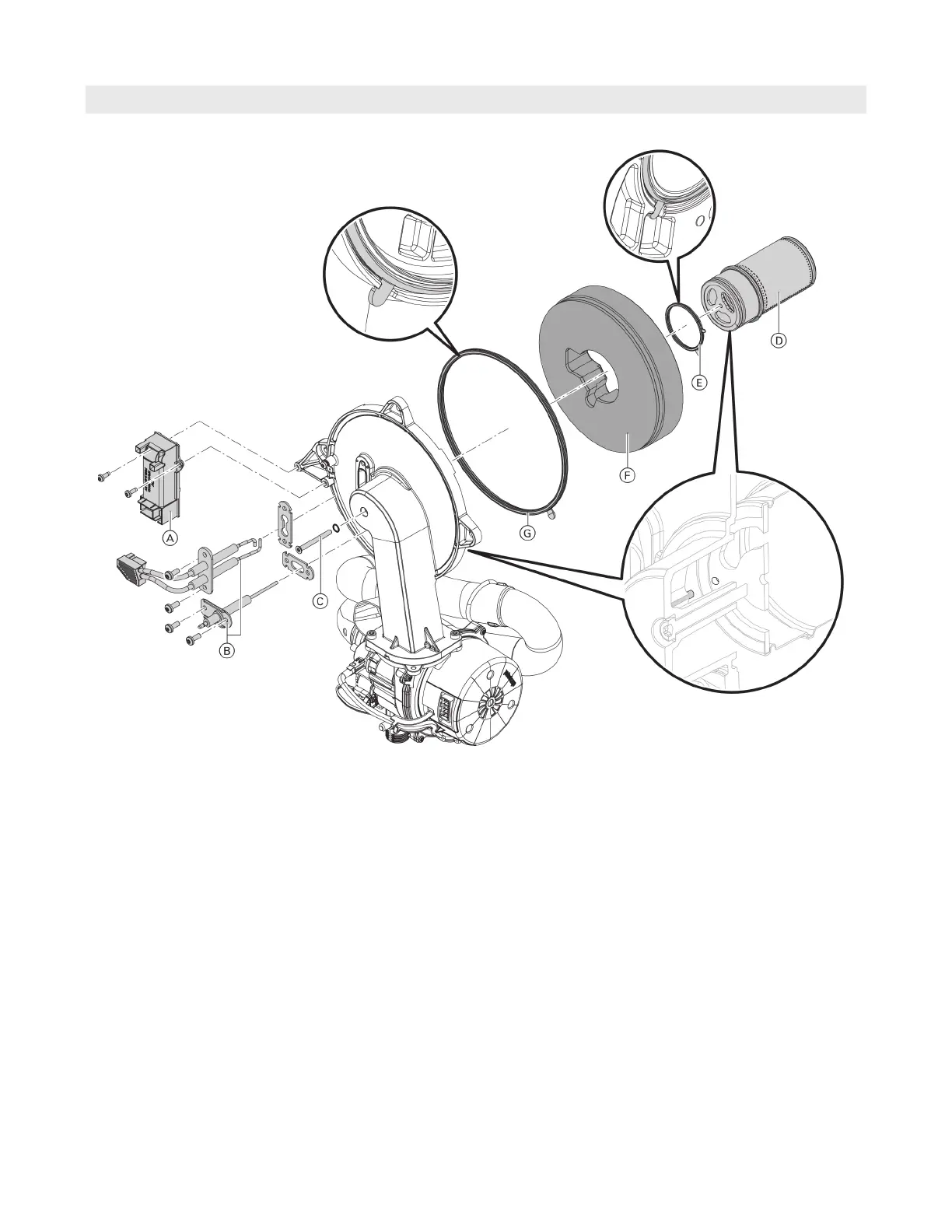

Checking the Burner Gasket and Flame Body Assembly
1. Disconnect plug with ignition electrode leads from
ignition unit A.
2. Remove electrodes B.
3. Undo Torx screw C. Hold onto flame body
assembly D when undoing the screw.
4. Remove flame body assembly D with gasket E
and thermal insulation ring F. Check components
for damage.
5. Install new burner gasket G. Observe correct
installation position. Align the tab as per the diagram.
6. Insert thermal insulation ring F and flame body
assembly D with gasket E. Observe correct
installation position. Align the tab as per the diagram.
7. Align the hole in flame body assembly D with
the burner door pin. Secure flame body assembly D
and gasket E with Torx screw C. Torque: 27 lb.in
(3.0 Nm).
8. Check thermal insulation ring F for firm seating.
9. Fit electrodes B. Check clearances, see following
chapter. Torque: 40 lb.in (4.5 Nm).
Check flame body assembly D, electrodes B, thermal
insulation ring F and gasket G for damage. Only
remove and replace components if they are damaged
or worn.
Note: If replacing the flame body assembly, also replace
the flame body assembly gasket and the fixing
screw.
B1HE/KE 85 and 120
