Viessmann Commander 5300 - Wiring Diagram

11
Viessmann Commander
viessmann
5224
Steuermodul für
Lichtsignale
Signal(e)
Sh1 Hp2
Hp1 Hp0
┴
Brem-
sen
Signal-
Bus
Signal-
Bus
rt bn
16 V ~/
Digital
16 V ~/
Digital
rt bn
┴
┴
▼
▼
Hp Vr
1
2
1
2
1
2
Commander
rt bn rt 1 gn rt 2 gn
ON
1
2
3
4
5
6
7
8
WP
Viessmann
5211
Magnetartikeldecoder
rt bn E gn 4 rt gn 3 rt
brown
e. g. 5211
red
e. g. 5211
Power supply
230 V ~
to main track plug
Programming track
Main track
to programming track plug
Third-rail-tracks:
red = center rail
B = red = J
0 = brown = K

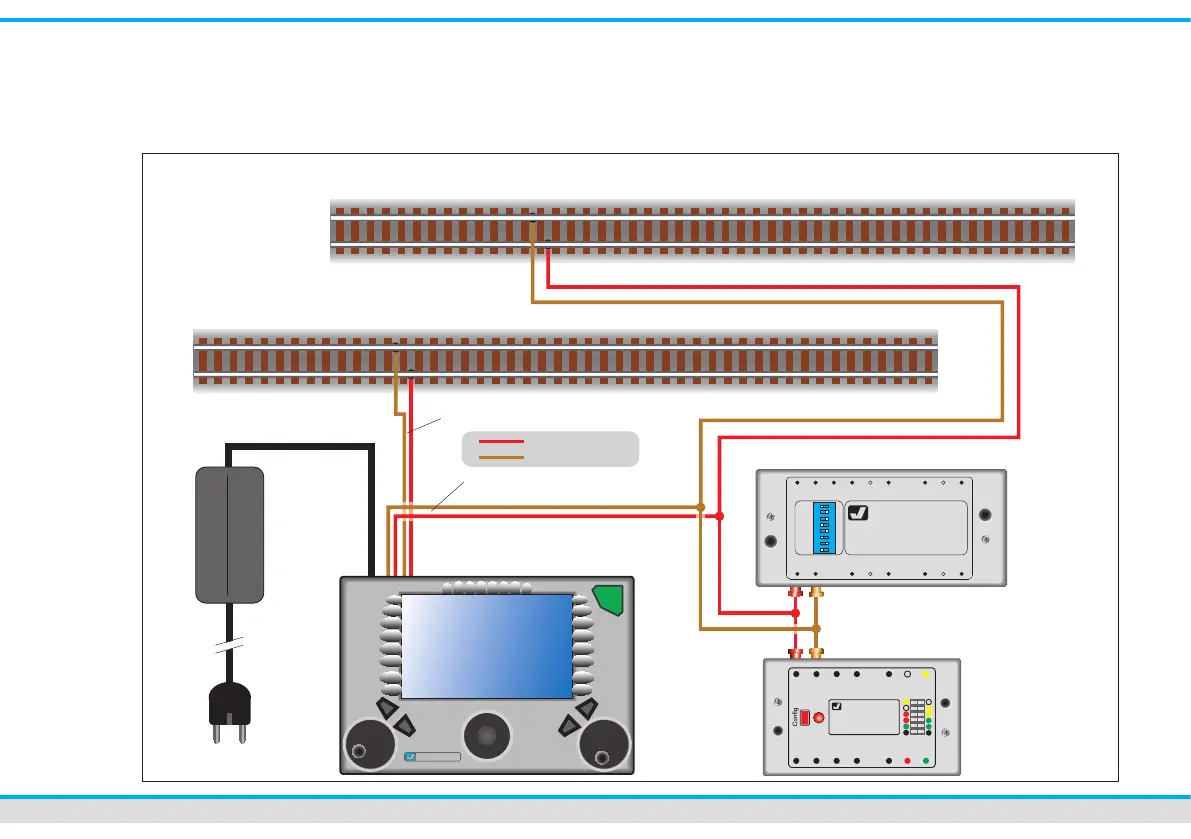

Wiring diagram
Notice: the polarity of the track connec-
tions is irrelevant for DCC- systems.
Using the Märklin Motorola format, please
be mindful of the right polarity, otherwise
older decoders may not work correctly.
