Viessmann VITOCONNECT 100 - Commissioning Procedures; Device Display and Controls; Interpreting LED Status Indicators

12
B
A
1
2
3

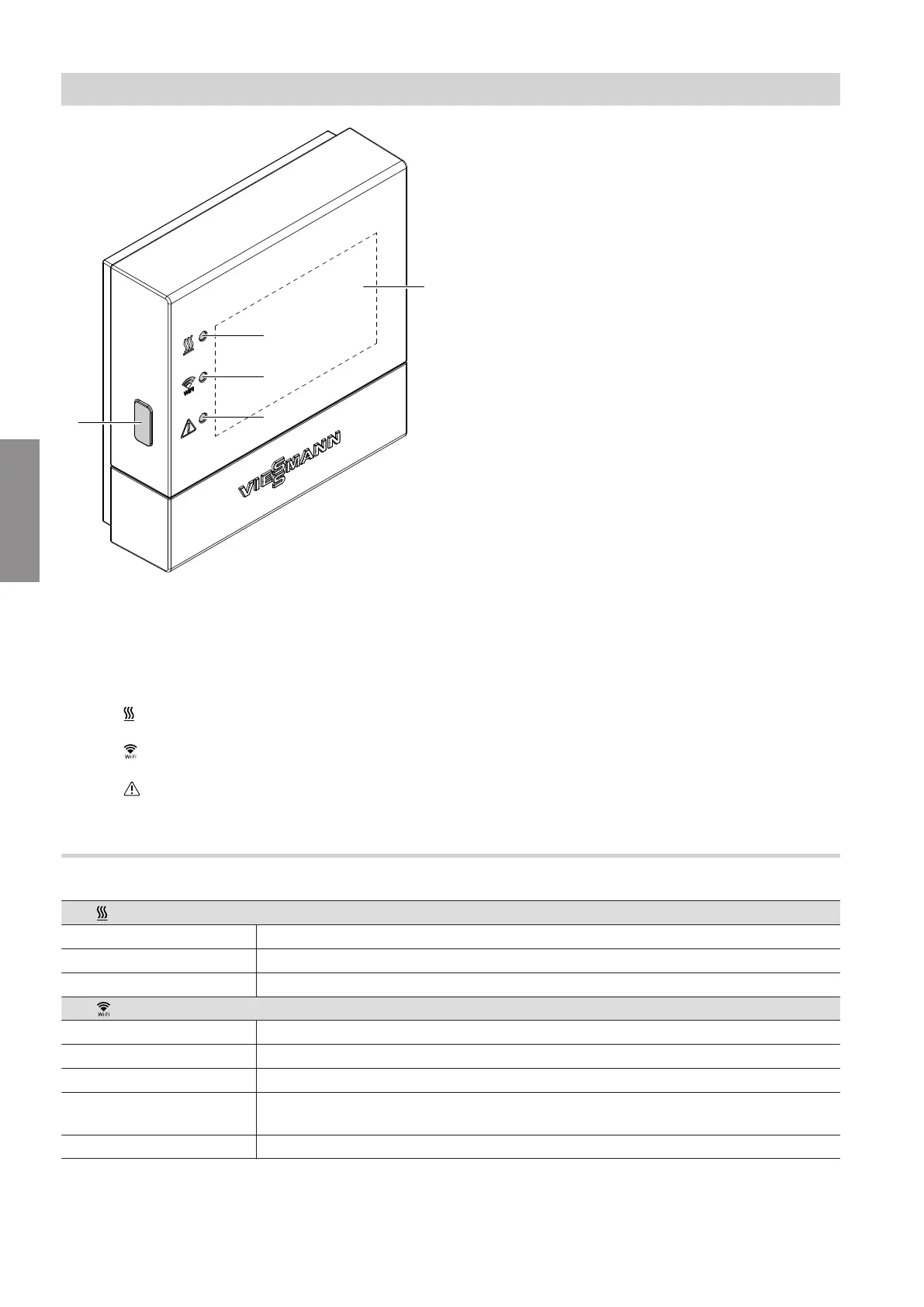

Fig. 5
A
Reset button
B
Label with QR code, "manufacturing details" and
"ID"
1
LED indicates status of communication with heat
generator.
2
LED indicates status of communication with
WiFi and Viessmann server.
3
LED indicates system functions (access point
mode, offline mode, update, fault).
Interpreting the LED indicators
LED – Communication with the heat generator
Flashes yellow. Connection between Vitoconnect 100 and heat source being established
Illuminates green. Connection between Vitoconnect 100 and heat source successfully established
Flashes red. No connection to the heat generator: See page 16.
LED – Communication with the Viessmann server
Flashes yellow. Connection between Vitoconnect 100 and WLAN router being established
Illuminates yellow. Connection between Vitoconnect 100 and WLAN router successfully established
Flashes green. Connection between Vitoconnect 100 and Viessmann server being established
Illuminates green. Connection between Vitoconnect 100 and Viessmann server successfully establish-
ed
Flashes red. No connection to the internet: See page 16.
Commissioning
Display and controls
5785665
Commissioning
