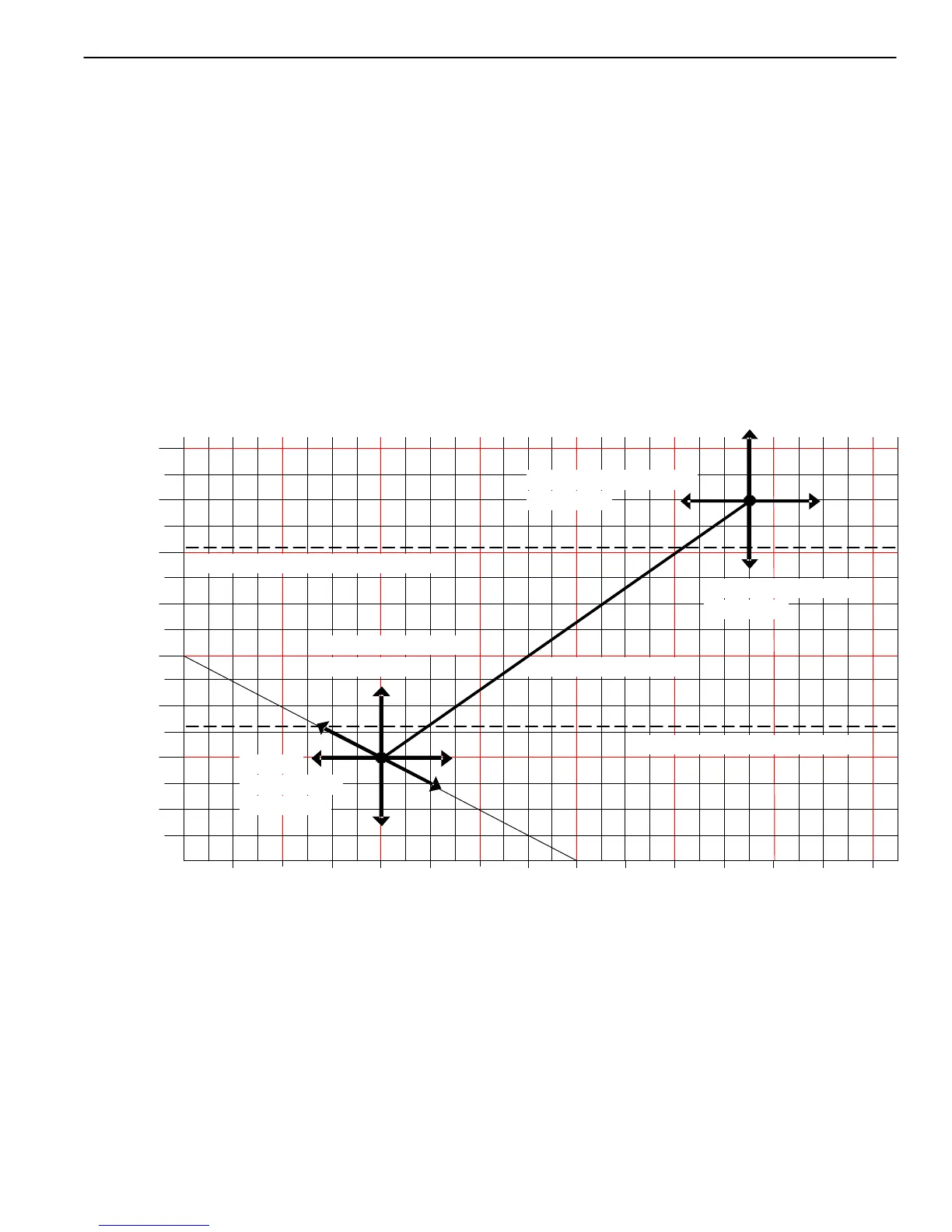

Anatomy of the Cascade Control heating curve
Setting the s tarting point and ending point establishes the sloped line to calculate supply temperature based on
outdoor temperature. The WWSD point is determined by the Outside Temperature Fixed Point. This point
moves left/right on the grid to allow the user to select a specific outdoor temperature.
The s upply temperature that the Cascade Control calculates when emerging out of WWSD is determined by the
Flow Temperature Fixed Point. This point has an up/down movement. Both points can be moved to set the
starting point.
The Outside Temperature Climazone and Flow Temperature Climazone points determine the slope. These points
determine the supply temperature based on a given outdoor temperature. Rather than determining maximum
temperatures, these points serve as a reference for slope calculations. The starting and ending points also serve
as anchors for the Cascade Control curvature settings.
