Getting Started
6

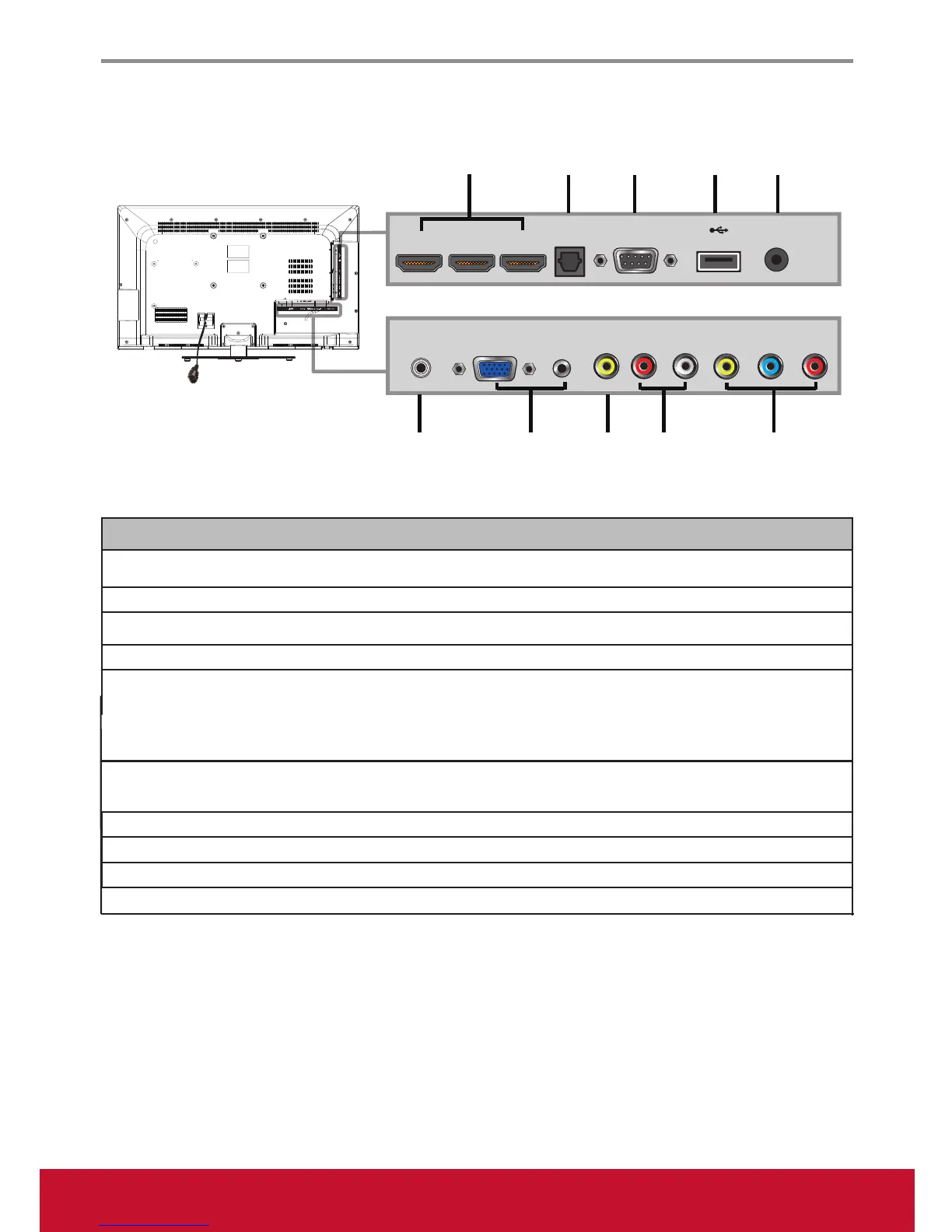

Rear View of the Product
Item Description
10 YPbPr signal input
Connect to the YPbPr output of YPbPr device.
9 Audio input (left/ right)
Connect to the corresponding audio connectors on your A/V device.
5 Earphone Jack
Connect to earphones. By connecting the earphones, you can listen
to the sound from the display through the earphones.
If you connect the earphones, the display speakers will be
muted.
2 SPDIF Optical output
Connect to the SPDIF input of A/V device.
4 USB
Connect to USB devices, such as USB flash drive.
1 HDMI input
Connect to the HDMI output of A/V devices.
6 Remote Control Out
Connect to an IR emitter. This will enable the remote control of
external equipment.
7 PC / VGA in & PC Audio in
Connect to a PC VGA port or a PC line / audio port.
8 Video in
Connect to the video output of A/V device.
3 RS232 signal input
Reserved for the service technician’s use.
REMOTE
CONTROL OUT
PC/VGA IN
PC/VGA
AUDIO IN
VIDEO
IN
AUDIO IN
R L
Y Pb Pr
HDMI1 HDMI2 HDMI3
SPDIF
OUT
RS232RS232
USB
EARPHONE
OUT
1 2 3 4 5
6 7 8
9
10
