Connecting the Display
HD Cable Box/HD Satellite Box
You can also enjoy high-definition programming by subscribing to a high-definition cable service or a high-
definition satellite service. For the optimum picture quality, be sure to connect this device to your display
via the HDMI or component video (with audio) input on the rear side of your display.

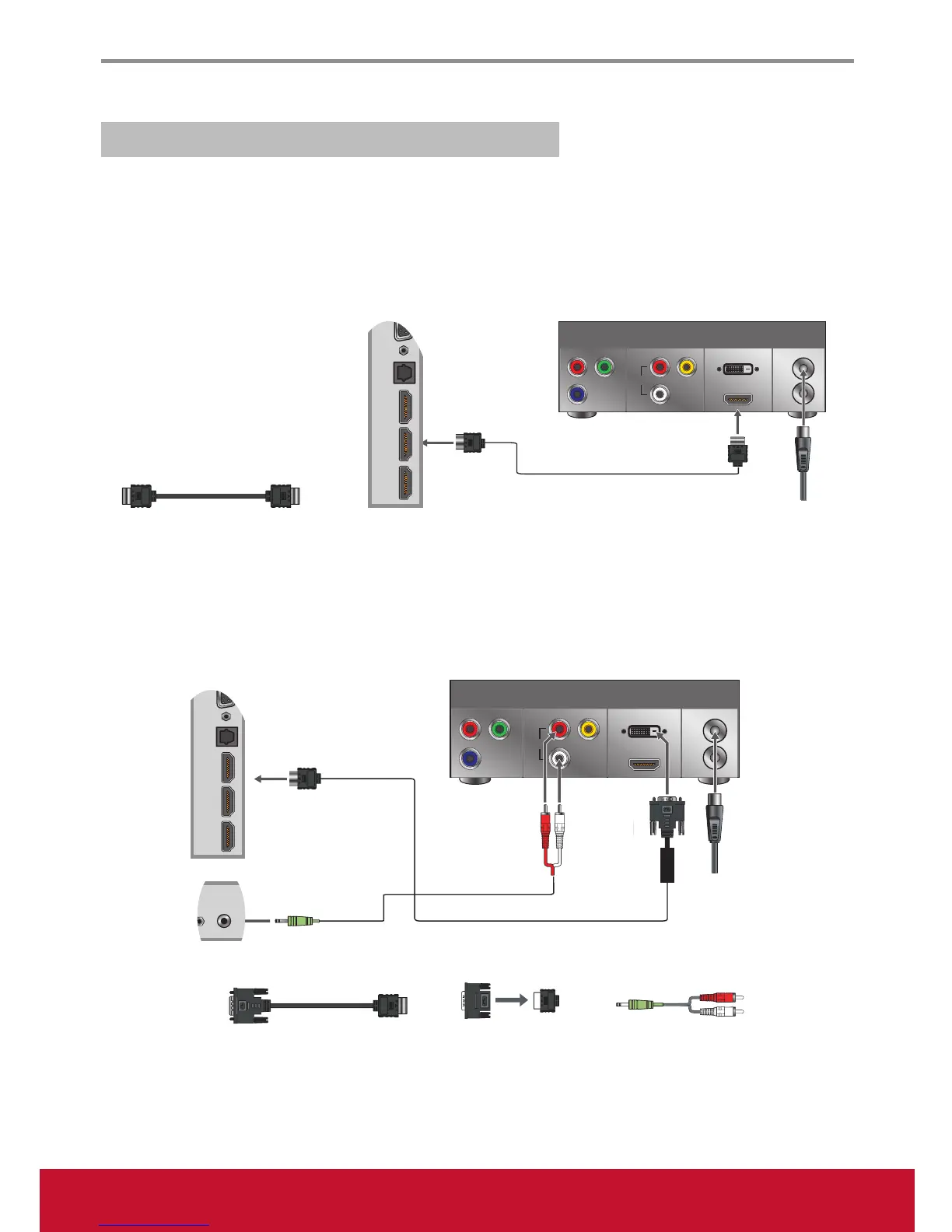

HDMI Connection
HDMI cable
COMPONENT
VIDEO OUT
Pr Y
VIDEO
DVI-HDTV OUT
HDMI OUT
OUT
IN
AUDIO
L
R
Pb
LINE OUT
HDMI cable
HD cable box /
HD satellite box
CATV / Satellite
antenna cable
Rear side of the display
DVI Connection
☼
For DVI connection, connect the HDMI jack (with DVI-to-HDMI cable, or DVI-to-HDMI •
adapter), and connect the audio jack to the AUDIO IN jacks of PC Audio input.
COMPONENT
VIDEO OUT
Pr Y
VIDEO
DVI-HDTV OUT
HDMI OUT
OUT
IN
AUDIO
L
R
Pb
LINE OUT
Audio cable
DVI-to-HDMI cable
Rear side of the display
DVI-to-HDMI cable
CATV / Satellite
antenna cable
DVI-to-HDMI adapter Audio cable
HD cable box /
HD satellite box
DVI cable
HDMI1 HDMI2 HDMI3
SPDIF OUT
RS232RS232
USB
EARPHONE
OUT
HDMI1 HDMI2
HDMI3
SPDIF OUT
RS232RS232
USB
EARPHONE
OUT
IR PASS
THROUGH
PC/VGA IN
PC/VGA
AUDIO IN
VIDEO
IN
AUDIO IN
R L
Y Pb Pr
