ViewSonic CDE4200-L User Manual

Getting Started
8

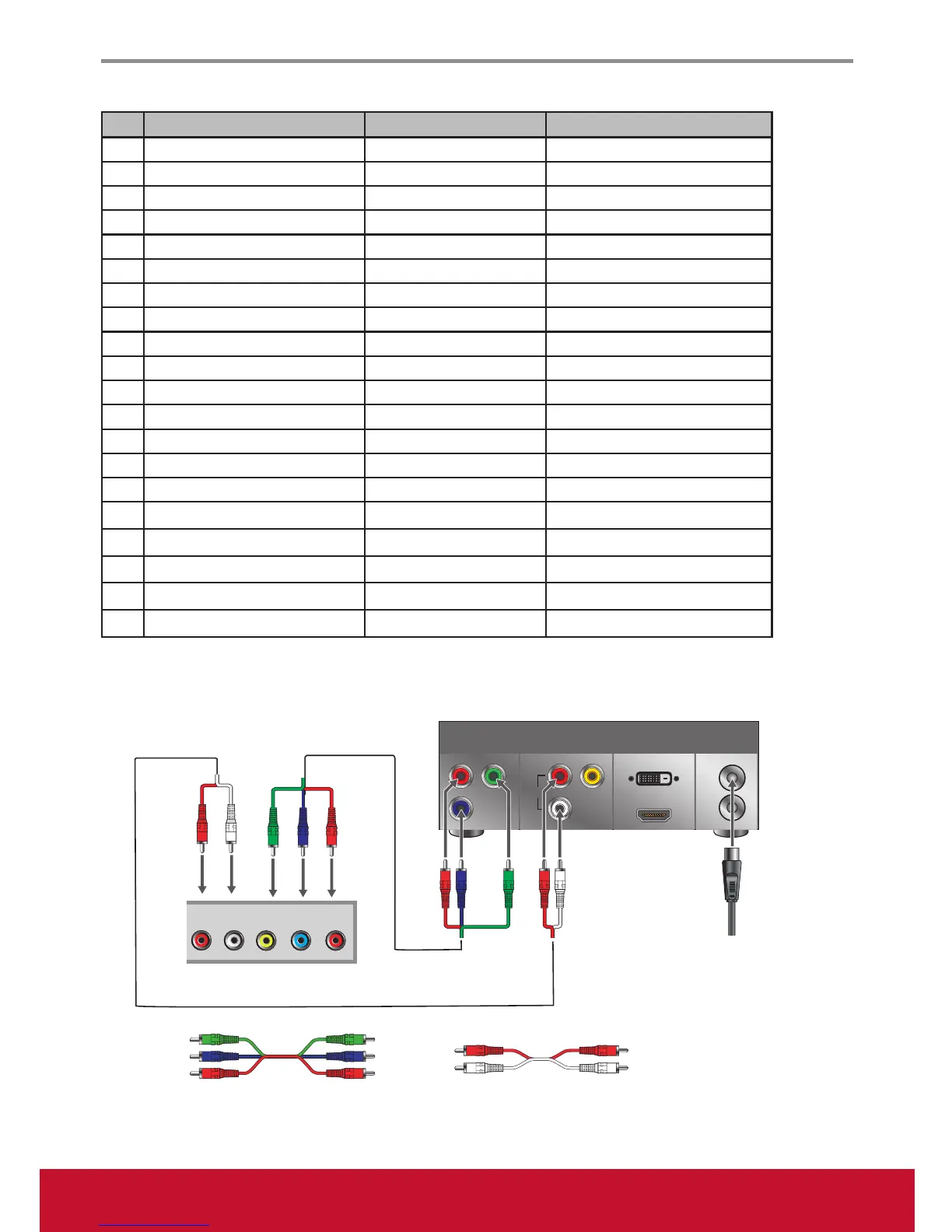

HDMI Timing Reference Chart
No. Mode HDMI DVI
1 VGA60(640x480) V V
2 SVGA60(800x600) V V
3 XGA60(1024x768) V V
4 SXGA60(1280x1024) V V
5 WXGA60(1360x768) V V
6 1280 x 800 V V
7 1440 x 900 V NA
8 1680 x 1050 V NA
9 1920 x1080 V NA
10 480i60 V NA
11 576i50 V NA
12 480P60 V V
13 576P50 V V
14 720P50 V V
15 720P60 V V
16 1080I50 V NA
17 1080I60 V NA
18 1080P50 V NA
19 1080P60 V NA
20 1080P24 V NA
COMPONENT
VIDEO OUT
Pr Y
VIDEO
DVI-HDTV OUT
HDMI OUT
OUT
IN
AUDIO
L
R
Pb
LINE OUT
Audio
cable
Component cable
Rear side of the display
Component cable
CATV / Satellite
antenna cable
Audio cable
HD cable box /
HD satellite box
YPbPr or Component Connection
☼
YPbPr provides better quality than the AV connection.•
IR PASS
THROUGH
PC/VGA IN
PC/VGA
AUDIO IN
VIDEO
IN
AUDIO IN
R L
Y Pb Pr
