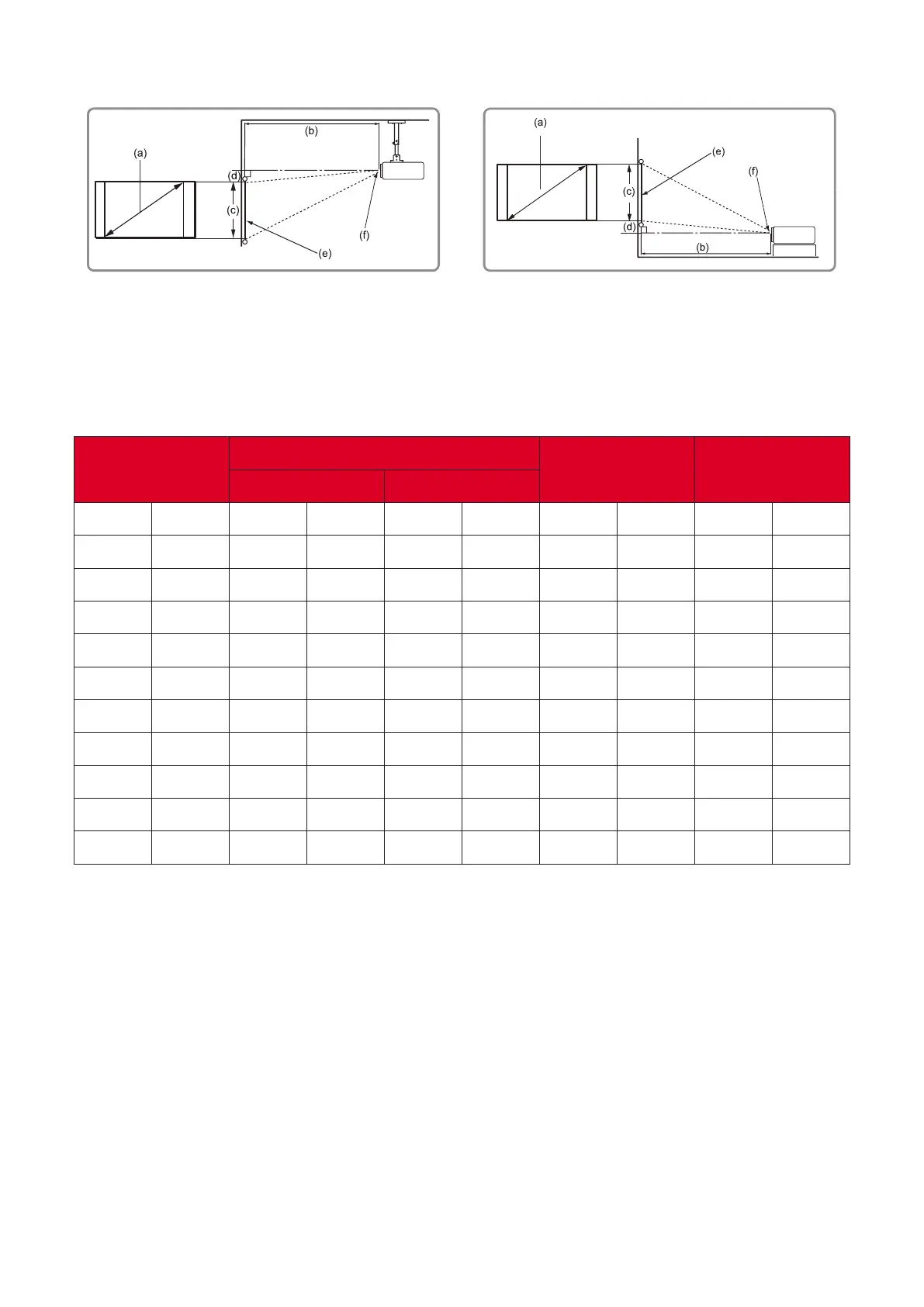

• 4:3 Image on a 16:10 Screen
NOTE:
• (e) = Screen
(f) = Center of Lens
4:3 Image on a 16:10 Screen
(a) Screen Size
(b) Projecon Distance
(c) Image
Height
(d) Vercal
Oset
Minimum Maximum
in.
mm
in.
mm in. mm
in.
mm
in.
mm
40 1016 17.44 443 17.44 443 21.20 538 3.18 81
60 1524 26.16 664 26.16 664 31.80 808 4.77 121
70 1778 30.52 775 30.52 775 37.10 942 5.56 141
80 2032 34.88 886 34.88 886 42.40 1077 6.36 162
100 2540 43.60 1107 43.60 1107 53 1346 7.95 202
120 3048 52.32 1329 52.32 1329 63.60 1615 9.54 242
150 3810 65.40 1661 65.40 1661 79.50 2019 11.92 303
200 5080 87.20 2215 87.20 2215 106 2692 15.90 404
250 6350 109 2769 109 2769 132.50 3365 19.87 505
300 7620 130.80 3322 130.80 3322 159 4039 23.85 606
NOTE:
• These gures are for reference purposes only. Please refer to the actual
projector for the precise dimensions.
• It is recommended that if you intend to permanently install the projector
to physically test the projecon size and distance using the actual projector
before you permanently install it.
