ViewSonic PA700W User Manual

26

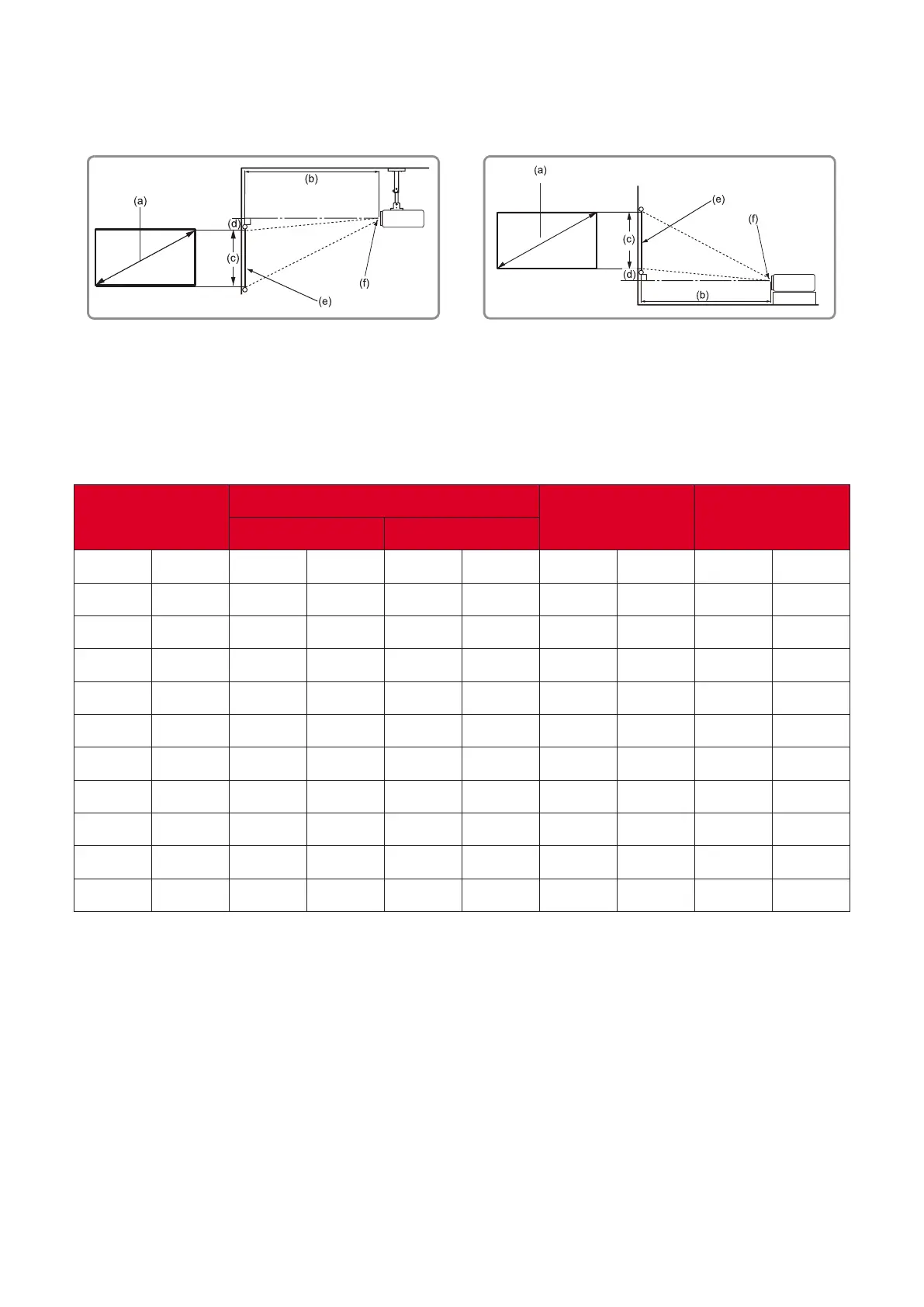

Projecon Dimensions - PS502W
• 16:10 Image on a 16:10 Screen
NOTE:
• (e) = Screen
(f) = Center of Lens
16:10 Image on a 16:10 Screen
(a) Screen Size
(b) Projecon Distance
(c) Image
Height
(d) Vercal
Oset
Minimum Maximum
in.
mm
in.
mm in. mm
in.
mm
in.
mm
40 1016 17.67 449 17.67 449 21.20 538 2.63 67
60 1524 26.51 673 26.51 673 31.80 808 3.94 100
80 2032 35.34 898 35.34 898 42.40 1077 5.26 134
90 2286 39.76 1010 39.76 1010 47.70 1212 5.91 150
100 2540 44.18 1122 44.18 1122 53 1346 6.57 167
120 3048 53.02 1347 53.02 1347 63.60 1615 7.89 200
150 3810 66.27 1683 66.27 1683 79.50 2019 9.86 250
200 5080 88.36 2244 88.36 2244 106 2692 13.14 334
250 6350 110.45 2805 110.45 2805 132.50 3365 16.43 417
300 7620 132.30 3360 132.30 3360 159 4039 19.70 500
NOTE:
• These gures are for reference purposes only. Please refer to the actual
projector for the precise dimensions.
• It is recommended that if you intend to permanently install the projector
to physically test the projecon size and distance using the actual projector
before you permanently install it.

ViewSonic PA700W Specifications

General

Number of colors	1.07 billion colors
Projection distance	1 - 11.11 m
Vertical scan range	23 - 120 Hz
Projection technology	-
Contrast ratio (typical)	12500:1
Screen size compatibility	30 - 300 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-40 - 40 °
Focus	Manual
Offset	112.4 %
Throw ratio	1.544 - 1.72
Digital zoom	2 x
Optical zoom	1.1 x
Zoom capability	Yes
Focal length range	21.85 - 24 mm
Aperture range (F-F)	2.41 - 2.53
Noise level	34 dB
HDCP version	1.4
Number of OSD languages	22
Noise level (economic mode)	25 dB
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, IND, ITA, KOR, POL, POR, RUS, THA, TUR, VIE
Image lag time	33.2 ms
RMS rated power	3 W
Number of built-in speakers	1
Product type	Standard throw projector
Product color	White
Market positioning	Education
Cable lock slot type	Kensington
Lamp type	UHP
Lamp power	240 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	12000 h
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	295 W
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Analog signal format system	NTSC, PAL, SECAM
Supported graphics resolutions	640 x 480 (VGA), 1920 x 1080 (HD 1080)
Composite video in	0
HDMI connector type	Full-size
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating temperature (T-T)	0 - 40 °C
Cables included	AC, VGA
Remote control type	IR

Weight and Dimensions

Depth	234 mm
Width	309 mm
Height	115 mm
Weight	2700 g
Package depth	337 mm
Package width	400 mm
Package height	168 mm
Package weight	3800 g
