ViewSonic PJ506D User Manual

10ViewSonic PJ506D

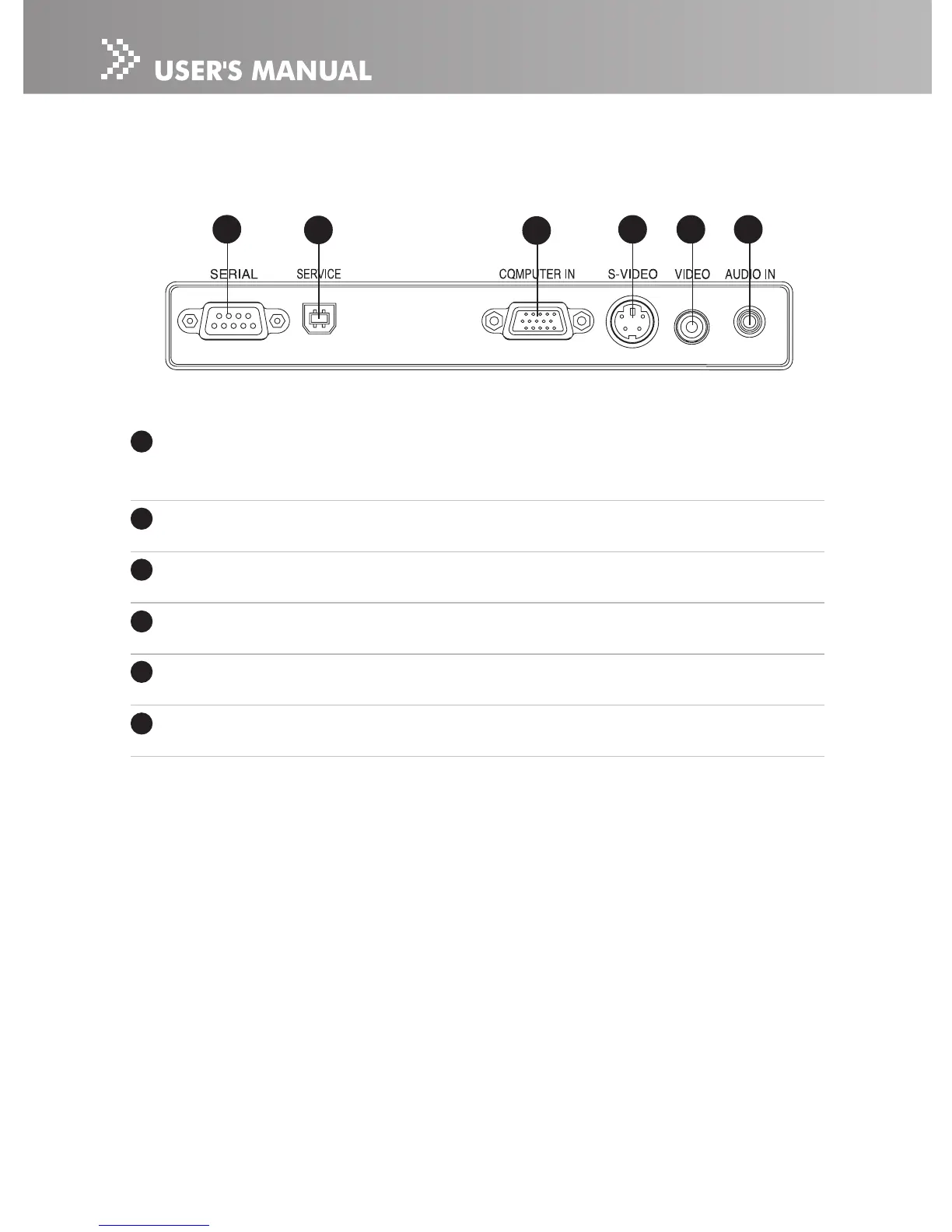

Connection Ports
1 SERIAL
When operating the projector via a computer, connect this to the controlling
computer’s RS-232C port.
2 USB Connector (Service purpose)
This connector is for rmware update.
3 COMPUTER IN
Connects image input signal (analog) to this jack.
4 S-VIDEO
Connects S-Video output from video equipment to this jack.
5 VIDEO
Connects composite video output from video equipment to this jack.
6 AUDIO IN
Connects an audio output from video equipment to this jack.
2 3 5 64 1

ViewSonic PJ506D Specifications

General

Native resolution	SVGA (800x600) pixels
Service life of lamp	3000 h
Bulb power	200 W
Power consumption (typical)	250 W
Input type	NTSC M, NTSC 4.43, PAL, SECAM, HDTV

Weight and Dimensions

Weight	5.7 g
Dimensions (WxDxH)	256 x 223 x 102 mm
