ViewSonic PJ506D User Manual

ViewSonic PJ506D15
Desktop type
Laptop type
2 3
7 5
1
46

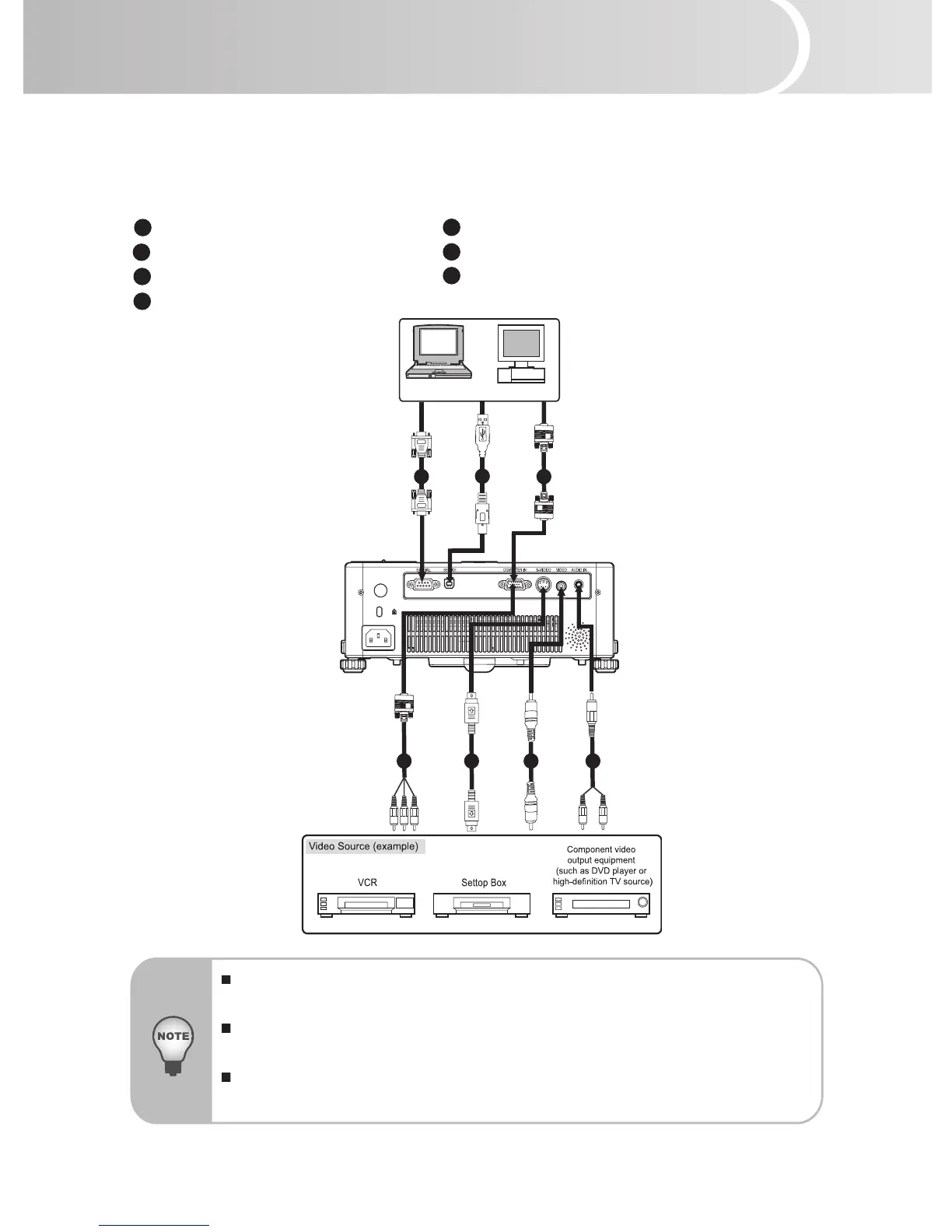

When connecting cable, power cords of both a projector and external
equipment should be disconnected from AC outlet.
The gure above is a sample connection. This does not mean that all of these
devices can or must be connected simultaneously.
The cables that come with the projector may differ from the above illustration.
The included cables are based on actual shipment delivery.
Installation
Connecting the Projector
1 RS232 Cable 5 Composite Video Cable
2 USB Cable 6 S-Video Cable
3 VGA Cable (D-Sub to D-Sub) 7 VGA (D-Sub) to HDTV (RCA) Cable
4 Audio Cable

ViewSonic PJ506D Specifications

General

Native resolution	SVGA (800x600) pixels
Service life of lamp	3000 h
Bulb power	200 W
Power consumption (typical)	250 W
Input type	NTSC M, NTSC 4.43, PAL, SECAM, HDTV

Weight and Dimensions

Weight	5.7 g
Dimensions (WxDxH)	256 x 223 x 102 mm
