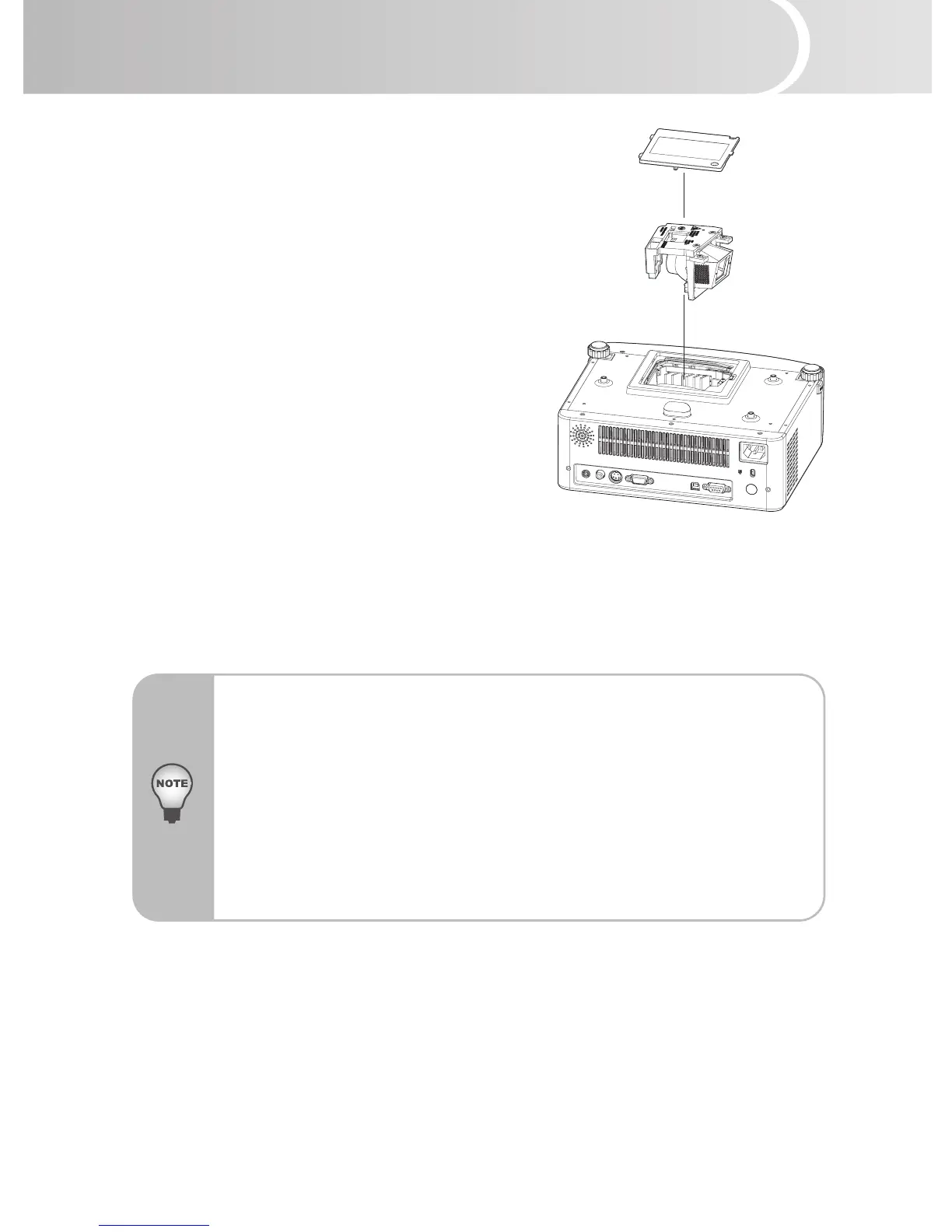

1. Turn off the projector and unplug the AC
power cord.
2. Place a protective sheet (cloth) beneath the
projector. Turn the projector over so you can
access the lamp cover.
3. Loosen the access panel screws and open the
panel.
4. Loosen the screws on the bottom of the lamp
assembly.
5. Grasp the lamp handle and pull the lamp
assembly directly out of the projector.
6. Replace with the new lamp.
7. Tighten the screws on the bottom of lamp
assembly.
8. Tighten the screws on the lamp cover.
 Dispose of the used lamp according to local regulations.
 Ensure that screws are tightened properly. Screws not tightened fully may
result in injury or accidents.
 Since the lamp is made of glass, do not drop the unit and do not scratch the
glass.
 Do not reuse the old lamp. This could cause the lamp to explode.
 Be sure to turn off the projector and unplug the AC power cord before replacing
the lamp.
 Do not use the projector with the lamp cover removed.

ViewSonic PJ506D Specifications

General

Native resolution	SVGA (800x600) pixels
Service life of lamp	3000 h
Bulb power	200 W
Power consumption (typical)	250 W
Input type	NTSC M, NTSC 4.43, PAL, SECAM, HDTV

Weight and Dimensions

Weight	5.7 g
Dimensions (WxDxH)	256 x 223 x 102 mm
