32ViewSonic PJ588D/PJ568D/PJ508D
3.

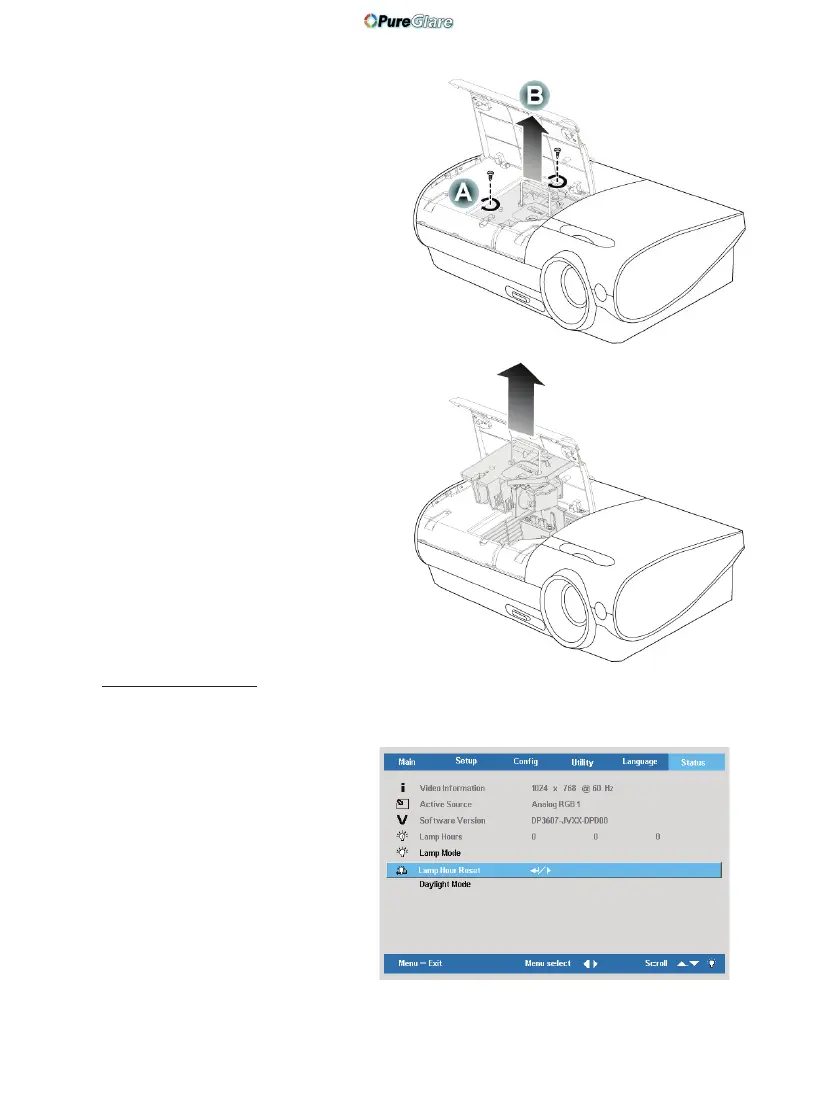

Remove the two screws from the lamp
module [A] and then lift the module
handle up [B].
4.
Pull up rmly to remove the lamp module.
5.
Reverse Steps 1 to 4 to install the new
lamp module.
Note: The lamp module should be oriented
as shown here when replacing.
Resetting the Lamp
After replacing the lamp, reset the lamp hour counter to zero. Refer to the following:
1.
Press the Menu button to open the
Main menu.
2.
Press the cursor button
to move
to the Status menu.
3.
Press the cursor button
to move
to Lamp Hour Reset.
4.
Press the Enter button.
A message screen appears.
