2ViewSonic PJ588D/PJ568D/PJ508D
Views of Projector Parts

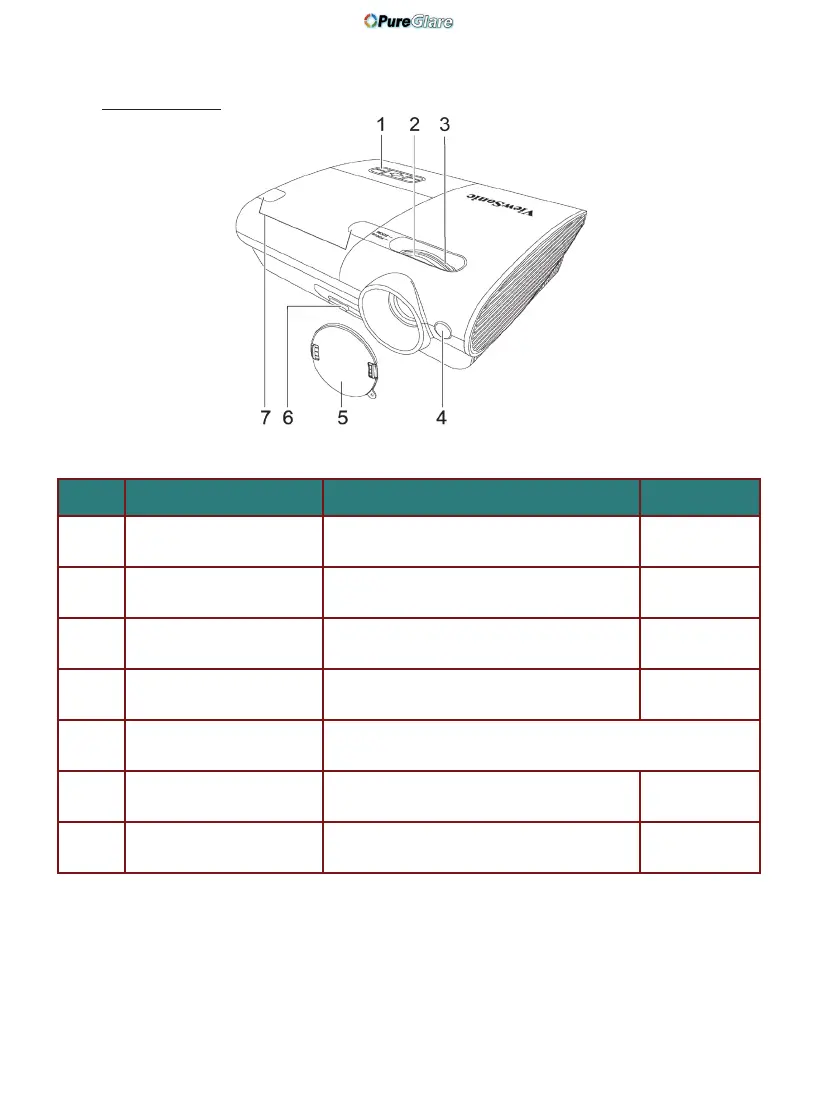

Front-left view
ITEM LABEL DESCRIPTION SEE PAGE:
1.
OSD buttons and LEDs See below 3
2.
Focus Turn the lens to focus 15
3.
Zoom Enlarge the projected image 15
4.
IR receiver* Receiver for IR signal from remote control 4
5.
Lens cap Attach the lens cap to protect lens when not in use
6.
Height adjuster
Adjuster drop down when adjuster button is
pushed
14
7.
Screw covers Lift covers to remove lid screws 32
Important:
Grill openings on the projector allow for good air circulation, which keeps the projector lamp cool. Do
not obstruct any of the grill openings.
*ViewPen sensor is optional.
