ViewSonic PJD5126 User Manual

6

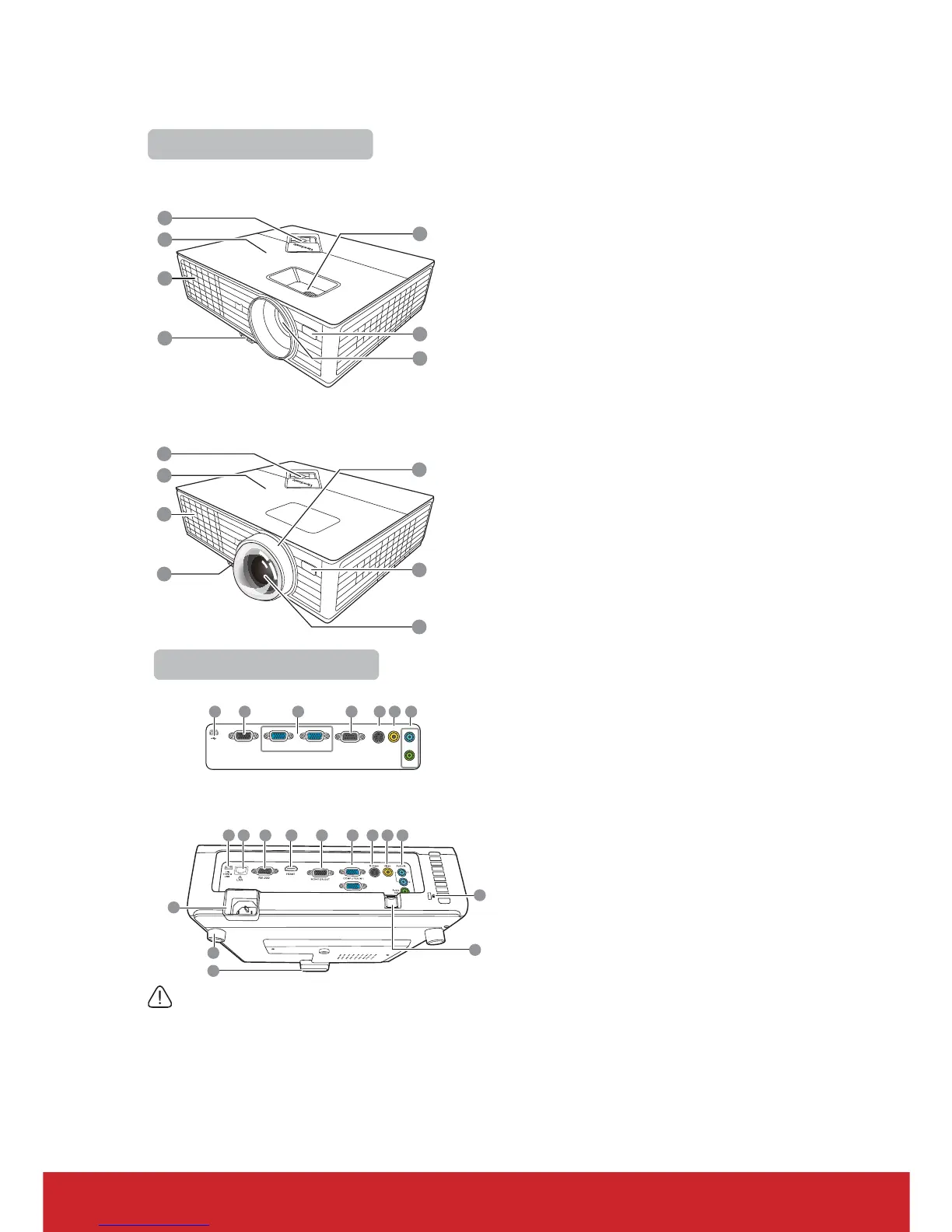

Projector exterior view
1. External control panel
(See "Projector" on page 7 for
details.)
2. Lamp cover
3. Vent (heated air exhaust)
4. Quick-release button
5. Focus and Zoom ring
6. Front IR remote sensor
7. Projection lens
8. Type B USB port
9. RJ45 LAN input port
10. RS-232 control port
11. HDMI port
12. RGB signal output socket
13. RGB (PC)/Component video
(YPbPr/YCbCr) signal input
socket-1/2
14. S-Video input socket
15. Video input socket
16. Audio signal input socket
Audio signal output socket
17. Kensington anti-theft lock slot
18. AC power cord inlet
19. Rear adjuster foot
20. Quick-release foot
21. Security bar
Connects a commercially available
theft prevention cable.
Warning
• THIS APPARATUS MUST BE EARTHED.
• When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring,
or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should
occur during operation of the unit, operate the disconnect device to switch the power supply
off, or disconnect the power plug.
Front/upper side
1
2
3
4
5
6
7
1
2
3
4
5
6
7
PJD5126/PJD5226/PJD5226w/
PJD6223/PJD6253/PJD6553w
PJD6353/PJD6383/
PJD6653w/PJD6683w
17
20
19
TYPE B
USB
COMPUTER IN 2
RS-232
MONITOR OUT
COMPUTER IN 1
S-Viseo
Video
Audio in
Audio
out
8 9 11 12
14 15 16
10
13
8
14 15 16
10
1312
18
21
PJD5126/PJD5226/PJD5226w
PJD6223/PJD6253/PJD6353/PJD6383/
PJD6653w/PJD6553w/PJD6683w
Rear/lower side

ViewSonic PJD5126 Specifications

General

Native aspect ratio	16:9
Projection distance	1.2 - 10 m
Vertical scan range	50 - 120 Hz
Projection technology	DLP
Supported aspect ratios	4:3, 16:9
Contrast ratio (dynamic)	15000:1
Contrast ratio (typical)	-
Screen size compatibility	30 - 300 \
Projector native resolution	SVGA (800x600)
Focus	Manual
Throw ratio	1.86 - 2.04:1
Zoom capability	Yes
Focal length range	- mm
Lamp power	180 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	6000 h
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, SECAM
RMS rated power	2 W
Number of built-in speakers	1
Built-in display	No
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Noise level	32 dB
Certification	CB, UL, cUL, FCC (including ICES-003), CE, UL-Argentina, NOM, GS, GOST-R, SASO, Ukraine, PSB, C-Tick, Korean-KC, CCC, CECP, WEEE
Noise level (economic mode)	29 dB
Product color	Black
Market positioning	Presentation
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	243 W
Operating altitude	1800 - 3048 m
Storage temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	RoHS, ENERGY STAR

Weight and Dimensions

Depth	242 mm
Width	294 mm
Height	84 mm
Weight	2600 g
Package depth	192 mm
Package width	380 mm
Package height	345 mm
Package weight	4100 g
