7

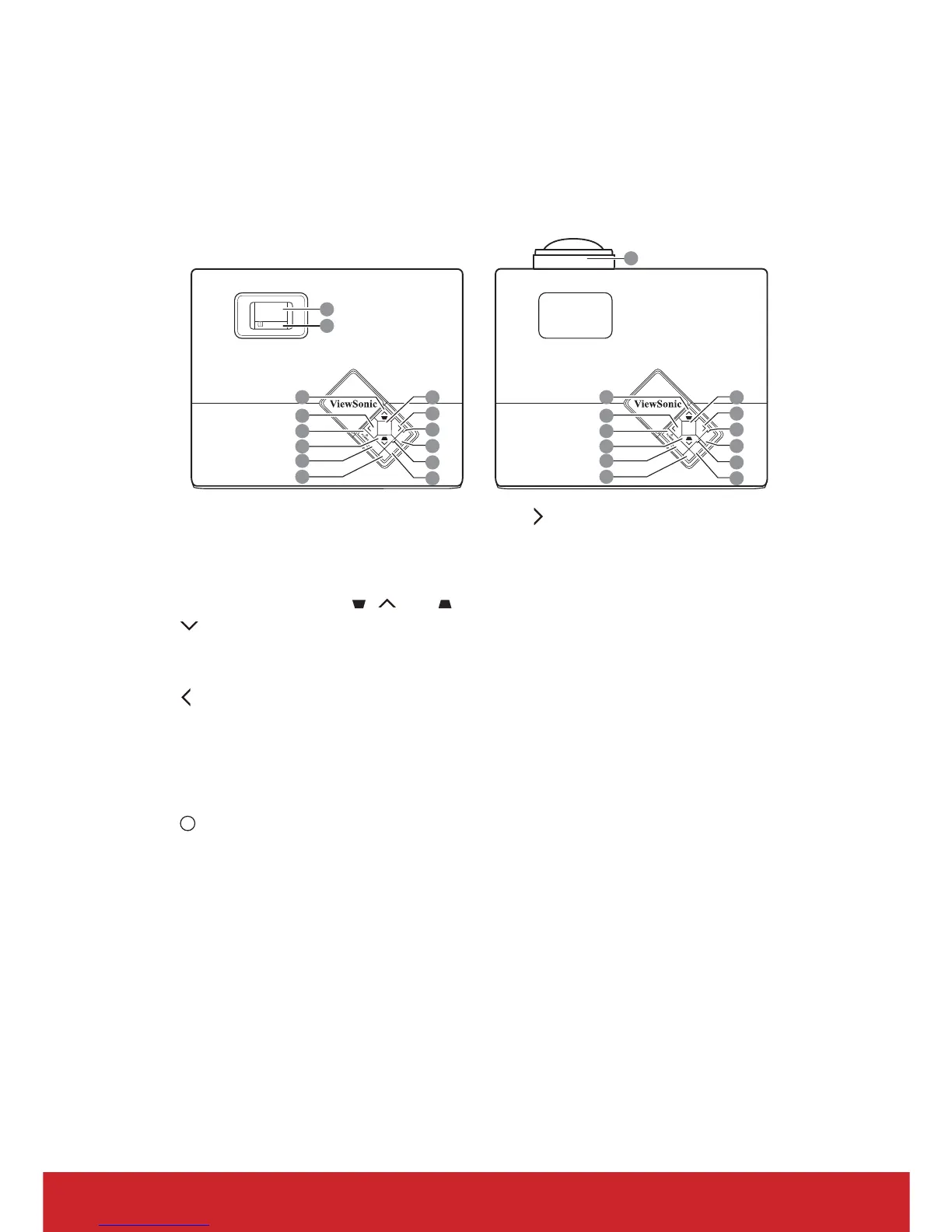

Controls and functions
Projector
1. Focus ring
Adjusts the focus of the projected image.
2. Zoom ring
Adjusts the size of the image.
3. Keystone/Arrow keys ( / Up, /
Down)
Manually corrects distorted images
resulting from an angled projection.
4. Left/Blank
Hides the screen picture.
5. POWER indicator light
Lights up or flashes when the projector is
under operation.
POWER
Toggles the projector between standby
mode and on.
6. SOURCE
Displays the source selection bar.
7. Top IR remote sensor
Not available for the PJD5126/PJD5226/
PJD5226w.
8. MENU/EXIT
Turns on the On-Screen Display (OSD)
menu. Goes back to previous OSD menu,
exits and saves menu settings.
9. Right
Activates panel key lock.
When the On-Screen Display (OSD)
menu is activated, the #3, #4, and #9 keys
are used as directional arrows to select the
desired menu items and to make
adjustments.
10. LAMP indicator light
Indicates the status of the lamp. Lights up
or flashes when the lamp has developed a
problem.
11. AUTO
Automatically determines the best picture
timings for the displayed image.
12. TEMPerature indicator light
Lights up red if the projector's
temperature becomes too high.
13. MODE/ENTER
Selects an available picture setup mode.
Enacts the selected On-Screen Display
(OSD) menu item.
TEMP
LMMP
MODE
ENTER
AUTO
SOURCE
MENU
EXIT
TEMP
LMMP
MODE
ENTER
AUTO
SOURCE
MENU
EXIT
1
2
3
4
5
6
3
8
9
10
12
13
11
7
1
3
4
5
6
3
8
9
10
12
13
11
7
PJD5126/PJD5226/PJD5226w/
PJD6223/PJD6253/PJD6553w
PJD6353/PJD6383/
PJD6653w/PJD6683w
