ViewSonic PJD5126 User Manual

72

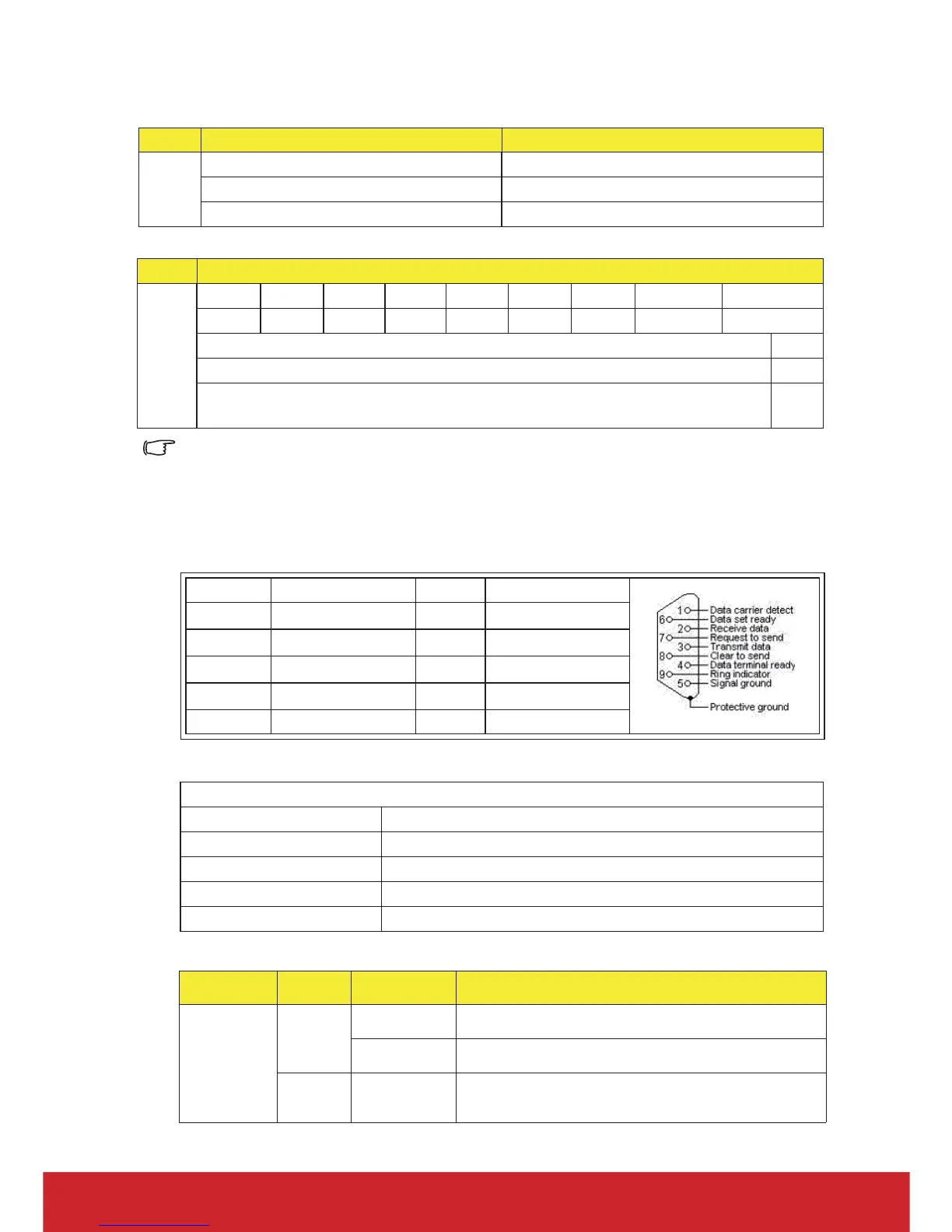

RJ45 response table
• The RJ45 commands can only be received via TCP port 4661.
• Please refer to the below RS232 command table for the commands.
RS232 command table
<Pin assignment for this two end>
<Interface>
<RS232/RJ45 command table>
Status Response Response Code
Write
Normal => ACK 0x03 0x14 0x00 0x00 0x00 0x14
Incorrect => ERROR ACK 0x00 0x14 0x00 0x00 0x00 0x14
Timeout (>100ms) N/A
Status Response Code
Read
BYTE0 BYTE1 BYTE2 BYTE3 BYTE4 BYTE5 BYTE6 BYTE7~N BYTE N+1
0x05 0x14 0x00 LSB MSB 0x00 0x00 Data Checksum
Ex1. Read power status: 0x05 0x14 0x00 0x03 0x00 0x00 0x00 0x01 0x18 = On
Ex2. Read brightness: 0x05 0x14 0x00 0x04 0x00 0x00 0x00 0x32 0x00 0x4A = 50
Ex3. Read lamp hours: 0x05 0x14 0x00 0x06 0x00 0x00 0x00 0x28 0x00
0x00 0x00 0x42
= 40
Pin Description Pin Description
1NC2RX
3TX4NC
5GND6NC
7RTSZ8CTSZ
9NC
RS-232 protocol
Baud Rate 115200 bps (default)
Data Length 8 bit
Parity Check None
Stop Bit 1 bit
Flow Control None
Function Status Action cmd
Power
Write
Turn on 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x00 0x00 0x5D
Turn off 0x06 0x14 0x00 0x04 0x00 0x34 0x11 0x01 0x00 0x5E
Read
Power status
(on/off)
0x07 0x14 0x00 0x05 0x00 0x34 0x00 0x00 0x11 0x00
0x5E

ViewSonic PJD5126 Specifications

General

Native aspect ratio	16:9
Projection distance	1.2 - 10 m
Vertical scan range	50 - 120 Hz
Projection technology	DLP
Supported aspect ratios	4:3, 16:9
Contrast ratio (dynamic)	15000:1
Contrast ratio (typical)	-
Screen size compatibility	30 - 300 \
Projector native resolution	SVGA (800x600)
Focus	Manual
Throw ratio	1.86 - 2.04:1
Zoom capability	Yes
Focal length range	- mm
Lamp power	180 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	6000 h
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, SECAM
RMS rated power	2 W
Number of built-in speakers	1
Built-in display	No
HDMI ports quantity	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	2
Connectivity technology	Wired
Noise level	32 dB
Certification	CB, UL, cUL, FCC (including ICES-003), CE, UL-Argentina, NOM, GS, GOST-R, SASO, Ukraine, PSB, C-Tick, Korean-KC, CCC, CECP, WEEE
Noise level (economic mode)	29 dB
Product color	Black
Market positioning	Presentation
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	243 W
Operating altitude	1800 - 3048 m
Storage temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	RoHS, ENERGY STAR

Weight and Dimensions

Depth	242 mm
Width	294 mm
Height	84 mm
Weight	2600 g
Package depth	192 mm
Package width	380 mm
Package height	345 mm
Package weight	4100 g
