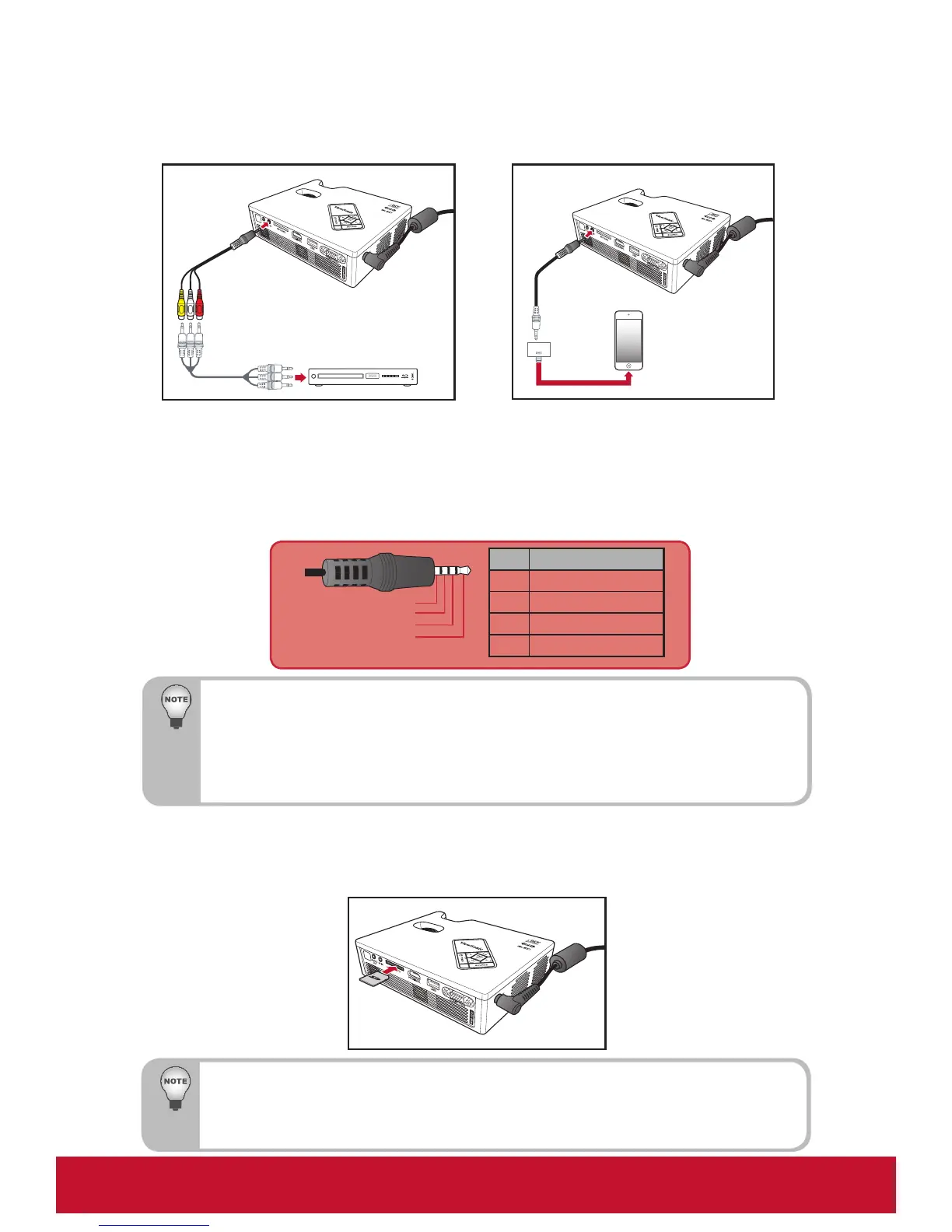

Connect Input Source - Composite AV IN

(PLED-W800 only)

For video and

audio input

Connect to DVD player Connect to iPod Touch 5

1. Connect the AV input source.

2. After powering on the projector, press the SOURCE button on the control panel

to select the appropriate input source.

 All other brand and product names are trademarks or registered trademarks of their respective

companies.

 The cables connecting the video output devices are not supplied, please contact the device vendor.

 iPod nano/iPod touch/iPhone/iPod classic (version 5 and above).

 Designed for iPod/iPhone/Smart Phone/PMP with TV out functions. Using with devices with audio signal

voltage > 0.3Vrms is not recommended.

 Composite mode only supports video input source.

 To remove the SD card, simply pull out the memory card from the slot.

 Do not remove the SD card while the projector is projecting images from the card. This can cause data

loss or damage the card.

 Supports SD card size up to 32GB.

 The SD card is not included in the package.

*AV cable is an

optional accessory

1234

CVBS

GND

Audio (Right)

Audio (Left)

$XGLR9LGHR&DEOH6SHFL¿FDWLRQV

PIN Signal

1 CVBS

2 GND

3 Audio (Right)

4 Audio (Left)

Insert SD Card (PLED-W800 only)

Insert an SD card into the slot with the gold contacts facing down.

LOCK
