14

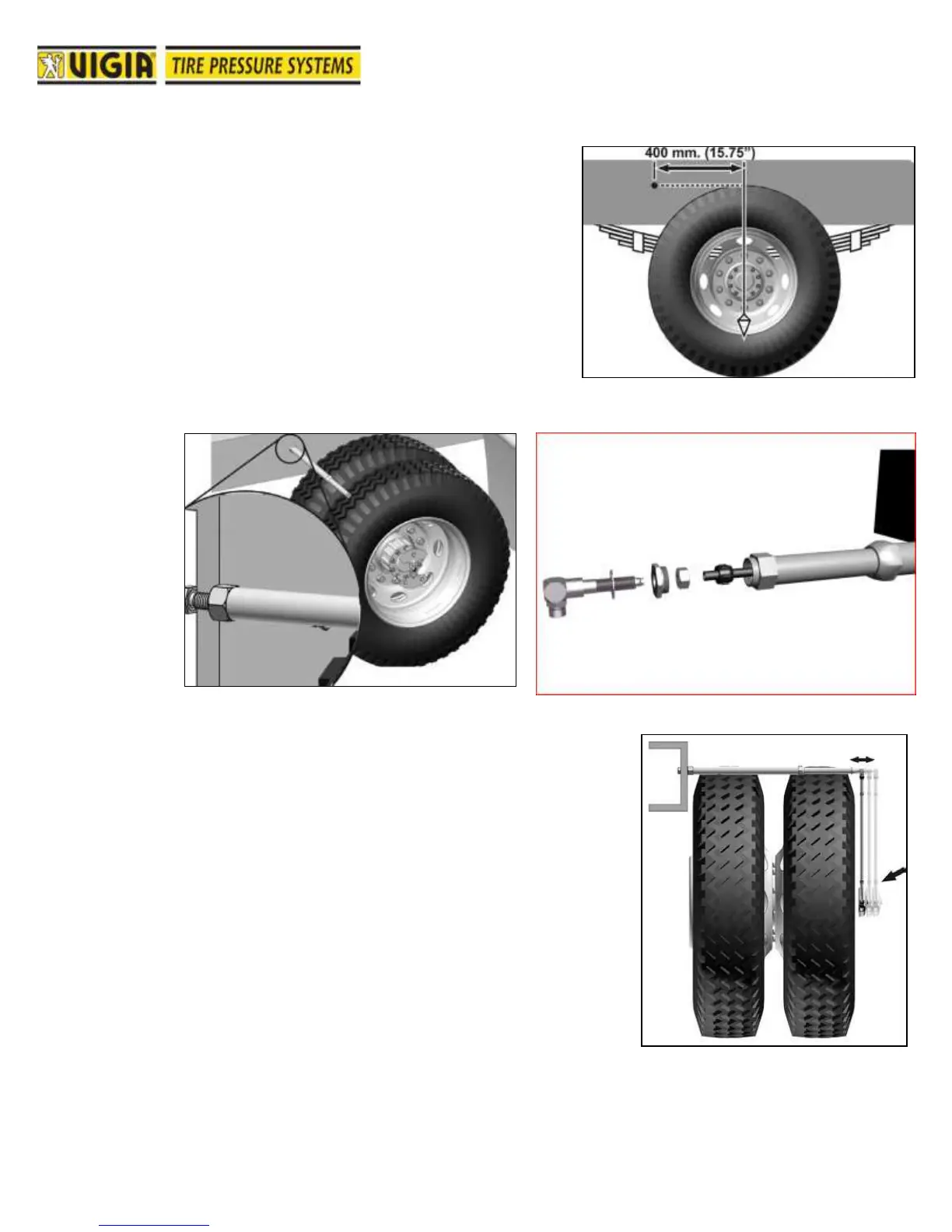

2- Take the selected bolt out.
3- Secure the body coupling mounting pipe with the
bolt provided. Tighten with a torque of
approximately 115 lbs/sqft. (Fig. 47).
The body coupling mounting pipe must remain
with the VIGIA hose's outlet hole facing down.
4- Install body coupling to the adjustable mounting
pipe as indicated in Figure 48. Note that body
coupling’s spacer is removed.
5- Pass the required hose length through the hole
and connect the body coupling.
6- Screw the mounting pipe end with 15 lbs/sqft.
torque turning the hose at the same time to
avoid strangling.
7- Adjust the length of the adjustable mounting
pipe making sure that body coupling end is not
exposed. Fix position with corresponding conic
nut.
