16
Optional Adjustable body coupling mounting pipe with Bolt NF 5/8” x 2 ½” Bored Ø 6.25 mm
To be used when the Vigia hose would become strangled should the standard adjustable pipe is
employed.

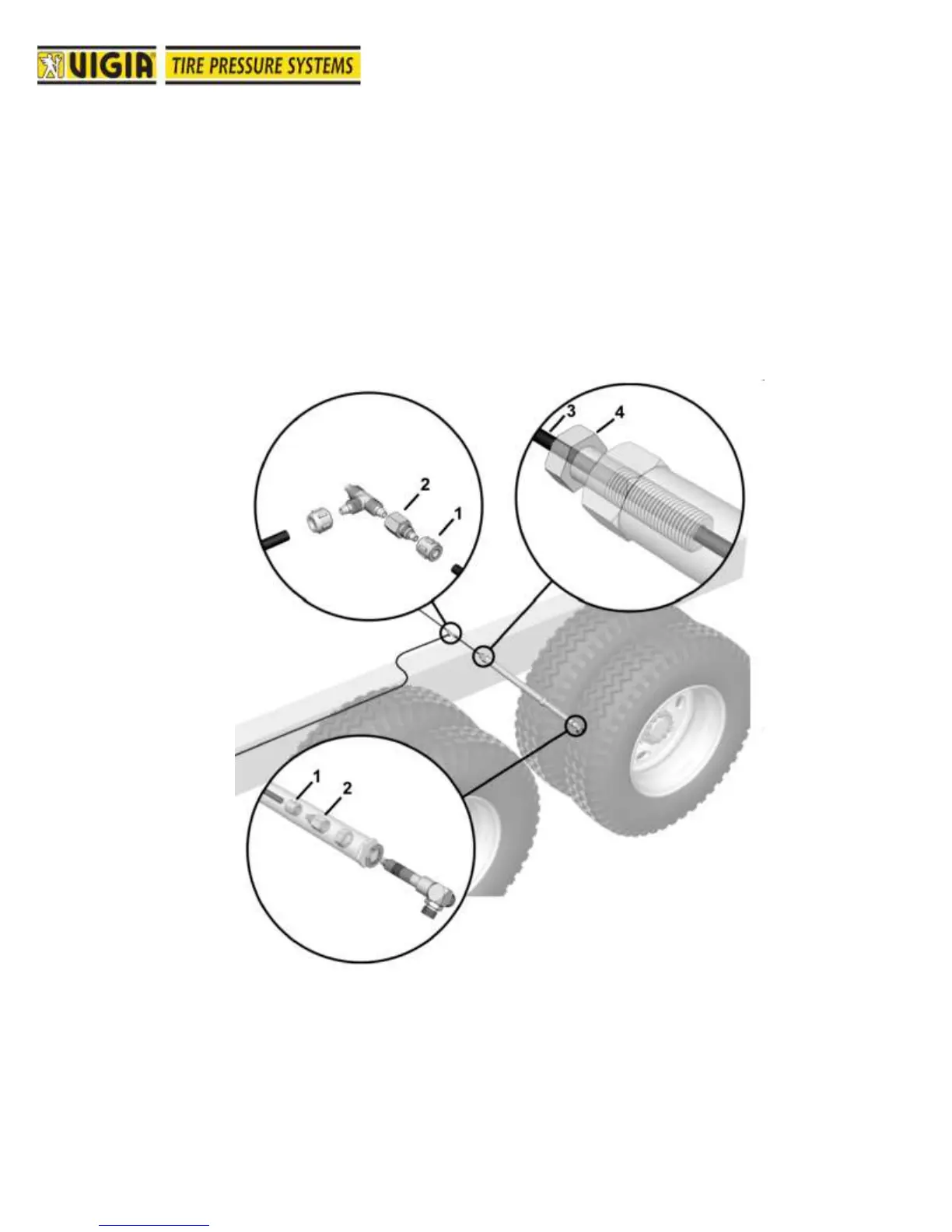

Figure 51 shows installation and parts required for this mounting pipe.
1 X1414.A013-8 1/4” hose fastening nut
2 X2433.A079-5 Adaptor 5/16” to 1/4”
3 X9201.A024-7 Hose Vigia 143 Ø 1/4”
4 X9402.A112-3 Bolt NF 5/8” x 2 ½”- Bored Ø 6.25mm
Note: Adaptor 5/16” to 1/4” must be used with “O”
ring X9601.A022-0
