Viglen BX130 – VIG385P User Manual
24
Motherboard Connectors

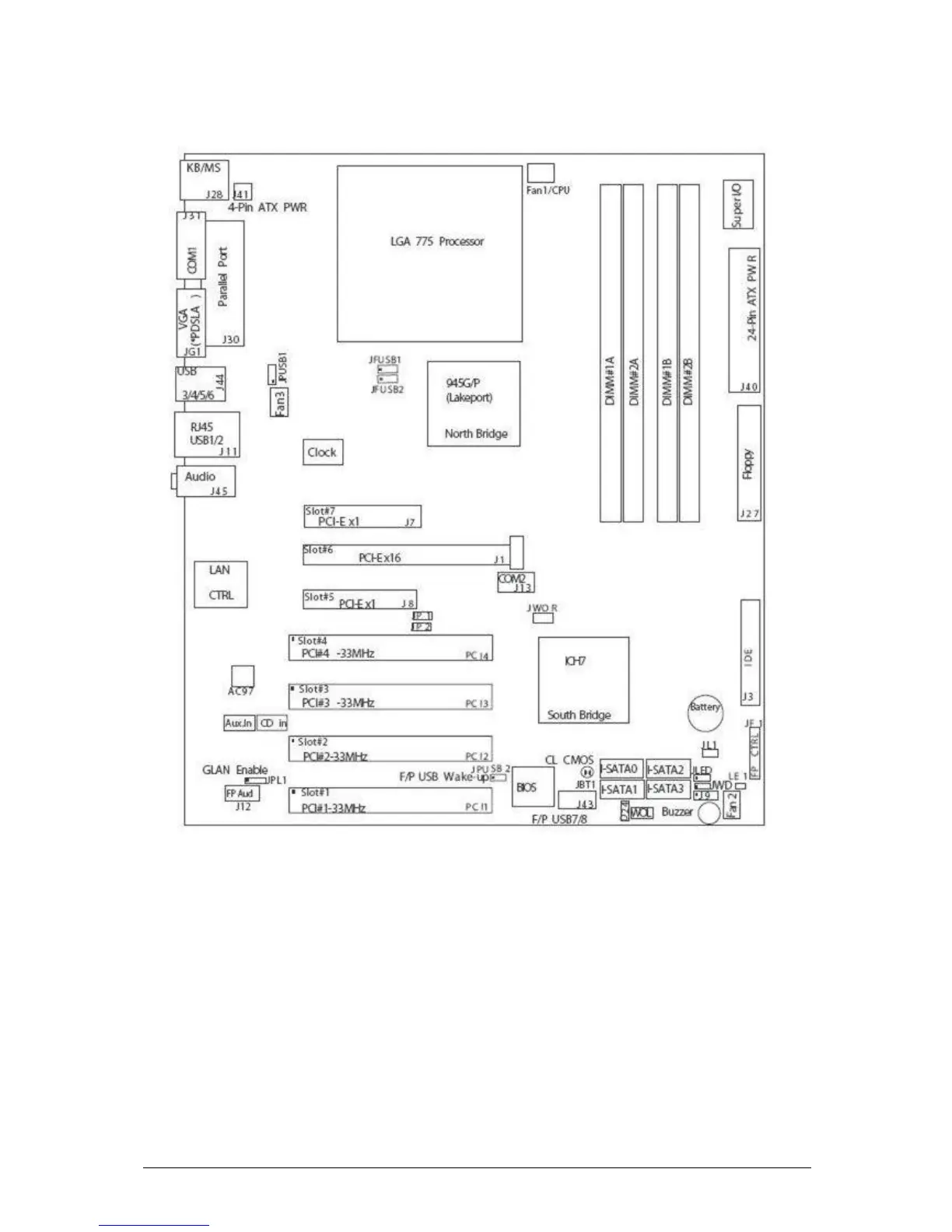

Figure 7: Motherboard Connectors
Note: All the connectors on the Motherboard shown in Figure 7 are keyed in order to prevent
incorrect insertion. These are denoted in the above picture by the black/dark areas.
