Floppy Connector

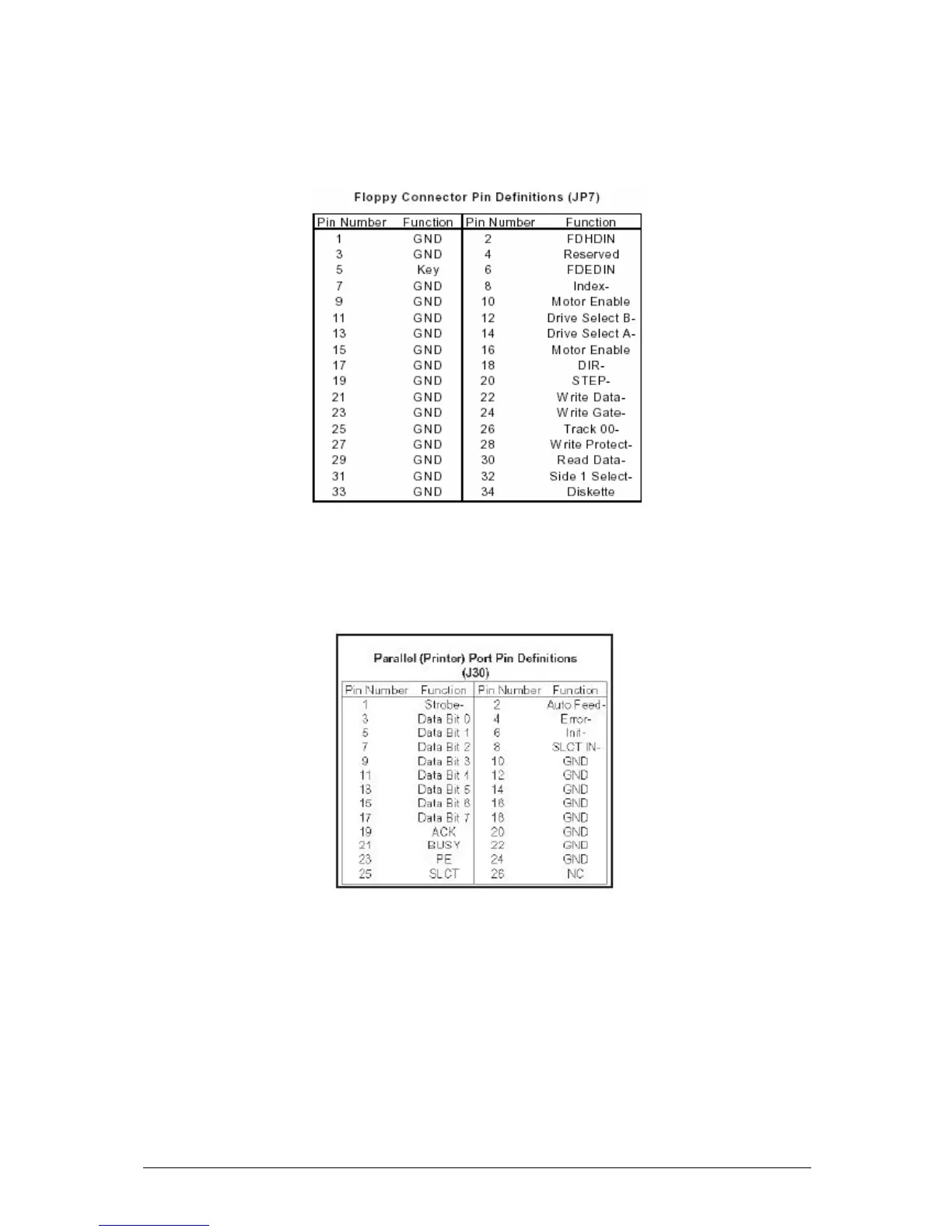

The Floppy connector is located on JP7. See the table below for Pin definitions.
IDE Connectors
There are no jumpers to configure the onboard IDE#1 and #2 connectors (at J2 and
J3, respectively). See the table below for pin definitions.
Other Information- Reliability
The mean time between failures (MTBF) prediction is calculated using component
and subassembly random failure rates. The calculation is based on the Bellcore
Reliability Prediction Procedure, TR-NWT-000332, Issue 4, September 1991.
