Connector Pin Signal Details

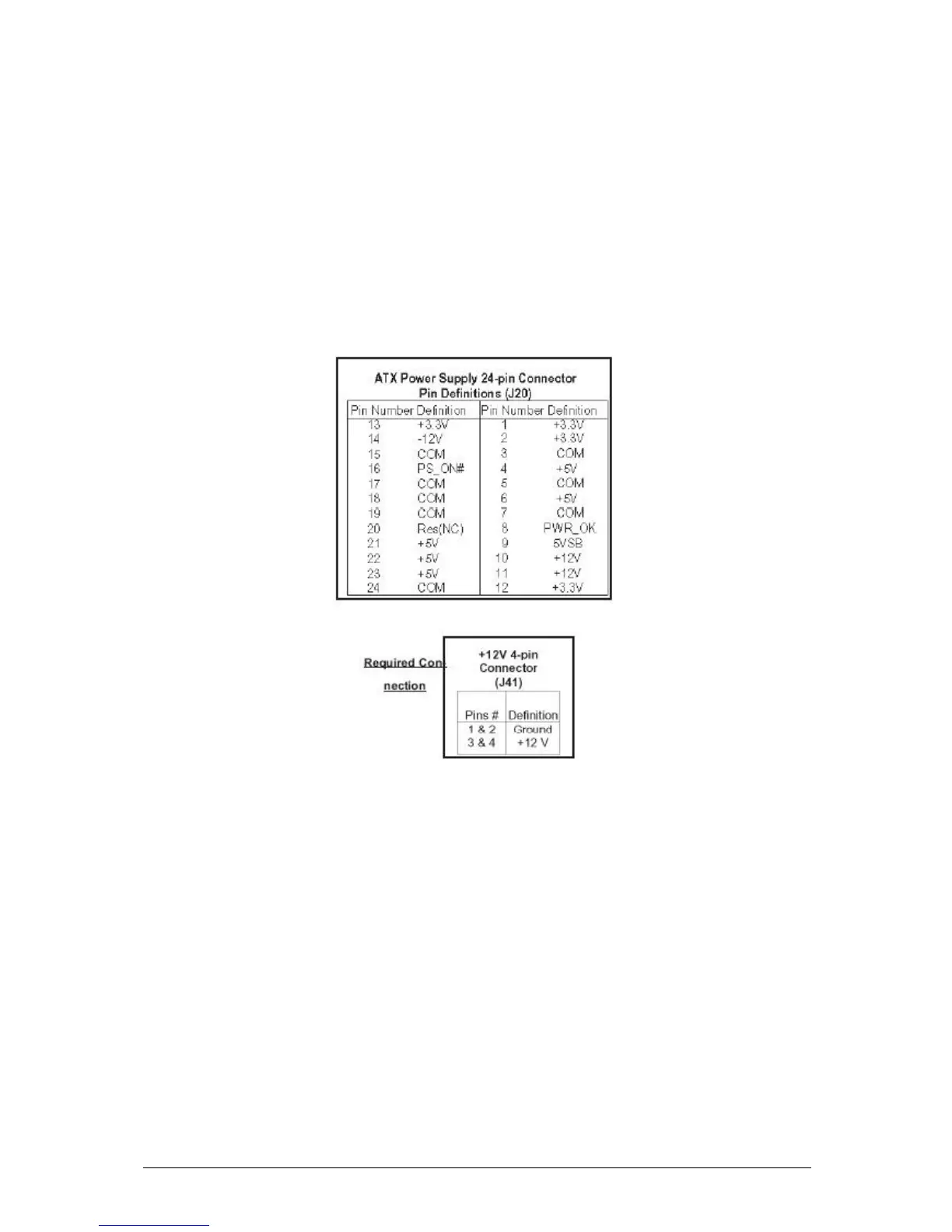

ATX Power Connector
The primary power supply connector (J40) on the PDSLA/PDSLE meets the SSI
(Superset ATX) 24-pin specification. Refer to the table below for the pin definitions of
the ATX 24-pin power connector. You must also connect the 4-pin (J41) processor
power connector to your power supply. Refer to the table below for the J41 (12V)
connector.
