Wake-On-Ring
The Wake-On-Ring header is designated JWOR. This function allows your computer
to receive and "wake-up" by an incoming call to the modem when in suspend state.

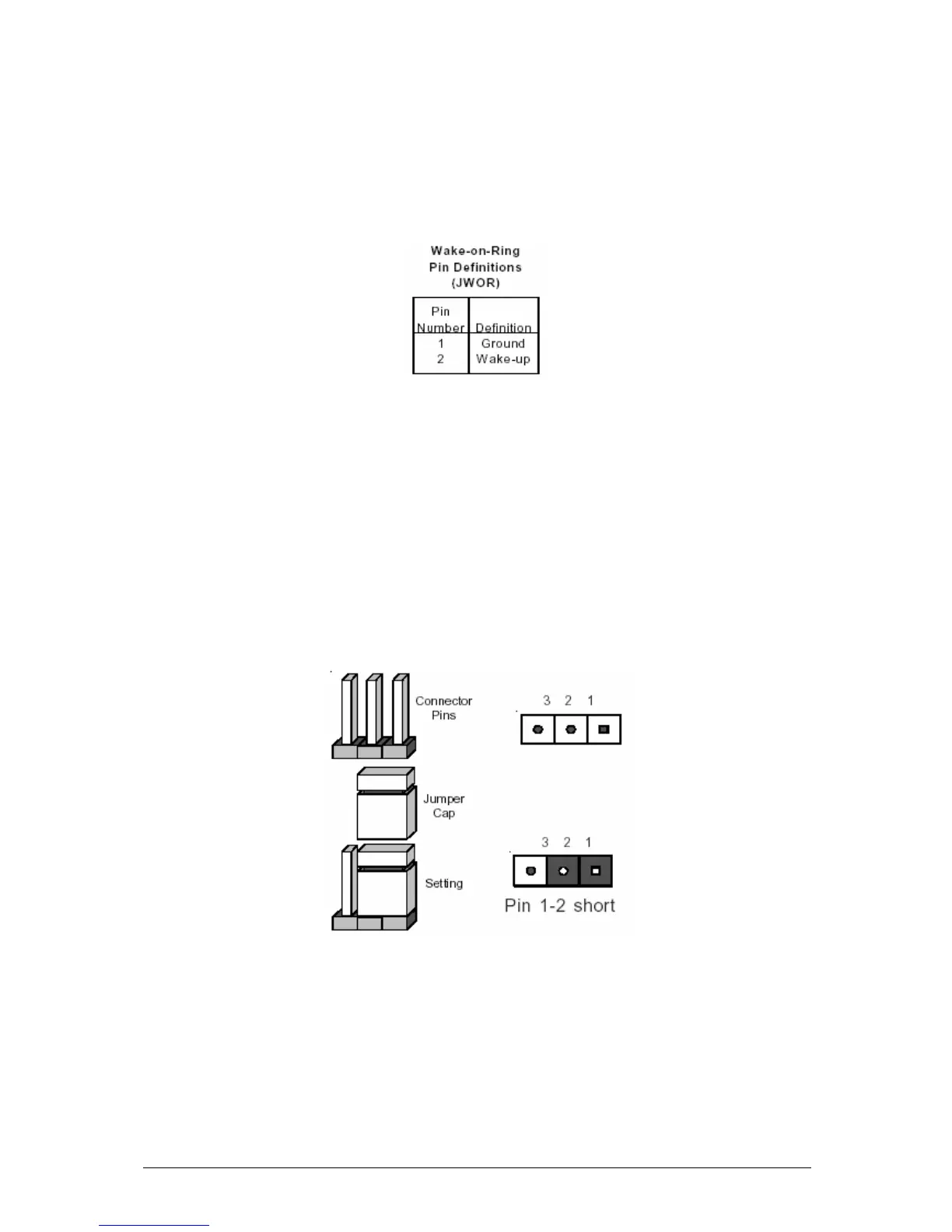

See the table on the right for pin definitions. You must have a Wake-On-Ring card
and cable to use this feature.
Jumper Settings
Explanation of Jumpers
To modify the operation of the Motherboard, jumpers can be used to choose
between optional settings. Jumpers create shorts between two pins to change the
function of the connector. Pin 1 is identified with a square solder pad on the printed
circuit board. See the Motherboard layout pages for jumper locations.
Note: On two pin jumpers, "Closed" means the jumper is on and "Open"
means the jumper is off the pins.
Figure 19: Explanation of Jumpers
