Viglen BX130 - System Board Components; Chassis Overview

Viglen BX130 – VIG385P User Manual
6
System Board Components

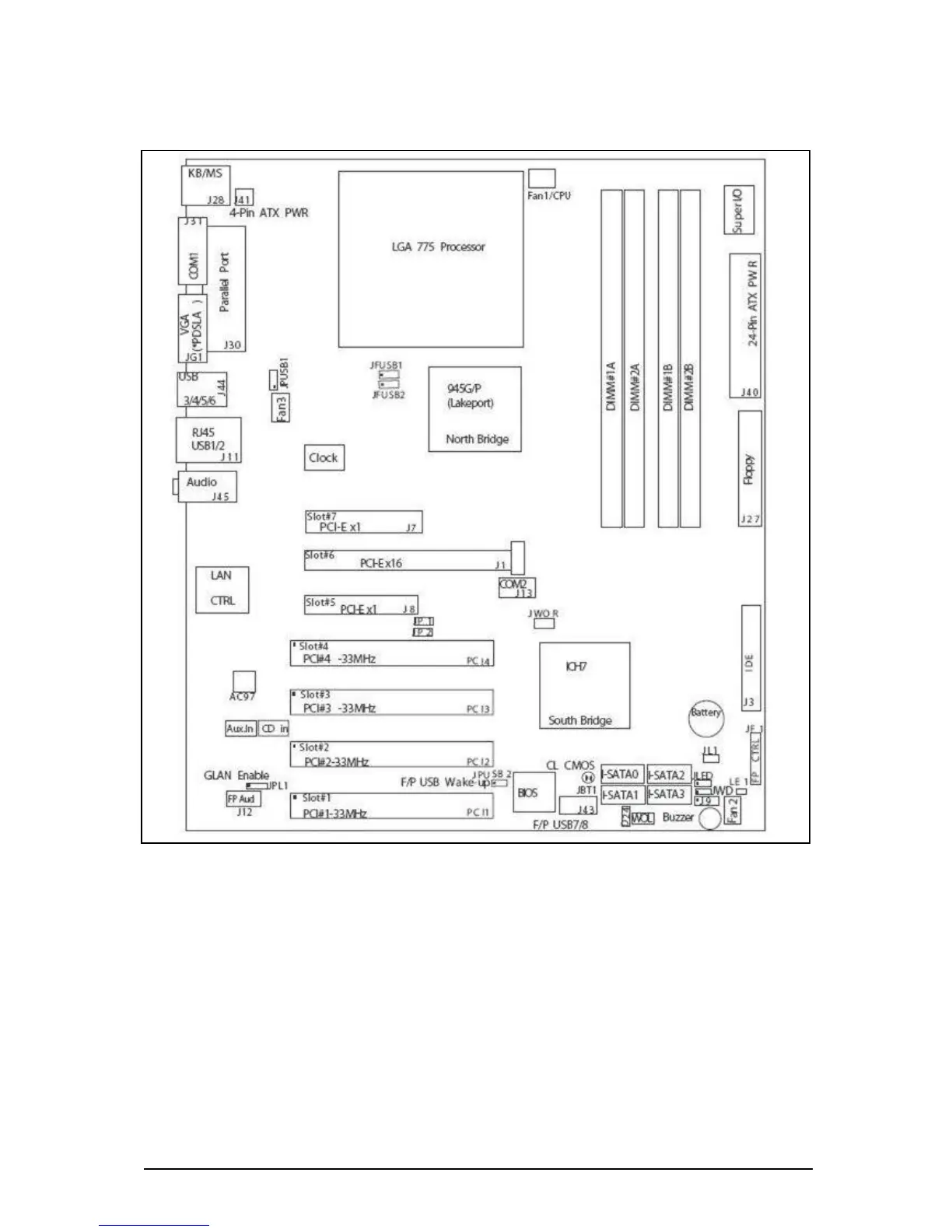

Figure 1: System Board Components
Chassis Overview
The galvanised metal chassis minimises EMI and radio frequency interference (RFI).
The removable access cover is attached to the chassis with two screws (can be
secured with locking handle) and provides easy access to the VIG385P Motherboard
and power supply.
